A Beginner’s Guide to Golf Cart Harnesses and Programmers

You are fitting a Navitas controller, replacing a damaged harness, adding speed dials by the seat or looking for more speed from an old E-Z-GO, and every listing seems to say “check your cart first.” Here is the 30-second answer on choosing a golf cart harness: read the stock controller label, count the plug pins on a Yamaha and check the throttle on a series cart, then find that row. If the cart is stock, the complete kit is usually the better buy; the harness on its own is for a controller you already own or a harness that was damaged. Programmers, AC cables and J2 connectors each have their own section.

What This Guide Helps You Do

Harnesses and programmers are the parts that connect everything else. A Navitas controller cannot talk to a stock cart without the right harness, an AC motor cannot report its speed without the right cable, and a driver cannot change speed from the seat without a programmer. Each one is built for one wiring system, so the part that fits is decided by what is under your seat, not by the badge on the front.

This guide covers every harness, connector module, cable and programmer we sell, and tells you when you need each one. Have these three facts ready:

1. What is on the cart now. Lift the seat and read the controller label. A stock unit reads Curtis 1206HB, 1206MX, 1206SX, 1510, 1515, 1268, 1520, Moric or Sevcon. A Navitas unit reads TSX 3.0, TAC2 or TAC3 with a 10-000XXX-XX number.
2. The plug or the throttle. On a Yamaha, count the pins on the controller connector, 23 or 26. On a series motor cart (motor terminals A1, A2, S1 and S2), note whether the throttle is the E-Z-GO ITS sensor or another type.
3. The pack voltage. Count the batteries and multiply by the voltage on each one. Six 6V batteries make 36V; six 8V or four 12V make 48V.

Then jump to your cart or part:

• E-Z-GO TXT, PDS and DCS
• E-Z-GO ITS 48V utility
• Series motor carts
• Club Car and Star EV
• Yamaha G19, G22 and G29
• Columbia ParCar
• OTF programmer
• Navitas AC cables
• E-Z-GO J2 connectors

Every table reads the same way. Your cart is what you found under the seat, with the controller label in bold. Your goal says what you are trying to do. Buy this is the part, Why this one gives the fitment reason, and What else you need flags anything the box does not include. When the same cart has two sensible buys, each gets its own row: the complete kit if you are starting from stock, the harness on its own if you already own the controller or the harness was damaged.

Quick Picks: The Harnesses and Programmers We Are Asked For Most

Know what you need already? Here are the most common answers. The sections further down give the reasoning and every other option.

Golf Cart Harness and Programmer Types: Four Kinds of Part

Everything in this category does one of four jobs. Knowing which job you need done narrows the choice to a handful of parts before you look at your cart.

Most people in this category are really buying a TSX 3.0 controller swap, and for them the complete kit is the simpler order: it holds the same harness plus the controller and a programmer. The harness on its own is for three people: someone who already owns a TSX 3.0 controller, someone replacing a harness that was cut, crushed or burnt, and someone building a setup from separate parts. If your cart is stock and you are deciding between controllers, the controller replacement guide and the conversion kit guide walk those choices cart by cart. The replacement controller finder and the AC conversion kit finder do the same from your serial number or model.

Alltrax XCT adapters and AC1 sensor cables

The Curtis 1264 and 1268 adapters and FN-KEY belong to the older Alltrax XCT family. The cart-specific motor sensor cables belong to an Alltrax AC1 system. Do not cross those two families.

Parts note: One module for series motor carts from Club Car, E-Z-GO and Yamaha with a non-ITS throttle: the TSX 3.0 non-ITS connector module. See the non-ITS module

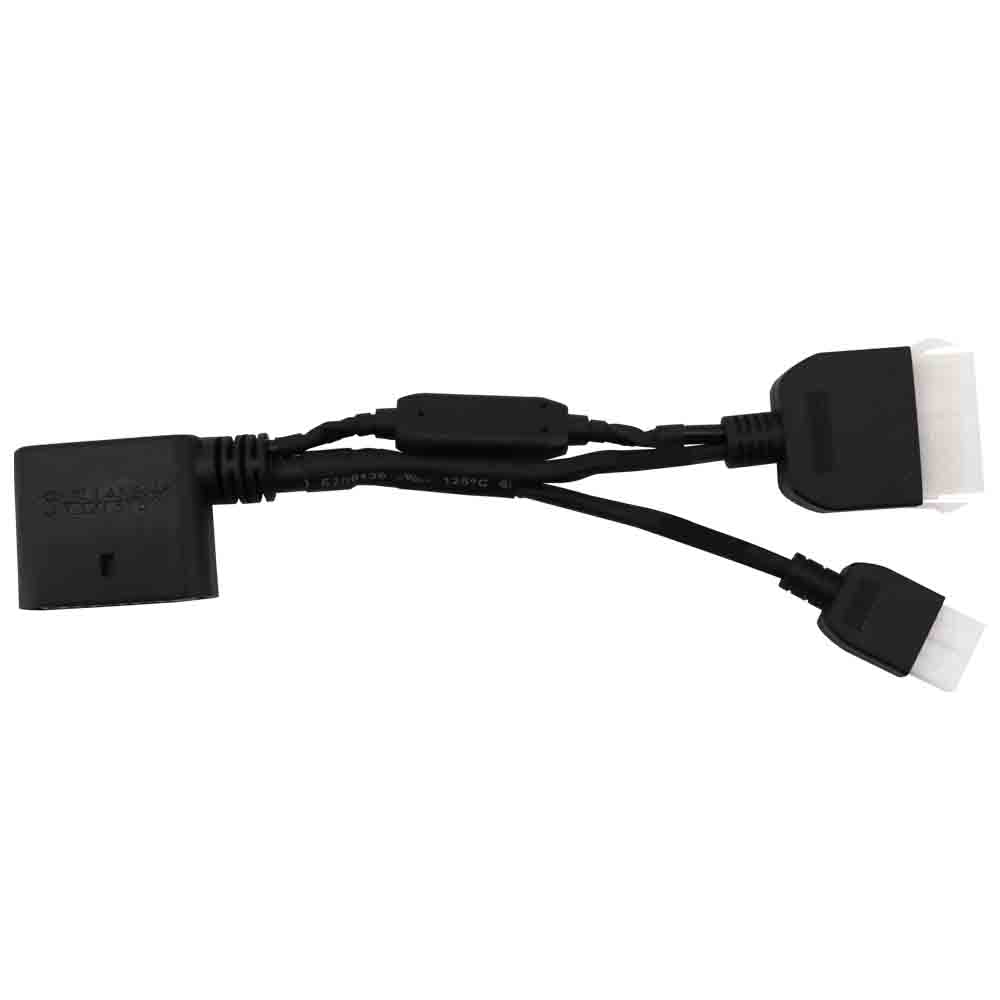

E-Z-GO TXT 48V, PDS and DCS

If your TXT is stock, the controller label picks the harness. A 48V TXT has a Curtis 1206HB. A PDS cart has a Curtis 1206MX, at 36V or 48V. A 36V DCS cart has a Curtis 1206SX with a 9 pin plug. PDS and DCS carts look alike, so rely on the label, not the body.

A TXT ELiTE with the factory Samsung lithium pack has a Curtis 1206HBC, and none of these harnesses fit it; its only route in our range is the AC kit in the controller guide. A 2000 to 2008 36V PDS cart can also take a J2 connector instead of a new controller; see the J2 section.

For TXT symptoms before you buy anything, read TXT no power but the solenoid clicks and TXT won’t go forward.

E-Z-GO ITS 48V: MPT, Workhorse and Utility Carts

If your 48V E-Z-GO work cart has a stock Curtis 1268 ITS or 1264, as on the MPT and Textron utility models, it takes its own harness, different from the TXT one. Series motor E-Z-GOs with other series controllers use a connector module instead; they are in the next section.

The pedal sensor test covers the ITS throttle if the cart is hesitating rather than dead.

Series Motor Carts: ITS and Non-ITS Connector Modules

If your cart has a series wound motor, the motor has four terminals marked A1, A2, S1 and S2 and no F1 or F2. These carts use a connector module harness rather than a vehicle harness, and the throttle decides which one. E-Z-GO series carts with the ITS throttle sensor take the ITS module. Series carts from Club Car, E-Z-GO and Yamaha with any other throttle take the non-ITS module. Both work at 36V or 48V.

One throttle is not covered: a 2 wire V-glide throttle needs an extra Navitas non-ITS adapter, which we do not sell, so a V-glide cart has no complete setup in our range. The Yamaha G14 and G16 use their own harness set, sold only inside the TSX 3.0 kit for Yamaha G14 and G16.

Not sure which motor you have? The series vs sepex guide shows how to tell them apart from the terminals.

Club Car and Star EV: IQ, Excel, 1268 and 1520

If your Club Car is stock, there are two harnesses and the controller label chooses. A DS or Precedent on the IQ or Excel system has a Curtis 1510 or 1515. Carryall, Villager and other carts with a Curtis 1268 or 1520 take the second harness, which also fits 48V Star EV carts with the same controllers. The two are not interchangeable.

A Club Car with the Regen II system has no TSX harness in our range; its route is an AC kit, covered in the controller guide. The 36V Star EV Classic uses its own harness, sold only in the kit below.

Our Navitas Club Car fitment guide shows where each label sits on the DS and Precedent.

Yamaha G19, G22 and G29 Drive

If your Yamaha is stock and electric, count the pins on the controller plug. 23 pins is a G19 or G22. 26 pins in two rows is the Moric controller on a G29 Drive or Drive2 DC. A Drive2 AC already has an AC motor and no TSX harness fits it; the controller guide covers its kit. The G14 and G16 harness set comes only in the G14 and G16 kit.

For Yamaha symptoms, read G29 won’t go forward or reverse and G29 surging and hesitation.

Columbia ParCar 48V with Sevcon Control

If your ParCar is a 48V cart with a stock Sevcon controller and a shunt motor, it takes the ParCar harness. A shunt motor has separate F1 and F2 field wires running to the old controller. The harness plugs into the cart’s 16 pin OEM connector at one end and the TSX 3.0 at the other, and it has an 8 pin port for the optional OTF programmer. ParCars with a series wound motor, AC ParCars and 24V or 36V ParCars are not covered by anything we sell.

On the ParCar install, the motor cable on battery negative and A2 is cut and re-terminated with the supplied ring terminal. If the cart drives backwards afterwards, swap F1 and F2.

The Navitas On-The-Fly Programmer

If your cart runs a Navitas TSX 3.0 or TAC2, the On-The-Fly programmer puts three dials by the seat. Speed sets the top speed, and Navitas notes that a lower setting stretches range. Regen sets regenerative braking where the controller supports it. Acceleration sets how hard it pulls away. A key lock freezes the dials and a status light gives fault feedback. Navitas also uses the OTF to switch a TSX between series and shunt motor setups.

Every TSX 3.0 kit and most TAC2 conversion kits already include one. You need to buy it when your kit or controller came without it, or to replace a lost or broken unit. It does not fit stock controllers. The Navitas TAC3 is set up in the Navitas app, and our OTF listing is for TSX 3.0 and TAC2 controllers only.

The controller amp calculator helps if you are still deciding which Navitas controller the programmer will sit on.

Navitas AC Cables: Phase Wire and Motor Adapter

If your cart runs a Navitas TAC2 or TAC3 with a Navitas AC motor, two cables join them. The phase wire carries the drive current. The TAC motor adapter (Navitas 40-000580) carries the speed sensor and motor temperature signals; the Navitas TAC2 manual lists it in the Club Car IQ and E-Z-GO TXT kits with the 4kW and 5kW motors. It is also required, and sold separately, whenever a Navitas 7.5kW motor is fitted to a TAC3 controller. Neither cable fits a DC motor or a non-Navitas AC system.

If a motor fault code pointed you here, prove whether the cable or the motor is at fault first with the tests in the motor replacement guide.

E-Z-GO PDS 36V: J2 Performance Connectors

If your E-Z-GO is a 2000 to 2008 36V cart with the PDS controller, the controller has a J2 option port, and a factory plug in that port sets its speed and braking profile. It is the cheapest way to change how a PDS cart drives, because nothing else changes. All four connectors install the same way; only the profile differs. They do not fit DCS, series or 48V carts, or any controller without the J2 port.

Compression braking is the controller holding the cart back as it rolls downhill. Heavier braking suits steep ground; none leaves descents to the brake pedal.

Want more than a profile change on a PDS cart? The TSX 3.0 PDS kit in the TXT section replaces the controller, and the TXT speed and hill guide compares the routes.

Choosing the Profile, the Rating and the Controls

Most parts here have one right answer for your cart. Three choices are left to you, and this is how we would make them.

A faster setting asks more of the pack and cables. The controller upgrade guide explains amps, solenoids and cable sizes.

Parts note: More speed on a 2000 to 2008 36V E-Z-GO PDS: the Freedom red J2 connector plugs in with no programming. See the Freedom connector

What Else to Check and Order to Finish the Job

A harness only works as well as what it connects. Put these right while the seat is up.

• The controller the harness is for. A TSX 3.0 harness needs a TSX 3.0 440A or TSX 3.0 600A controller. Every TSX harness in this guide is for the TSX 3.0 only.
• Whatever damaged the old harness. A harness that melted near a terminal usually had a loose lug next to it. Check every connection for heat marks before you fit the new one.
• Clean, tight power cables. The wire gauge calculator sizes them for your controller.
• A phone with the Navitas app. Navitas controllers are set up in the app, with or without an OTF programmer.
• Tidy routing. Keep every harness away from sharp edges, battery terminals and moving parts, and tie it down so water cannot sit in the connectors.
• Controllers and kits. Complete kits are in conversion kits and bare units in controllers.

New display, conversion and service harnesses

These parts solve different jobs. The CAN display patch harness is required with the 3-inch display except on Navitas Chassis vehicles. The RXV resistor wiring is for the 23-pin route. The STAR EV 1243 and E-Z-GO PDS conversion harnesses stay cart-specific. The two-wire adapter works only with harness 87-10000666 on the documented non-ITS and non-MCOR routes. OTF keys do not include the programmer.

• Navitas CAN Display Patch Harness
• Navitas Wiring for RXV 23-Pin Resistor
• Navitas TSX3 Harness for STAR EV 1243
• Navitas E-Z-GO PDS 36V-to-48V DC/AC Conversion Harness
• Navitas Two-Wire Throttle Adapter for Non-ITS/Non-MCOR
• Navitas Vehicle Harness 87-40002059
• Navitas On-The-Fly Programmer Replacement Keys, Pair

CAN displays and 12V power

A Navitas CAN display reads vehicle speed, direction and battery charge from a CAN-enabled Navitas TAC controller and a CAN-capable battery. The 3-inch round display needs the CAN display patch harness above on every cart except Navitas Chassis vehicles. The 10-inch touchscreen adds entertainment and connectivity features; a CAN-enabled TAC controller upgrade may be needed first, so send us your controller label and we will tell you. For 12V accessories on a 36V to 80V pack, the DC-DC converter steps pack voltage down to a steady 12V.

• Navitas 3-Inch Round CAN Display
• Navitas 10-Inch CAN LCD Touchscreen Display
• Remanufactured Sevcon 36V-80V to 12V 300W DC-DC Converter

Six Mistakes With Harnesses and Programmers

1. Buying the harness and controller separately on a stock cart. The kit is the same harness plus the controller and a programmer in one order.
2. Matching the cart name instead of the label. One Club Car can have a 1510, 1515, 1268 or 1520, and each has its own harness.
3. Counting the wrong Yamaha pins. 23 pins is a G19 or G22, 26 pins is a G29. The two harnesses do not swap.
4. Putting a TSX harness on a TAC2. TSX harnesses are for the DC TSX 3.0 controller only.
5. Expecting an OTF to run a stock controller. It works only with Navitas TSX 3.0 and TAC2 controllers.
6. Ordering a J2 connector for a 48V or DCS cart. J2 connectors fit 2000 to 2008 36V PDS controllers only.

Still Not Sure? Three Quick Checks

Torn between two rows? One of these decides it:

1. Read the controller label in good light. Wipe it with a dry cloth and photograph it with the flash on, then zoom in. The Curtis, Moric, Sevcon or Navitas number always wins over the year or the body style.
2. Check the plug and the motor. Count Yamaha pins, 23 or 26. Look at the motor terminals: A1, A2, S1 and S2 means series; F1 and F2 means shunt or sepex.
3. Count the batteries. The pack voltage rules out every harness built for the other voltage, which usually leaves one row.

If the label is gone, run the serial through the E-Z-GO, Club Car or Yamaha lookup. The model and year point you to the right section, and the plug then picks the row.

Frequently Asked Questions

Updated September 2026: every row was checked against our live product data and each part is keyed to its controller label, plug, throttle or system.
