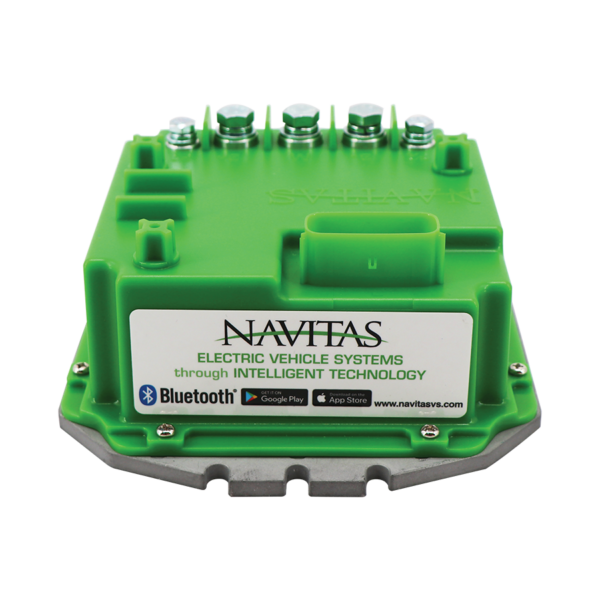

Navitas TSX 3.0 440A DC Controller with Bluetooth, 36V to 48V (Controller Only)
- Controller only: needs the Navitas TSX 3.0 vehicle harness for your cart
- Navitas TSX 3.0 440A controller with Bluetooth app programming and diagnostics
- Controller only: the vehicle harness and On-The-Fly programmer are sold separately
Controller only$669.00
Express checkout options available at checkout
Not sure it fits? Find the controller that fits your cart in the Replacement Controller Finder.
- 24 months warranty
- Free ground shipping over $199, lower 48. No sales tax.
- 30 day returns
- Email support
Overview
This is the Navitas TSX 3.0 440A controller on its own, without a harness or programmer. It is the right choice when you already have the vehicle harness for your cart, when you are replacing a TSX 3.0 controller, or when you are building a setup around a harness bought separately.
The TSX 3.0 runs on 36V and 48V DC golf carts and connects to the vehicle through a cart specific Navitas harness or connector module. Bluetooth is built in, so settings and live diagnostics are available in the Navitas app, and the On-The-Fly programmer can be added for adjustments from the seat.
If you are starting from a stock cart, a complete TSX 3.0 kit for your model already includes the harness and programmer and is usually the simpler way to buy.
- Voltage
- 36V to 48V
- Controller
- 440A
- Bluetooth app
- Built in
Compatibility
Fits
- Club Car IQ and Excel, 1268/1520 and series carts
- Stock controller
- Curtis 1510/1515, 1268/1520 or series
- Voltage
- 48V (36V series)
- Years
- With the matching TSX harness
Harness sold separately
- E-Z-GO TXT 48V, PDS, DCS, ITS and series carts
- Stock controller
- Curtis 1206HB, 1206MX, 1206SX, 1268/1264 ITS or series
- Voltage
- 36V or 48V
- Years
- With the matching TSX harness
Harness sold separately
- Yamaha G19, G22 and G29 Drive (DC)
- Stock controller
- 23 pin or 26 pin Moric
- Voltage
- 48V
- Years
- With the matching TSX harness
Harness sold separately
- Star EV 48V carts with Curtis 1268/1520 control
- Stock controller
- Curtis 1268 or 1520
- Voltage
- 48V
- Years
- With the matching TSX harness
Harness sold separately
Does not fit
- Any cart without the matching Navitas TSX 3.0 vehicle harness or connector module
- AC drive carts (use a Navitas TAC2 controller kit)
- Carts above 48V
Not listed here? Contact us to verify fitment before you order. support@golfcartlab.com
How to confirm it fits
Identify your stock controller from its label, then choose the TSX 3.0 harness for that controller.
Check the system voltage is 36V or 48V.
Not sure which harness you need? Send us a photo of the controller label.
Buying guide: A Beginner’s Guide to Replacing a Failed Golf Cart Controller
What's in the box
- Navitas TSX 3.0 440A DC controller with Bluetooth
Completes the install
Needed: pick one
This controller ships without a harness and will not run without one. Pick the harness for your cart.
- Navitas TSX 3.0 Vehicle Harness for Club Car IQ and Excel (Curtis 1510/1515)$139.00
- Navitas TSX 3.0 Vehicle Harness for Club Car and Star EV (Curtis 1268/1520)$139.00
- Navitas TSX 3.0 Vehicle Harness for E-Z-GO DCS 36V (Curtis 1206SX 9 Pin)$139.00
- Navitas TSX 3.0 Vehicle Harness for E-Z-GO ITS 48V (Curtis 1268/1264)$139.00
- Navitas TSX 3.0 Vehicle Harness for E-Z-GO PDS (Curtis 1206MX)$139.00
- Navitas TSX 3.0 Vehicle Harness for E-Z-GO TXT 48V (Curtis 1206HB)$139.00
- Navitas TSX 3.0 Vehicle Harness for Yamaha G19 and G22 (23 Pin)$139.00
- Navitas TSX 3.0 Vehicle Harness for Yamaha G29 Drive (26 Pin Moric)$139.00
- Navitas TSX 3.0 Connector Module Harness for Non-ITS Series Carts (Club Car, E-Z-GO, Yamaha)$139.00
- Navitas TSX 3.0 Connector Module Harness for E-Z-GO Series ITS Carts$139.00
- Navitas TSX 3.0 Vehicle Harness for Columbia ParCar 48V (Sevcon)$104.00
Specifications
- Brand
- Navitas
- Manufacturer part number
- 10-000766
- Controller
- Navitas TSX 3.0 DC controller with Bluetooth
- Rated controller current
- 440A
- System voltage
- 36V to 48V
- Motor
- DC golf cart motors via the matching TSX harness
- Vehicle harness
- Not included
- On-The-Fly programmer
- Not included
- Bluetooth app programming
- Yes, Navitas app
- Condition
- New
- Warranty
- 24 months from ship date
Shipping weight and box dimensions are confirmed before dispatch.
Requirements and install notes
The controller needs a Navitas TSX 3.0 vehicle harness or connector module for your cart. Neither is included here.
The On-The-Fly programmer is not included and can be added separately.
Disconnect the battery pack and discharge the old controller before you touch any terminal. Follow the Navitas TSX 3.0 manual step by step.
Check the main battery cables, terminals and solenoid before installation.
If you are not comfortable working on a 36V or 48V traction system, have the controller installed by a qualified golf cart technician.
Controller only: the vehicle harness and On-The-Fly programmer are sold separately.
Other options
Other ratings of this controller.
- Navitas TSX 3.0 600A DC Controller with Bluetooth, 36V to 48V (Controller Only)
The same TSX 3.0 controller rated 600A instead of 440A. It uses the same harnesses.
$839.00View
Warranty
Navitas TSX 3.0 controllers carry a 24 month warranty from the ship date, handled by us. Proof of purchase is required. Labour, damage from incorrect installation, wrong voltage, overload and non-OEM part substitution are not covered. See our returns and refunds policy for the full process.
Manufacturer part reference
- Manufacturer part number
- 10-000766
- GCL SKU
- 87-10000766
