Navitas TSX 3.0 Vehicle Harness for Columbia ParCar 48V (Sevcon)
- Navitas TSX 3.0 harness for 48V Columbia ParCar carts with the stock Sevcon controller and shunt motor
- Plugs into the 16-pin OEM connector, with an 8-pin port for the optional OTF programmer
- TSX 3.0 controller sold separately; confirm the Sevcon controller label before ordering
Express checkout options available at checkout
Not sure it fits? Send us a photo of your cart and we will check. Buying guide: A Beginner’s Guide to Golf Cart Harnesses and Programmers
- Not published warranty
- Free ground shipping over $199, lower 48. No sales tax.
- 30 day returns
- Email support
Overview

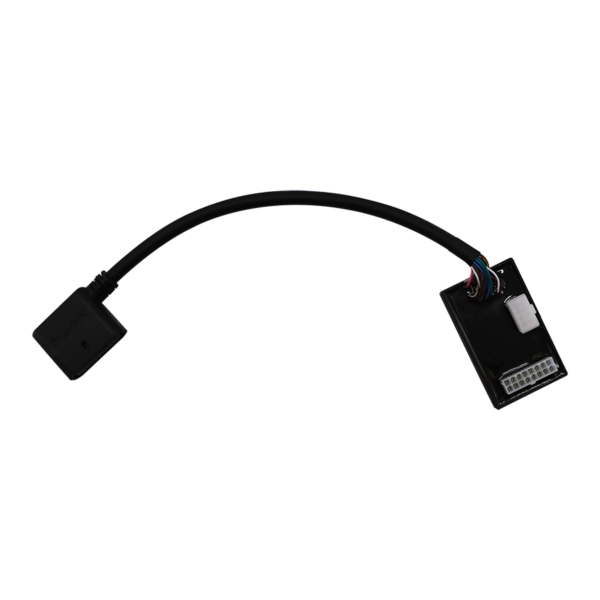

This Navitas vehicle harness (Navitas part number 40-000592) connects a Navitas TSX 3.0 DC controller to a 48V Columbia ParCar that came with a Sevcon controller. One end plugs into the cart's 16-pin OEM connector, the other into the TSX 3.0's 20-pin connector, and an 8-pin port takes the optional Navitas On-The-Fly programmer.
Navitas's ParCar installation manual pairs this harness with the TSX DC shunt controller: the motor's two field wires run to the controller's own F1 and F2 terminals. It is for ParCar carts with a shunt (separately excited) DC motor, and it is built for the ParCar's negative logic control inputs. The TSX 3.0 controller is sold separately.
- Voltage
- 48V
Compatibility
Fits
- Columbia ParCar with shunt DC motor
- Stock controller
- Sevcon
- Voltage
- 48V
- Years
- Identify by controller label
Negative logic; TSX 3.0 controller sold separately
Does not fit
- AC-motor Columbia vehicles
- Columbia ParCar carts with a series-wound motor
- Non-Columbia vehicles
Not listed here? Contact us to verify fitment before you order. support@golfcartlab.com
How to confirm it fits
Confirm the cart is a 48V Columbia ParCar.
Check the stock controller label reads Sevcon.
Confirm the old controller has separate F1 and F2 field terminals wired to the motor. That is a shunt motor.
Pair it with a Navitas TSX 3.0 DC controller, 440A or 600A.
What's in the box
- One Navitas TSX 3.0 vehicle harness for Columbia ParCar with Sevcon control, part number 40-000592
- Ring terminal for re-terminating the motor cable during the install
Completes the install
Needed: pick one
This harness connects a Navitas TSX 3.0 controller to your cart. You need one of these unless you already have a TSX 3.0 fitted.
Specifications
- Brand
- Navitas
- Manufacturer part number
- 40-000592 (SKU 87-40000592)
- Product type
- TSX 3.0 vehicle harness
- Vehicle connector
- 16-pin OEM connector
- Controller connector
- 20-pin TSX connector
- Programmer port
- 8-pin, for the optional On-The-Fly programmer
- Control logic
- Negative logic (forward, reverse, foot switch and charger interlock switch to negative)
- System voltage
- 48V
- Motor type
- Shunt (separately excited) DC
- Condition
- New
- Warranty
- Not published; contact us to confirm
Package weight and dimensions are confirmed before dispatch.
Requirements and install notes
Place the vehicle in tow or service mode and isolate the battery pack.
Photograph the old controller's terminals and wires before you remove it, and keep each group of wires together.
The cable crimped to battery negative and motor A2 is cut and re-terminated with the supplied ring terminal. The original ring terminals may need drilling out to 5/16 in to fit the new controller.
Field wires: motor F1/S1 goes to controller F2 and motor F2/S2 goes to controller F1. If the cart drives backwards, swap F1 and F2.
Torque: F1 and F2 (6 mm bolt) 60 in-lbs / 6.8 Nm; B-, M and B+ (8 mm bolt) 150 in-lbs / 16.9 Nm.
Plug the 20-pin connector into the controller and the 16-pin connector into the OEM harness, then secure the harness with zip ties so water and debris cannot collect in the connectors.
Warranty
Warranty terms are not published for this harness. Contact us before ordering if warranty coverage is material to your purchase.
Manufacturer part reference
- Manufacturer part number
- 87-40000592
- GCL SKU
- 87-40000592
