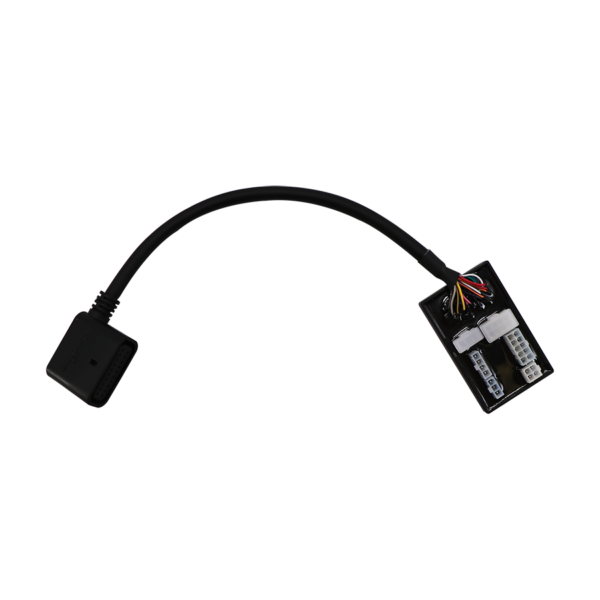

Navitas TSX 3.0 Vehicle Harness for E-Z-GO PDS (Curtis 1206MX)
- Connects a Navitas TSX 3.0 controller to E-Z-GO PDS wiring (Curtis 1206MX)
- Requires a Navitas TSX 3.0 controller (sold separately)
- Does not fit: E-Z-GO DCS carts (Curtis 1206SX 9 pin)
Express checkout options available at checkout
Not sure it fits? Send us a photo of your cart and we will check. Buying guide: A Beginner’s Guide to Golf Cart Harnesses and Programmers
- 12 months warranty
- Free ground shipping over $199, lower 48. No sales tax.
- 30 day returns
- Email support
Overview
This harness connects a Navitas TSX 3.0 controller to the wiring of an E-Z-GO TXT with PDS drive, the cart that came with a Curtis 1206MX controller.
Buy it separately when you already have a TSX 3.0 controller or need a replacement harness. The E-Z-GO PDS TSX 3.0 kit includes it for upgrades from stock.
- Voltage
- 36V or 48V
Compatibility
Fits
- E-Z-GO TXT with PDS drive
- Stock controller
- Curtis 1206MX
- Voltage
- 36V or 48V
- Years
- Identify by controller
Requires a Navitas TSX 3.0 controller
Does not fit
- E-Z-GO DCS carts (Curtis 1206SX 9 pin)
- 48V E-Z-GO TXT with Curtis 1206HB
- Navitas TAC2 AC controllers
Not listed here? Contact us to verify fitment before you order. support@golfcartlab.com
How to confirm it fits
Read the stock controller label: Curtis 1206MX.
PDS and DCS carts look alike, so rely on the label.
Send us a photo of the label if unsure.
What's in the box
- Navitas TSX 3.0 Vehicle Harness for E-Z-GO PDS
Completes the install
Needed: pick one
This harness connects a Navitas TSX 3.0 controller to your cart. You need one of these unless you already have a TSX 3.0 fitted.
Specifications
- Brand
- Navitas
- Manufacturer part number
- Not published
- Part type
- Vehicle harness
- Works with
- Navitas TSX 3.0 controllers (440A or 600A)
- Cart wiring
- Curtis 1206MX
- System voltage
- 36V or 48V
- Controller included
- No
- Condition
- New
- Warranty
- 12 months from ship date
Shipping weight and box dimensions are confirmed before dispatch.
Requirements and install notes
This harness connects a Navitas TSX 3.0 controller to the cart wiring. The controller and On-The-Fly programmer are not included.
Disconnect the battery pack before unplugging or connecting any harness, and follow the Navitas TSX 3.0 manual.
Route the harness away from sharp edges, battery terminals and moving parts, and secure it with ties.
If you are not comfortable working on a traction system, have it installed by a qualified golf cart technician.
Requires a Navitas TSX 3.0 controller (sold separately).
Other options
Buying the controller as well? The kit already includes this harness.
- Navitas TSX 3.0 Controller Kit for E-Z-GO PDS 36V or 48V (Replaces Curtis 1206MX), 440A or 600A
The kit for this cart: a TSX 3.0 controller (440A or 600A), this harness and the OTF programmer in one box.
From $829.00View
Warranty
This part carries a 12 month warranty from the ship date, handled by us. Proof of purchase is required. Labour, damage from incorrect installation, wrong voltage and overload are not covered. See our returns and refunds policy for the full process.
Manufacturer part reference
- Manufacturer part number
- 40-000512
- GCL SKU
- 87-40000512
