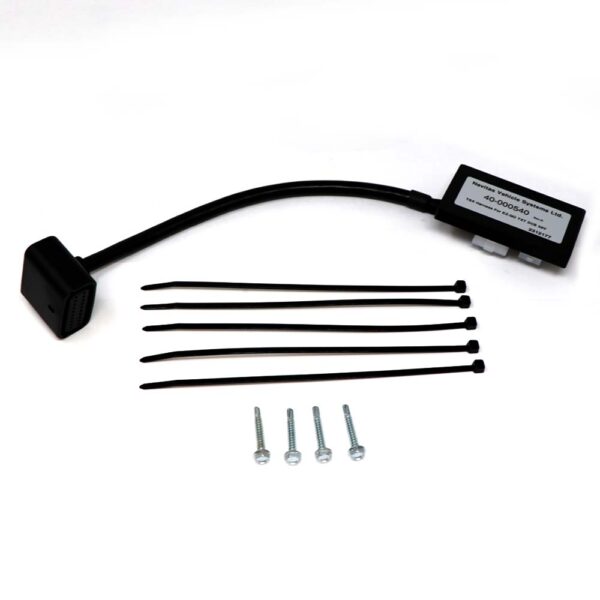

Navitas TSX 3.0 Vehicle Harness for E-Z-GO DCS 36V (Curtis 1206SX 9 Pin)
- Connects a Navitas TSX 3.0 controller to E-Z-GO DCS 36V wiring (Curtis 1206SX 9 pin)
- Requires a Navitas TSX 3.0 controller (sold separately)
- Does not fit: E-Z-GO PDS carts (Curtis 1206MX)
Express checkout options available at checkout
Not sure it fits? Send us a photo of your cart and we will check. Buying guide: A Beginner’s Guide to Golf Cart Harnesses and Programmers
- 12 months warranty
- Free ground shipping over $199, lower 48. No sales tax.
- 30 day returns
- Email support
Overview
This harness connects a Navitas TSX 3.0 controller to the wiring of a 36V E-Z-GO TXT with DCS drive, the cart that came with a Curtis 1206SX 9 pin controller.
Buy it separately if you already own a TSX 3.0 controller or need a replacement. For a first upgrade from stock, the E-Z-GO DCS TSX 3.0 kit includes the matching harness.
- Voltage
- 36V
Compatibility
Fits
- E-Z-GO TXT with DCS drive
- Stock controller
- Curtis 1206SX with 9 pin connector
- Voltage
- 36V
- Years
- Identify by controller
Requires a Navitas TSX 3.0 controller
Does not fit
- E-Z-GO PDS carts (Curtis 1206MX)
- 48V E-Z-GO TXT (Curtis 1206HB)
- Navitas TAC2 AC controllers
Not listed here? Contact us to verify fitment before you order. support@golfcartlab.com
How to confirm it fits
Read the stock controller label: Curtis 1206SX with a 9 pin connector.
Confirm the cart is 36V.
Send us a photo of the label if unsure.
What's in the box
- Navitas TSX 3.0 Vehicle Harness for E-Z-GO DCS 36V
Completes the install
Needed: pick one
This harness connects a Navitas TSX 3.0 controller to your cart. You need one of these unless you already have a TSX 3.0 fitted.
Specifications
- Brand
- Navitas
- Manufacturer part number
- 40-000540
- Part type
- Vehicle harness
- Works with
- Navitas TSX 3.0 controllers (440A or 600A)
- Cart wiring
- Curtis 1206SX (9 pin)
- System voltage
- 36V
- Controller included
- No
- Condition
- New
- Warranty
- 12 months from ship date
Shipping weight and box dimensions are confirmed before dispatch.
Requirements and install notes
This harness connects a Navitas TSX 3.0 controller to the cart wiring. The controller and On-The-Fly programmer are not included.
Disconnect the battery pack before unplugging or connecting any harness, and follow the Navitas TSX 3.0 manual.
Route the harness away from sharp edges, battery terminals and moving parts, and secure it with ties.
If you are not comfortable working on a traction system, have it installed by a qualified golf cart technician.
Requires a Navitas TSX 3.0 controller (sold separately).
Other options
Buying the controller as well? The kit already includes this harness.
- Navitas TSX 3.0 Controller Kit for E-Z-GO DCS 36V (Replaces Curtis 1206SX 9 Pin), 440A or 600A
The kit for this cart: a TSX 3.0 controller (440A or 600A), this harness and the OTF programmer in one box.
From $829.00View
Warranty
This part carries a 12 month warranty from the ship date, handled by us. Proof of purchase is required. Labour, damage from incorrect installation, wrong voltage and overload are not covered. See our returns and refunds policy for the full process.
Manufacturer part reference
- Manufacturer part number
- 40-000540
- GCL SKU
- 87-40000540
