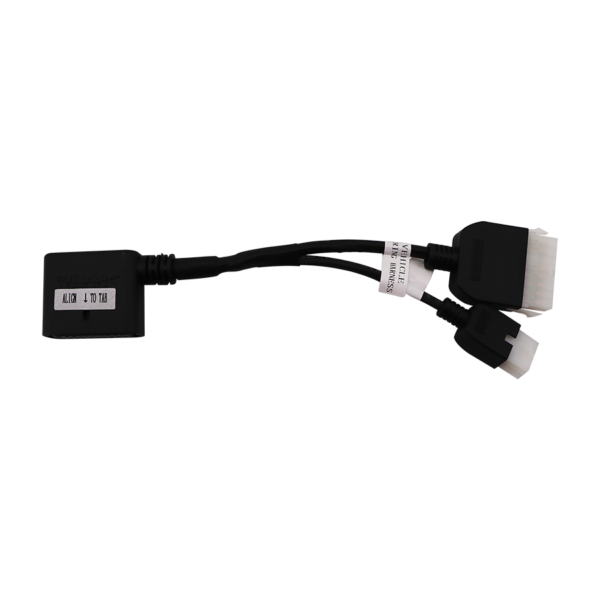

Navitas TSX 3.0 Vehicle Harness for Club Car IQ and Excel (Curtis 1510/1515)
- Connects a Navitas TSX 3.0 controller to Club Car IQ and Excel wiring (Curtis 1510/1515)
- Requires a Navitas TSX 3.0 controller (sold separately)
- Does not fit: Club Car carts with the Regen 2 system
Express checkout options available at checkout
Not sure it fits? Send us a photo of your cart and we will check. Buying guide: A Beginner’s Guide to Golf Cart Harnesses and Programmers
- 12 months warranty
- Free ground shipping over $199, lower 48. No sales tax.
- 30 day returns
- Email support
Overview
This vehicle specific harness connects a Navitas TSX 3.0 controller to the wiring of Club Car carts built on the IQ and Excel systems, the carts that shipped with a Curtis 1510 or 1515 controller.
Buy it on its own when you already have a TSX 3.0 controller, or to replace a damaged harness. If you are upgrading from the stock controller, the complete TSX 3.0 kit for Club Car IQ and Excel already includes this harness.
- Voltage
- 48V
Compatibility
Fits
- Club Car DS and Precedent IQ, Excel system carts
- Stock controller
- Curtis 1510 or 1515
- Voltage
- 48V
- Years
- Identify by controller
Requires a Navitas TSX 3.0 controller
Does not fit
- Club Car carts with the Regen 2 system
- Club Car carts with Curtis 1268 or 1520 control
- Navitas TAC2 AC controllers
Not listed here? Contact us to verify fitment before you order. support@golfcartlab.com
How to confirm it fits
Read the stock controller label: Curtis 1510 or 1515.
Make sure the cart does not have the Regen 2 system.
Send us a photo of the controller label if unsure.
What's in the box
- Navitas TSX 3.0 Vehicle Harness for Club Car IQ and Excel
Completes the install
Needed: pick one
This harness connects a Navitas TSX 3.0 controller to your cart. You need one of these unless you already have a TSX 3.0 fitted.
Specifications
- Brand
- Navitas
- Manufacturer part number
- 40-000542
- Part type
- Vehicle harness
- Works with
- Navitas TSX 3.0 controllers (440A or 600A)
- Cart wiring
- Curtis 1510 or 1515
- System voltage
- 48V
- Controller included
- No
- Condition
- New
- Warranty
- 12 months from ship date
Shipping weight and box dimensions are confirmed before dispatch.
Requirements and install notes
This harness connects a Navitas TSX 3.0 controller to the cart wiring. The controller and On-The-Fly programmer are not included.
Disconnect the battery pack before unplugging or connecting any harness, and follow the Navitas TSX 3.0 manual.
Route the harness away from sharp edges, battery terminals and moving parts, and secure it with ties.
If you are not comfortable working on a traction system, have it installed by a qualified golf cart technician.
Requires a Navitas TSX 3.0 controller (sold separately).
Other options
Buying the controller as well? The kit already includes this harness.
- Navitas TSX 3.0 Controller Kit for Club Car IQ and Excel 48V (Replaces Curtis 1510/1515), 440A or 600A
The kit for this cart: a TSX 3.0 controller (440A or 600A), this harness and the OTF programmer in one box.
From $829.00View
Warranty
This part carries a 12 month warranty from the ship date, handled by us. Proof of purchase is required. Labour, damage from incorrect installation, wrong voltage and overload are not covered. See our returns and refunds policy for the full process.
Manufacturer part reference
- Manufacturer part number
- 40-000542
- GCL SKU
- 87-40000542
