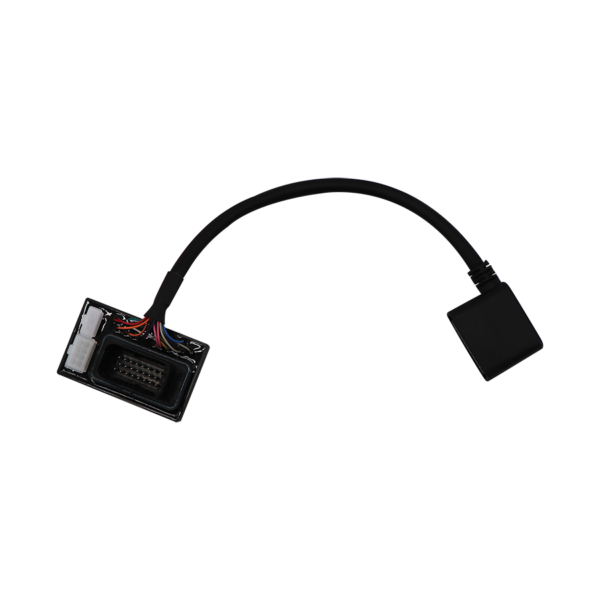

Navitas TSX 3.0 Vehicle Harness for Yamaha G19 and G22 (23 Pin)
- Connects a Navitas TSX 3.0 controller to Yamaha G19 and G22 wiring (23 pin)
- Requires a Navitas TSX 3.0 controller (sold separately)
- Does not fit: Yamaha G29 Drive and Drive2 (26 pin connector)
Express checkout options available at checkout
Not sure it fits? Send us a photo of your cart and we will check. Buying guide: A Beginner’s Guide to Golf Cart Harnesses and Programmers
- 12 months warranty
- Free ground shipping over $199, lower 48. No sales tax.
- 30 day returns
- Email support
Overview
This harness connects a Navitas TSX 3.0 controller to the wiring of an electric Yamaha G19 or G22, the carts with a 23 pin controller connector.
It is sold separately for owners who already have a TSX 3.0 controller or need a replacement. The Yamaha G19 and G22 TSX 3.0 kit includes it for upgrades from stock.
- Voltage
- 48V
Compatibility
Fits
- Yamaha G19 and G22 electric
- Stock controller
- Stock controller with 23 pin connector
- Voltage
- 48V
- Years
- Identify by connector
Requires a Navitas TSX 3.0 controller
Does not fit
- Yamaha G29 Drive and Drive2 (26 pin connector)
- Yamaha G14 and G16
- Navitas TAC2 AC controllers
Not listed here? Contact us to verify fitment before you order. support@golfcartlab.com
How to confirm it fits
Count the pins on the stock controller connector: 23 pins means a G19 or G22.
26 pins means a G29, which uses a different harness.
Send us a photo of the connector if unsure.
What's in the box
- Navitas TSX 3.0 Vehicle Harness for Yamaha G19 and G22
Completes the install
Needed: pick one
This harness connects a Navitas TSX 3.0 controller to your cart. You need one of these unless you already have a TSX 3.0 fitted.
Specifications
- Brand
- Navitas
- Manufacturer part number
- Not published
- Part type
- Vehicle harness
- Works with
- Navitas TSX 3.0 controllers (440A or 600A)
- Cart wiring
- Stock controller with 23 pin connector
- System voltage
- 48V
- Controller included
- No
- Condition
- New
- Warranty
- 12 months from ship date
Shipping weight and box dimensions are confirmed before dispatch.
Requirements and install notes
This harness connects a Navitas TSX 3.0 controller to the cart wiring. The controller and On-The-Fly programmer are not included.
Disconnect the battery pack before unplugging or connecting any harness, and follow the Navitas TSX 3.0 manual.
Route the harness away from sharp edges, battery terminals and moving parts, and secure it with ties.
If you are not comfortable working on a traction system, have it installed by a qualified golf cart technician.
Requires a Navitas TSX 3.0 controller (sold separately).
Other options
Buying the controller as well? The kit already includes this harness.
- Navitas TSX 3.0 Controller Kit for Yamaha G19 and G22 48V, 440A or 600A
The kit for this cart: a TSX 3.0 controller (440A or 600A), this harness and the OTF programmer in one box.
From $829.00View
Warranty
This part carries a 12 month warranty from the ship date, handled by us. Proof of purchase is required. Labour, damage from incorrect installation, wrong voltage and overload are not covered. See our returns and refunds policy for the full process.
Manufacturer part reference
- Manufacturer part number
- 40-000514
- GCL SKU
- 87-40000514
