Navitas TSX 3.0 Controller Kit for E-Z-GO TXT 48V Replaces Curtis 1206HB, 440A or 600A
- Fits 48V E-Z-GO TXT carts with the Curtis 1206HB controller
- Replaces the stock controller and keeps your DC motor, with speed and acceleration adjustable from the seat
- Kit includes the TSX 3.0 controller with Bluetooth, vehicle harness and On-The-Fly programmer; ratings: 440A or 600A
- Does not fit: E-Z-GO TXT ELiTE lithium carts (the matching harness is not compatible)
Complete kitfrom $829.00
Express checkout options available at checkout
Not sure it fits? Find the kit that fits your cart in the AC Conversion Kit Finder.
- 24 months warranty
- Free ground shipping over $199, lower 48. No sales tax.
- 30 day returns
- Email support
Overview
The 48V E-Z-GO TXT uses a Curtis 1206HB controller. This Navitas TSX 3.0 kit replaces it and keeps the cart on its DC motor, giving you more usable power without a full drivetrain conversion.

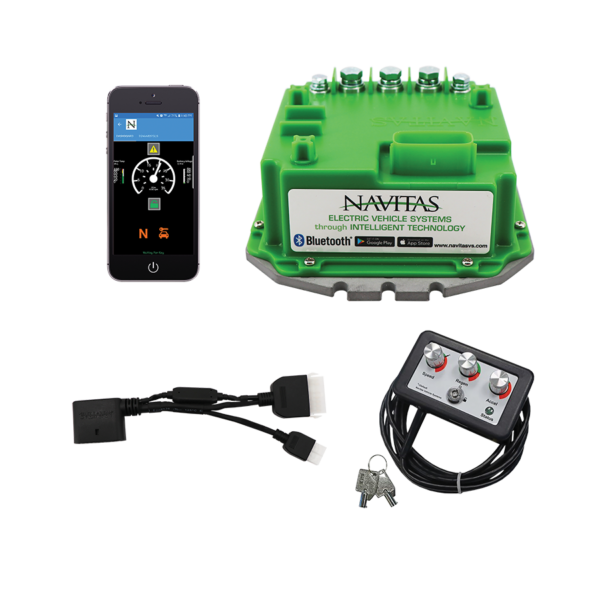

Inside the kit: the TSX 3.0 controller with Bluetooth, a vehicle specific harness for the TXT 48V wiring and the On-The-Fly programmer. Set speed and acceleration from the seat, and use the Navitas app for live diagnostics.
440A gives a clear step up for everyday driving. 600A is the choice for hills, passengers and bigger tires.
- Voltage
- 48V
- Controller
- 440A or 600A
- AC motor
- Uses existing
- Bluetooth app
- Built in
Compatibility
Fits
- E-Z-GO TXT 48V (non ELiTE)
- Stock controller
- Curtis 1206HB
- Voltage
- 48V
- Years
- Identify by controller
Vehicle harness included
Does not fit
- Carts whose controller label reads something other than Curtis 1206HB
- E-Z-GO TXT ELiTE lithium carts (the matching harness is not compatible)
- 36V E-Z-GO TXT DCS or PDS carts
- E-Z-GO RXV and other AC drive carts
- Gas carts
Not listed here? Contact us to verify fitment before you order. support@golfcartlab.com
How to confirm it fits
Read the controller label. A Curtis 1206HB on a 48V TXT means this kit applies.
If your TXT has a factory lithium pack (ELiTE), this kit is not the right one.
Unsure what you have? Send us a photo of the controller label before ordering.
Buying guide: A Beginner’s Guide to Choosing a Golf Cart Conversion Kit
What's in the box
440A
- Navitas TSX 3.0 440A DC controller with Bluetooth
- Vehicle specific harness for E-Z-GO TXT 48V
- On-The-Fly programmer
600A
- Navitas TSX 3.0 600A DC controller with Bluetooth
- Vehicle specific harness for E-Z-GO TXT 48V
- On-The-Fly programmer
Completes the install
Specifications
Compare options
| Specification | 440A | 600A |
|---|---|---|
| Controller part number | 10-000766 | 10-000685 |
| Rated controller current | 440A | 600A |
- Brand
- Navitas
- Controller
- Navitas TSX 3.0 DC controller with Bluetooth
- System voltage
- 48V
- Replaces stock controller
- Curtis 1206HB
- Motor
- Uses the cart's existing DC motor (not included)
- Vehicle harness
- Included
- On-The-Fly programmer
- Included
- Bluetooth app programming
- Yes, Navitas app
- Condition
- New
- Warranty
- 24 months from ship date
Shipping weight and box dimensions are confirmed before dispatch.
Requirements and install notes
This is a controller swap. Your cart keeps its DC motor; the stock controller comes out and the Navitas TSX 3.0 controller goes in with the vehicle harness supplied in the kit.
Disconnect the battery pack and discharge the old controller before you touch any terminal. Photograph the original cable positions first, then follow the Navitas TSX 3.0 manual step by step.
Check the main battery cables, terminals and solenoid before installation. A tired solenoid or undersized cables limit what a higher amp controller can deliver.
The On-The-Fly programmer lets the driver adjust speed and acceleration from the seat, with a key lock to hold the settings. Deeper settings and live diagnostics are in the Navitas app over Bluetooth. Dealer level app access is available to qualified customers only.
If you are not comfortable working on a 36V or 48V traction system, have the kit installed by a qualified golf cart technician.
Other options
Other upgrade paths for the carts this kit fits. Each one names the cart it is listed for.
- Navitas TAC2 DC to AC Conversion Kit for E-Z-GO TXT 48V (Replaces Curtis 1206HB)
DC to AC conversion: TAC2 controller (440A or 600A) and Navitas AC motor. For E-Z-GO TXT 48V (Replaces Curtis 1206HB).
From $2,049.00View - Navitas TAC3 850A 7.5kW DC to AC Conversion Kit for E-Z-GO TXT 48V (Replaces Curtis 1206HB)
DC to AC conversion with the TAC3 850A controller and a 7.5kW AC motor, the highest-rated kit we list for this cart. For E-Z-GO TXT 48V (Replaces Curtis 1206HB).
$2,689.00View
Warranty
Navitas TSX 3.0 controllers carry a 24 month warranty from the ship date, handled by us. Proof of purchase is required. Labour, damage from incorrect installation, wrong voltage, overload and non-OEM part substitution are not covered. See our returns and refunds policy for the full process.
Manufacturer part reference
- Manufacturer part number
- 87-TSX3-600EZTXT
- GCL SKU
- GCL-NAV-TSX-KIT-EZGO-TXT-48V
