Navitas TSX 3.0 Controller Kit for Club Car and Star EV 48V Replaces Curtis 1268/1520, 440A or 600A
- Fits 48V Club Car and Star EV carts with the Curtis 1268 or 1520 controller
- Replaces the stock controller and keeps your DC motor, with speed and acceleration adjustable from the seat
- Kit includes the TSX 3.0 controller with Bluetooth, vehicle harness and On-The-Fly programmer; ratings: 440A or 600A
- Does not fit: Star EV Classic 36V carts (a different harness is required)
Complete kitfrom $842.00
Express checkout options available at checkout
Not sure it fits? Find the kit that fits your cart in the AC Conversion Kit Finder.
- 24 months warranty
- Free ground shipping over $199, lower 48. No sales tax.
- 30 day returns
- Email support
Overview
Some 48V Club Car carts, including utility models such as the Carryall, and many Star EV carts use a Curtis 1268 or 1520 controller. This Navitas TSX 3.0 kit is built to replace exactly that controller while the cart keeps its DC motor.

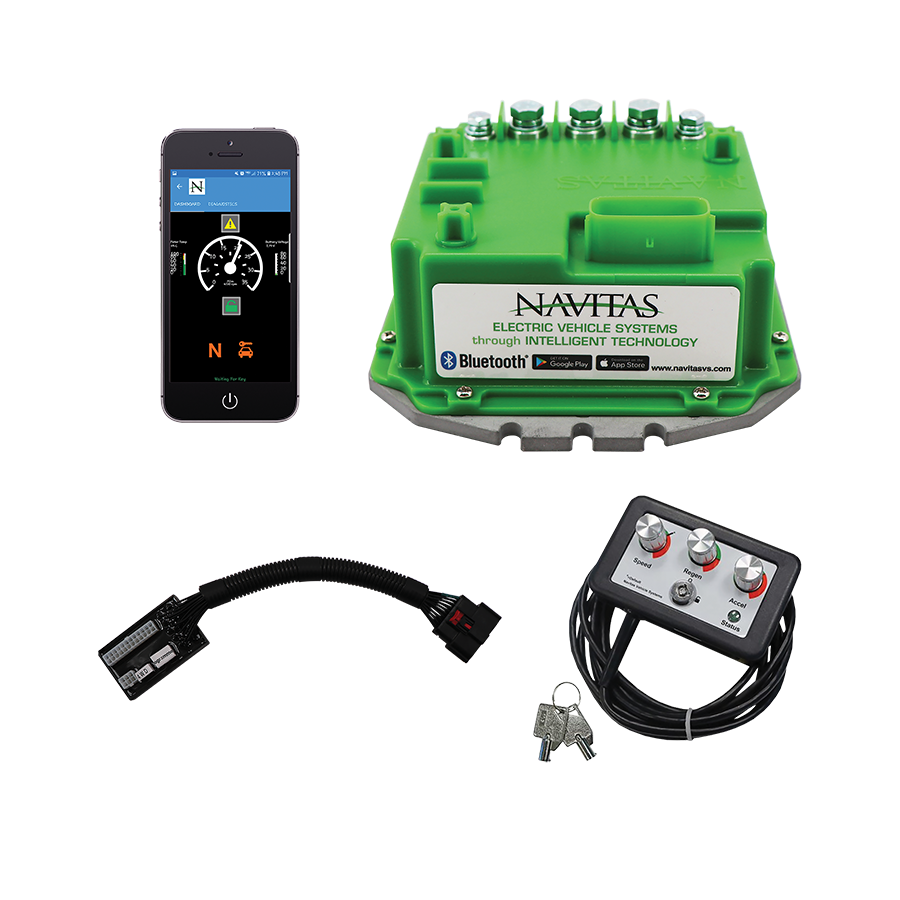

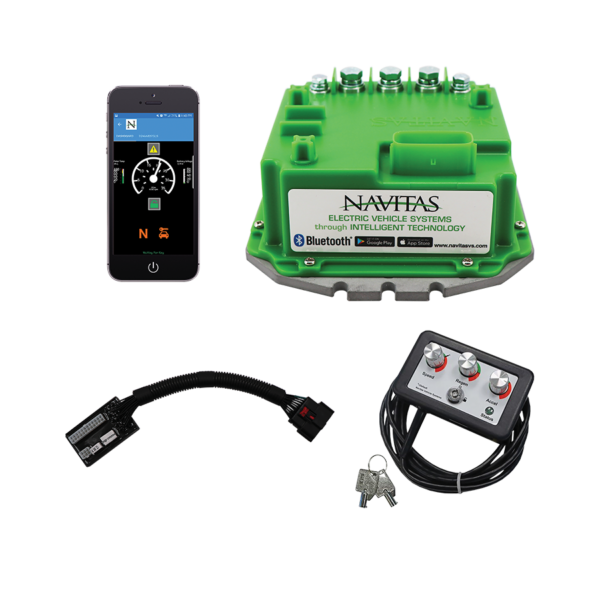

In the box you get the TSX 3.0 controller with Bluetooth, the vehicle specific harness for 1268/1520 wiring, and the On-The-Fly programmer for adjusting speed and acceleration on the go. The Navitas app shows live diagnostics instead of leaving you to guess at a fault.
Pick 440A for a lively daily driver, or 600A for heavier loads, hills and work use.
- Voltage
- 48V
- Controller
- 440A or 600A
- AC motor
- Uses existing
- Bluetooth app
- Built in
Compatibility
Fits
- Club Car Carts with Curtis 1268 or 1520 control (for example Carryall)
- Stock controller
- Curtis 1268 or 1520
- Voltage
- 48V
- Years
- Identify by controller
Vehicle harness included
- Star EV 48V carts with Curtis 1268 or 1520 control
- Stock controller
- Curtis 1268 or 1520
- Voltage
- 48V
- Years
- Identify by controller
Vehicle harness included
Does not fit
- Star EV Classic 36V carts (a different harness is required)
- Club Car IQ or Excel carts with a Curtis 1510 or 1515 controller (use the Club Car IQ and Excel kit)
- E-Z-GO carts with a 1268 or 1264 ITS controller (use the E-Z-GO ITS kit)
- AC drive carts
Not listed here? Contact us to verify fitment before you order. support@golfcartlab.com
How to confirm it fits
Read the controller label. A Curtis 1268 or 1520 part number is what this kit replaces.
Confirm the cart is 48V. Star EV Classic 36V carts need a different harness.
Not sure? Send us a photo of the controller label and the cart serial plate before you order.
Buying guide: A Beginner’s Guide to Choosing a Golf Cart Conversion Kit
What's in the box
440A
- Navitas TSX 3.0 440A DC controller with Bluetooth

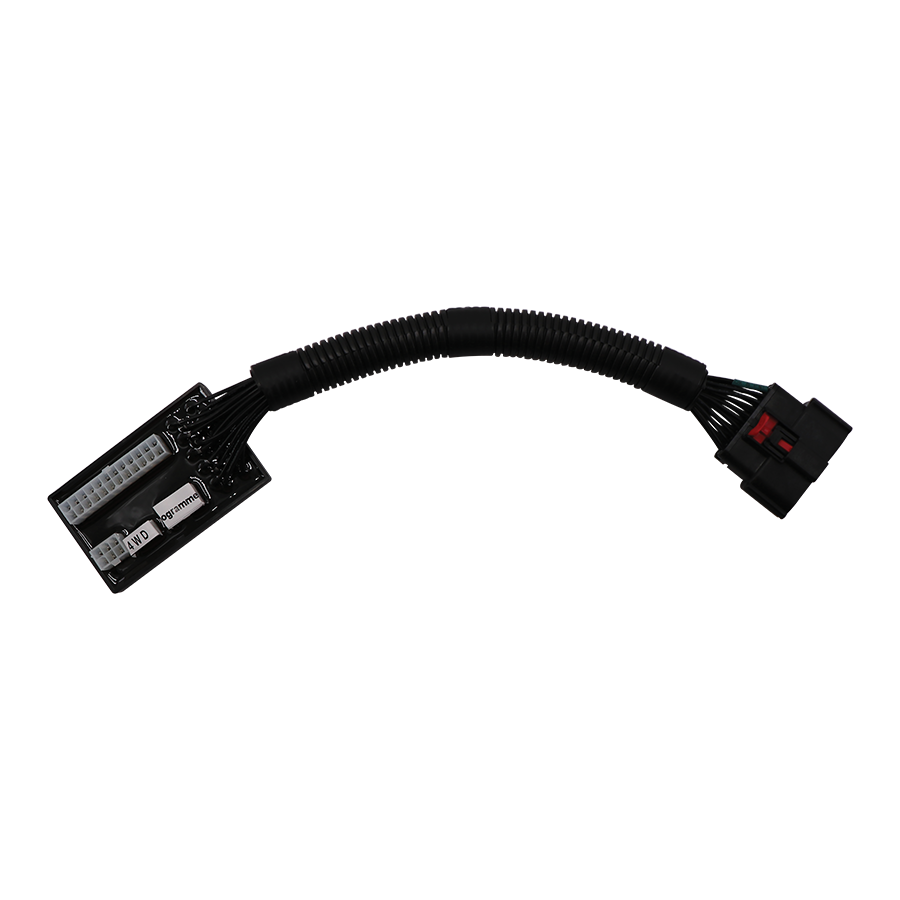

- Vehicle specific harness for Curtis 1268/1520 carts
- On-The-Fly programmer
600A
- Navitas TSX 3.0 600A DC controller with Bluetooth
- Vehicle specific harness for Curtis 1268/1520 carts
- On-The-Fly programmer
Completes the install
Specifications
Compare options
| Specification | 440A | 600A |
|---|---|---|
| Controller part number | 10-000766 | 10-000685 |
| Rated controller current | 440A | 600A |
- Brand
- Navitas
- Controller
- Navitas TSX 3.0 DC controller with Bluetooth
- System voltage
- 48V
- Replaces stock controller
- Curtis 1268 or 1520
- Motor
- Uses the cart's existing DC motor (not included)
- Vehicle harness
- Included
- On-The-Fly programmer
- Included
- Bluetooth app programming
- Yes, Navitas app
- Condition
- New
- Warranty
- 24 months from ship date
Shipping weight and box dimensions are confirmed before dispatch.
Requirements and install notes
This is a controller swap. Your cart keeps its DC motor; the stock controller comes out and the Navitas TSX 3.0 controller goes in with the vehicle harness supplied in the kit.
Disconnect the battery pack and discharge the old controller before you touch any terminal. Photograph the original cable positions first, then follow the Navitas TSX 3.0 manual step by step.
Check the main battery cables, terminals and solenoid before installation. A tired solenoid or undersized cables limit what a higher amp controller can deliver.
The On-The-Fly programmer lets the driver adjust speed and acceleration from the seat, with a key lock to hold the settings. Deeper settings and live diagnostics are in the Navitas app over Bluetooth. Dealer level app access is available to qualified customers only.
If you are not comfortable working on a 36V or 48V traction system, have the kit installed by a qualified golf cart technician.
FAQ
Should I choose 440A or 600A?
440A is plenty for two riders on flat or gentle ground, and it asks less of the battery pack, cables and solenoid. Choose 600A for a rear seat, a lift, bigger tires or regular hills, where more current means more torque. Both ratings come with the same vehicle harness and On-The-Fly programmer.
Will this kit make my cart faster?
It adds torque, so the cart pulls harder from a stop, up hills and with passengers. Top speed also depends on the motor, gearing, tire size, pack voltage and the speed you set in the programmer. The kit does not raise the cart's load or towing capacity.
Do I need a new solenoid or battery cables?
Check both while the seat is up. A worn solenoid arcs on every engagement and sends spikes into the controller, so replace it with one rated for your amps if it tests weak. Navitas lists undersized battery cables as a cause of a cart that goes sluggish after a while and recommends 4 AWG power cables.
How do I change the speed and acceleration settings?
From the driver seat, with the On-The-Fly programmer that comes in the kit. A key lock holds your settings. Deeper settings and live diagnostics are in the Navitas app on your phone over Bluetooth.
Other options
Other upgrade paths for the carts this kit fits. Each one names the cart it is listed for.
- Navitas TAC2 600A 5kW DC to AC Conversion Kit for Star EV (Replaces Curtis 1268 Non-ITS)
DC to AC conversion: TAC2 600A controller and 5kW AC motor. For Star EV (Replaces Curtis 1268 Non-ITS).
$2,209.00View - Navitas TAC2 600A 5kW DC to AC Conversion Kit for Star EV (Curtis 1268 non-ITS) with CAN, 48V
DC to AC conversion: TAC2 600A controller and 5kW AC motor, CAN enabled. For Star EV (Curtis 1268 non-ITS) with CAN.
$2,059.00View - Navitas TAC2 600A 5kW DC to AC Conversion Kit for Club Car Villager and Carryall (Replaces Curtis 1520 / 1268 Non-ITS)
DC to AC conversion: TAC2 600A controller and 5kW AC motor. For Club Car Villager and Carryall (Replaces Curtis 1520 / 1268 Non-ITS).
$2,209.00View
Warranty
Navitas TSX 3.0 controllers carry a 24 month warranty from the ship date, handled by us. Proof of purchase is required. Labour, damage from incorrect installation, wrong voltage, overload and non-OEM part substitution are not covered. See our returns and refunds policy for the full process.
Manufacturer part reference
- Manufacturer part number
- 87-TSX3-600CCSTR
- GCL SKU
- GCL-NAV-TSX-KIT-CLUB-CAR-STAR-EV-1268-1520
