Navitas TSX 3.0 Vehicle Harness for Club Car and Star EV (Curtis 1268/1520)
- Connects a Navitas TSX 3.0 controller to Club Car and Star EV 1268/1520 wiring
- Requires a Navitas TSX 3.0 controller (sold separately)
- Does not fit: Star EV Classic 36V carts
Express checkout options available at checkout
Not sure it fits? Send us a photo of your cart and we will check. Buying guide: A Beginner’s Guide to Golf Cart Harnesses and Programmers
- 12 months warranty
- Free ground shipping over $199, lower 48. No sales tax.
- 30 day returns
- Email support
Overview

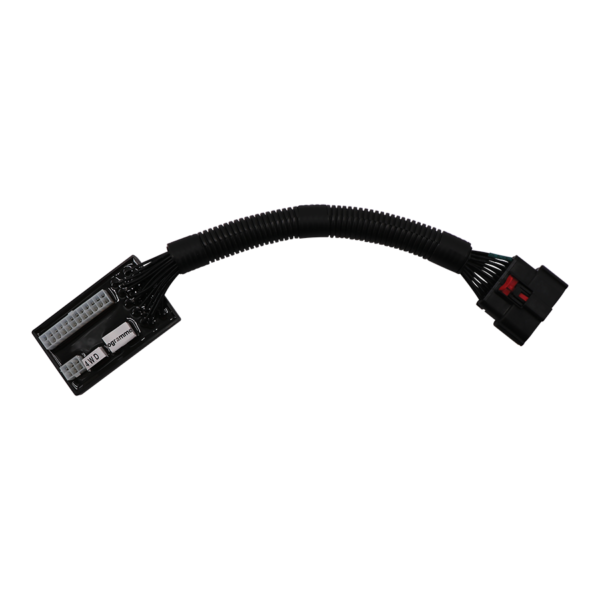

This harness connects a Navitas TSX 3.0 controller to Club Car and Star EV carts that came with a Curtis 1268 or 1520 controller, such as the Club Car Carryall.
It is sold separately for owners who already have a TSX 3.0 controller or need a replacement harness. Upgrading from stock? The Club Car and Star EV 1268/1520 TSX 3.0 kit includes it.
- Voltage
- 48V
Compatibility
Fits
- Club Car Carts with Curtis 1268 or 1520 control (for example Carryall)
- Stock controller
- Curtis 1268 or 1520
- Voltage
- 48V
- Years
- Identify by controller
Requires a Navitas TSX 3.0 controller
- Star EV 48V carts with Curtis 1268 or 1520 control
- Stock controller
- Curtis 1268 or 1520
- Voltage
- 48V
- Years
- Identify by controller
Requires a Navitas TSX 3.0 controller
Does not fit
- Star EV Classic 36V carts
- Club Car IQ or Excel carts with Curtis 1510/1515
- Navitas TAC2 AC controllers
Not listed here? Contact us to verify fitment before you order. support@golfcartlab.com
How to confirm it fits
Read the stock controller label: Curtis 1268 or 1520.
Confirm the cart is 48V.
Send us a photo of the label if unsure.
What's in the box
- Navitas TSX 3.0 Vehicle Harness for Club Car and Star EV
Completes the install
Needed: pick one
This harness connects a Navitas TSX 3.0 controller to your cart. You need one of these unless you already have a TSX 3.0 fitted.
Specifications
- Brand
- Navitas
- Manufacturer part number
- 40-000515
- Part type
- Vehicle harness
- Works with
- Navitas TSX 3.0 controllers (440A or 600A)
- Cart wiring
- Curtis 1268 or 1520
- System voltage
- 48V
- Controller included
- No
- Condition
- New
- Warranty
- 12 months from ship date
Shipping weight and box dimensions are confirmed before dispatch.
Requirements and install notes
This harness connects a Navitas TSX 3.0 controller to the cart wiring. The controller and On-The-Fly programmer are not included.
Disconnect the battery pack before unplugging or connecting any harness, and follow the Navitas TSX 3.0 manual.
Route the harness away from sharp edges, battery terminals and moving parts, and secure it with ties.
If you are not comfortable working on a traction system, have it installed by a qualified golf cart technician.
Requires a Navitas TSX 3.0 controller (sold separately).
Other options
Buying the controller as well? The kit already includes this harness.
- Navitas TSX 3.0 Controller Kit for Club Car and Star EV 48V (Replaces Curtis 1268/1520), 440A or 600A
The kit for this cart: a TSX 3.0 controller (440A or 600A), this harness and the OTF programmer in one box.
From $842.00View
Warranty
This part carries a 12 month warranty from the ship date, handled by us. Proof of purchase is required. Labour, damage from incorrect installation, wrong voltage and overload are not covered. See our returns and refunds policy for the full process.
Manufacturer part reference
- Manufacturer part number
- 40-000515
- GCL SKU
- 87-40000515
Reviews
There are no reviews yet.
