How power and charging actually work on a golf cart

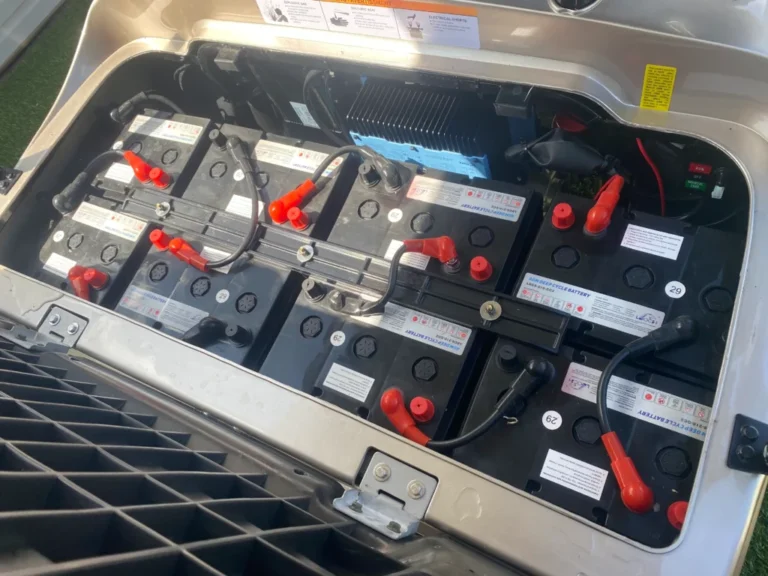

Almost everything in this category traces back to one idea: a golf cart has a traction pack that moves the cart and a low-voltage path that decides whether the cart is allowed to move at all. The pack is a string of batteries wired in series, typically six 8-volt or eight 6-volt units for a 48-volt system, or a single lithium block with its own battery management system. That pack feeds the controller through a main fuse and a solenoid, and the solenoid only closes when the low-voltage path gives it permission.

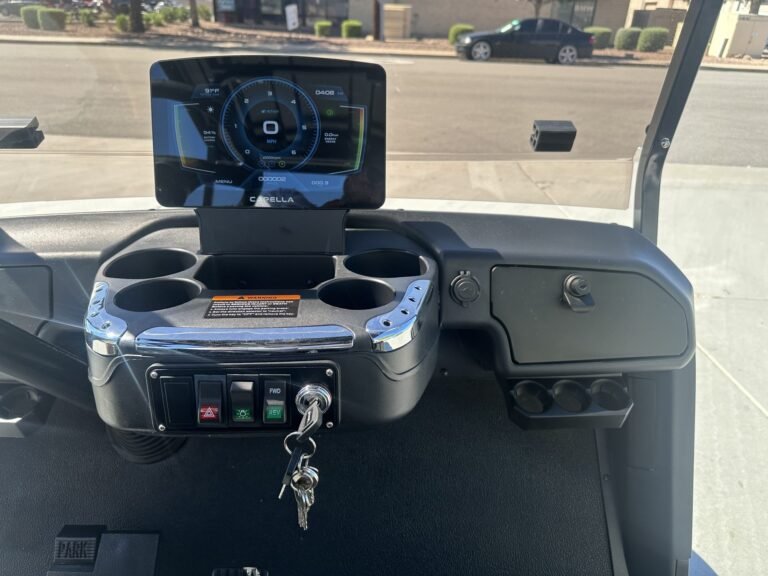

That permission chain is where most “dead cart” problems live. Turning the key sends a small current through the run/tow switch, the key switch, the pedal micro-switch, and on newer carts through a converter that steps pack voltage down to 12 volts for lights and accessories. Break the chain anywhere and you get the same symptom, a cart with a full pack that does nothing. Charging runs on a parallel idea: the charger has to see enough voltage at the receptacle to recognise a pack before it will start, which is why a deeply discharged bank often refuses to accept a charge that would have worked a week earlier.

The failure modes behind most power and charging complaints

Across the guides in this archive, the same handful of faults account for the large majority of cases:

• Corroded or loose pack connections. Symptom: cart runs fine on flat ground then dies under load, or one battery reads far lower than the rest. Voltage drop across a bad terminal shows up only when current flows, so a static reading looks normal.
• A pack that has fallen below the charger’s wake threshold. Symptom: charger plugs in, fan may run briefly, then nothing, and the ammeter never climbs. Common on lithium carts after a winter with the disconnect left on.
• A failed 12-volt converter (reducer). Symptom: cart drives normally but lights, horn and dash are dead, or the dash flickers. People misread this as a pack problem because the display is blank.
• Key switch, run/tow switch or pedal micro-switch failure. Symptom: total silence, no solenoid click when the pedal is pressed. Cheap parts, high failure rate, and they strand the cart exactly like a dead pack does.

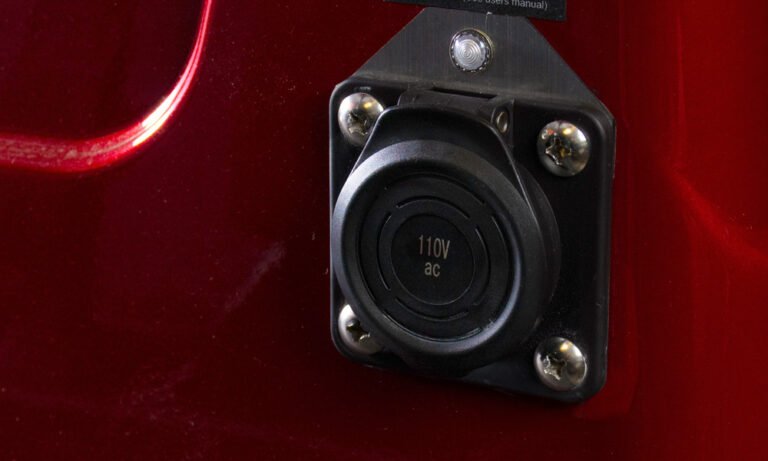

• A blown main fuse or open charge-port pin. Symptom: cart is dead, or it drives but will not charge. The receptacle contacts arc and burn over years of plugging in.

What to measure first, and the numbers that matter

Before replacing anything, take three readings with a multimeter. They cost nothing and they eliminate most of the list above.

1. Pack voltage at the main terminals. A healthy resting 48-volt lead-acid pack sits near 50.9 volts, a 36-volt pack near 38.2. Below the numbers in the table is a discharged or damaged bank, not a controller problem.

2. Individual battery voltage. Read each battery in the string. Any unit more than about 0.3 volts below its neighbours is dragging the pack down and will keep doing so after you replace other parts.

3. Voltage at the small solenoid terminals with the key on and the pedal pressed. You should see close to full pack voltage on a 48-volt coil, or battery voltage on a 12-volt coil. If it is there and the solenoid does not click, the solenoid is the fault. If it is missing, the fault is upstream in the key, switch or pedal circuit.

Take resting readings at least an hour after charging or driving. A pack measured straight off the charger reads high by roughly a volt and will make a tired bank look healthy.

Which guide do you need?

If the cart is completely dead, no dash, no click, start with the no-power guides above for your brand and work the key feed and main fuse. If it clicks but will not move, the permission chain is fine and the fault is at the solenoid contacts, the controller feed or the motor, so the solenoid and drive guides are the right entry point. If it drives but will not charge, go to the charging guides and check the receptacle and pack voltage before suspecting the charger. If it runs then fades or loses range, that is a pack condition question and the battery guides cover load testing and watering. If only the lights and accessories are dead, look at the converter.
