Yamaha Drive (G29) Speed Upgrade: TSX vs AC Conversion

Your Yamaha Drive is quiet and dependable, but put four people on it or point it up a steep street and it runs out of pull. The short answer: for a healthy 48V G29 Drive or Drive2 DC with the 26 pin Moric controller, a Navitas TSX 3.0 kit is the simplest upgrade and keeps the motor. A TAC2 or TAC3 AC conversion replaces motor and controller together for carts that climb or carry a lot every day. Start with the connector, then the checks, then the choice.

The 26-Pin Moric Connector Is the Starting Point

Yamaha used the Drive name across DC, AC and gas carts. A G29 body does not prove which drivetrain is under the seat. The upgrade in this guide begins with a 48V DC cart and a Moric controller whose connector has 26 pins in two rows.

Photograph the controller label and connector before unplugging anything. Then decode the cart with the Yamaha serial lookup. The serial confirms the model family; the 26-pin controller confirms the electronics.

The pin count matters because the G19/G22 and G29 harnesses are different even though both may be described as Moric. Counting rows prevents an expensive connector mismatch.

Do These Checks Before Calling It a Performance Limit

A Drive that was strong last month and weak today needs fault-finding first. A new controller cannot repair a tired battery or an intermittent pedal signal.

• Measure pack voltage under load. The Yamaha voltage-drop diagnosis shows how a weak 48V pack behaves when the cart accelerates or climbs.
• Inspect main cables and terminals. Use the cable voltage-drop test to find a connection that looks clean but loses power under current.
• Watch for surging or hesitation. An uneven pedal response points to a signal, connection or control problem. Work through the G29 surging guide.
• Check for a no-drive fault. If the cart stops moving in both directions, use the G29 forward and reverse diagnosis instead of ordering a speed kit.
• Measure the tires. Taller tires increase distance per motor turn but reduce effective torque at the ground. Heavy steering or rubbing also signals a tire and suspension problem, not a controller limit.

If all checks pass and the healthy cart still slows with passengers or hills, the stock drive is being asked to do more than its original setup. That is the point where controller sizing becomes useful.

Why a Stock Drive Feels Flat With Passengers

The Drive was set up at the factory as a course car: two riders, two bags, paths with gentle grades. Take the same cart into a hilly neighborhood with a rear seat and four people and it is working far outside that brief.

The Moric controller caps the current it sends to the DC motor. When the load rises, the motor slows, and a slower DC motor delivers less speed just as the grade gets steeper. A tired lead-acid pack makes it worse, because pack voltage drops hardest at the moment the controller asks for the most current.

So the fix is not a single part number. It is a decision about how much of the drivetrain to change: the controller alone, which lets the existing motor work harder under control, or the motor and controller together, which moves the cart to an AC system. If you are still deciding whether AC is worth it at all, the DC vs AC motor comparison explains the tradeoff in general terms. The sections below apply it to the Drive.

TSX vs TAC2 vs TAC3 on a Yamaha Drive

Choose TSX when the DC motor is still doing its job

The Yamaha G29 TSX kit replaces the 26-pin Moric controller and keeps the motor. The 440A kit suits an everyday cart on standard tires. The 600A kit is the better match for a rear seat, taller tires, more passenger weight or steeper grades. Both include the G29 vehicle harness and On-The-Fly programmer.

Choose TAC2 when you want the motor and controller matched

On a G29 Drive, the G29 TAC2 conversion replaces the DC motor and Moric controller with a 4kW AC motor and either a 440A or 600A TAC2 controller. It is the clean middle route: a full AC drive without moving to the largest controller and motor in the catalogue.

Choose TAC3 only when the rest of the cart is ready

The G29 TAC3 kit pairs an 850A controller with a 7.5kW motor. That rating is useful only when the pack, cables, solenoid, tires and brakes are built for the same job. It is not the automatic choice just because the number is larger.

Use the controller amp calculator to account for passengers, terrain and tire size. It gives a better starting point than choosing from top speed alone. Then use the controller finder to see every kit listed for your Drive, matched by the serial number or the 26 pin plug. To choose between TSX and an AC conversion by how you use the cart, the AC conversion kit finder asks about passengers and hills and picks the route.

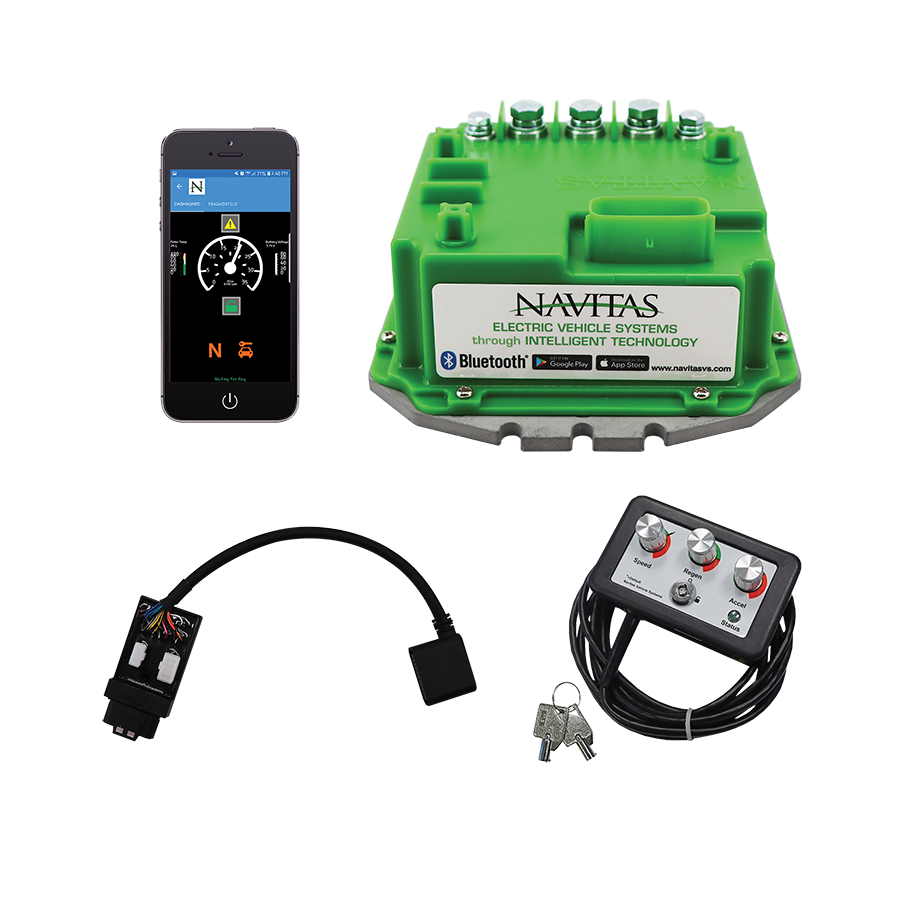

Parts note: The Navitas TSX 3.0 G29 kit replaces the 26 pin Moric controller and keeps the DC motor, in 440A or 600A. See the TSX 3.0 G29 kit

Yamaha G29 and Drive Fitment Table

The Navitas products have the narrowest confirmed fitment: 48V, DC drivetrain and the 26-pin Moric connector. The TSX 3.0 and TAC3 listings name both the G29 Drive and the Drive2 DC; the TAC2 4kW listing names the G29 Drive only, so a Drive2 DC owner who wants AC should look at the TAC3 or ask us first. The Eco Battery product covers Yamaha DC carts more broadly, but its live fitment record says to confirm the vehicle. For that route, send the serial, controller connector, pack voltage and motor plate before ordering.

If your cart has been converted or the connector count does not match the serial result, trust the hardware in front of you and ask us to verify it. A swapped controller can make a year-based recommendation wrong.

Parts note: The TAC2 G29 kit converts a 26 pin G29 Drive to AC with a 4kW motor, controller, module and programmer. See the TAC2 G29 AC kit

Package Contents and Installation Scope

TSX 3.0

A 440A or 600A Bluetooth controller, the vehicle-specific harness for the Yamaha G29 Drive and the On-The-Fly programmer. The DC motor remains in the cart, so this is the least invasive route.

TAC2 4kW

A 4kW Navitas AC motor, 440A or 600A TAC2 controller with Bluetooth and CAN, TAC2 module, programmer, mounting hardware, motor phase cable and motor-sensor cable as listed for the selected option.

TAC3 7.5kW

The listing names a 7.5kW Navitas AC motor and a TAC3 850A controller with Bluetooth and CAN. Ask us for the full packing list if you need to know which harness and mounting parts ship with it, and plan the battery pack and cables around the higher current demand.

Eco Battery Yamaha kit

The chosen controller and AC motor combination with the harness, cables, controller plate and conversion components stated for that SKU. Its product data requires exact vehicle confirmation before fulfilment.

• Count the connector pins and rows before ordering any electronic kit.
• Load-test the pack and repair voltage drop before increasing current.
• For an AC conversion, support the cart safely and plan access for motor removal.
• After installation, follow the manufacturer setup procedure before driving.
