Navitas TAC2 DC to AC Conversion Kit for Yamaha G29 Drive Replaces 26 Pin Moric Controller, 4kW
- Fits DC Yamaha G29 Drive carts with the 26 pin Moric controller
- Converts the cart to AC: stronger torque, regenerative braking and Bluetooth app control
- Complete kit with Navitas AC motor, TAC2 controller and On-The-Fly programmer; ratings: 440A 4kW or 600A 4kW
- Does not fit: Yamaha G19 and G22, even with a Moric controller (23 pin connector in 3 rows)
Complete conversion kitfrom $2,049.00
Welcome offer eligible. Add to cart to activate $80 off.
Express checkout options available at checkout
Not sure it fits? Find the kit that fits your cart in the AC Conversion Kit Finder.
- 24 months warranty
- Free ground shipping over $199, lower 48. No sales tax.
- 30 day returns
- Email support
Overview
The DC Yamaha G29, sold as the Drive, uses a Moric controller. This Navitas kit replaces the DC motor and that controller with a Navitas 4kW AC motor and a CAN enabled TAC2 controller, turning the cart into a modern AC drivetrain with regenerative braking and Bluetooth diagnostics.
The kit includes the motor, controller, Yamaha interface module, On-The-Fly programmer, mounting plate and hardware, and the motor phase and sensor cables. Choose 440A for a strong all-round cart or 600A for more torque under load.
Be careful with one detail. The Moric controllers on the G22 and the G29 look almost the same, but only the G29 takes this kit. Count the pins (see "How to confirm it fits").
- Voltage
- 48V
- Controller
- 440A or 600A
- AC motor
- 4kW
- CAN bus
- Built in
- Bluetooth app
- Built in
Compatibility
Fits
- Yamaha G29 / Drive (YDRE)
- Stock controller
- Moric with 26 pin connector (2 rows)
- Voltage
- 48V
- Years
- Identify by controller
DC drivetrain carts only
Does not fit
- Yamaha G19 and G22, even with a Moric controller (23 pin connector in 3 rows)
- Yamaha Drive2 AC carts with the Toyota NEOs controller (use the Drive2 AC controller kit)
Not listed here? Contact us to verify fitment before you order. support@golfcartlab.com
How to confirm it fits

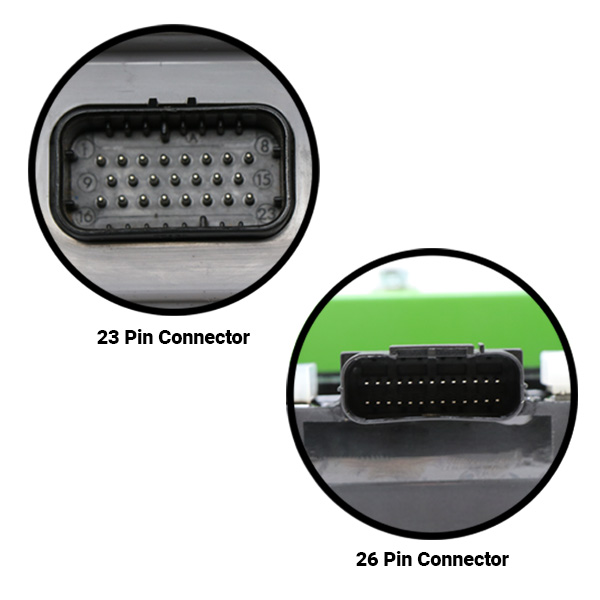

Unplug and inspect the Moric controller connector. 26 pins in 2 rows means G29, and this kit fits.
23 pins in 3 rows means a G22. This kit will not fit that cart.
Use the Yamaha serial lookup to confirm the model, and send us a photo of the connector if you are unsure.
Buying guide: A Beginner’s Guide to Choosing a Golf Cart Conversion Kit
What's in the box
440A 4kW
- Navitas 4kW AC motor
- Navitas TAC2 440A CAN controller with Bluetooth
- TAC2 module
- On-The-Fly programmer
- TAC2 hardware and mounting kit
- AC motor phase cable
- Motor sensor cable
600A 4kW
- Navitas 4kW AC motor
- Navitas TAC2 600A CAN controller with Bluetooth
- TAC2 module
- On-The-Fly programmer
- TAC2 hardware kit
Completes the install
Specifications
Compare options
| Specification | 440A 4kW | 600A 4kW |
|---|---|---|
| Manufacturer part number | 10-000889-38 | 10-000891-29 |
| Rated controller current | 440A | 600A |
| Motor spline | 19 tooth | Not stated |
- Brand
- Navitas
- Controller
- Navitas TAC2 AC controller
- System voltage
- 48V
- Replaces stock controller
- Moric, 26 pin connector in 2 rows
- AC motor
- Navitas 4kW AC induction motor (included)
- CAN enabled
- Yes
- Bluetooth app programming
- Yes, Navitas app
- On-The-Fly programmer
- Included
- Regenerative braking
- Yes
- Controller sealing
- IP65 (Navitas TAC2)
- Condition
- New
- Warranty
- 24 months from ship date
Shipping weight and box dimensions are confirmed before dispatch.
Requirements and install notes
This is a full drivetrain conversion. The DC motor and the stock controller both come out, and the Navitas AC motor and TAC2 controller go in.
Disconnect the battery pack and discharge the controller before you touch any terminal. Follow the Navitas TAC2 installation manual step by step.
Check the main battery cables, terminals and solenoid before installation. Worn wiring limits what any AC system can deliver.
The On-The-Fly programmer lets the driver adjust speed, acceleration and regenerative braking on the move, with a key lock to hold the settings. Deeper settings are adjusted in the Navitas app over Bluetooth.
Plan on a half day or more for a first-time install. If you are not comfortable working on a 48V traction system, have the kit installed by a qualified golf cart technician.
FAQ
Which Yamaha carts does this kit fit?
The 48V DC Yamaha G29, sold as the Drive (YDRE), with the Moric controller and its 26 pin connector in two rows. It does not fit the G19 or G22, which use a 23 pin connector in three rows, or a Drive2 AC with the Toyota NEOs controller.
Does the kit include a motor?
Yes. The Navitas 4kW AC motor replaces the DC motor, with a 440A or 600A TAC2 CAN controller, the TAC2 module and the On-The-Fly programmer.
How do I tell a G29 from a G19 or G22?
Count the rows on the Moric controller connector: 26 pins in two rows is the G29 Drive this kit fits; 23 pins in three rows is a G19 or G22.
How do I set it up?
The controller is programmed in the Navitas app on a phone or tablet, over Bluetooth, before the cart will drive. After that, the On-The-Fly programmer changes speed, acceleration and regenerative braking from the seat, with a key lock to hold your settings.
Other options
Other upgrade paths for the carts this kit fits. Each one names the cart it is listed for.
- Navitas TSX 3.0 Controller Kit for Yamaha G29 Drive 48V (Replaces 26 Pin Moric Controller), 440A or 600A
Keeps your DC motor. TSX 3.0 controller (440A or 600A), harness and OTF programmer. For Yamaha G29 Drive 48V (Replaces 26 Pin Moric Controller).
From $829.00View - Navitas TAC3 850A 7.5kW DC to AC Conversion Kit for Yamaha G29 Drive and Drive2 (Replaces Moric Controller)
DC to AC conversion with the TAC3 850A controller and a 7.5kW AC motor, the highest-rated kit we list for this cart. For Yamaha G29 Drive and Drive2 (Replaces Moric Controller).
$2,689.00View
Warranty
Navitas TAC2 AC systems carry a 24 month warranty from the ship date, handled by us. Proof of purchase is required. Labour, damage from incorrect installation, wrong voltage, overload and non-OEM part substitution are not covered. See our returns and refunds policy for the full process.
Manufacturer part reference
- Manufacturer part number
- 10-000891-29
- GCL SKU
- GCL-NAV-TAC2-DC-AC-KIT-YAMAHA-G29
