Navitas TAC2 600A 5kW DC to AC Conversion Kit for Star EV Replaces Curtis 1268 Non-ITS
- Fits 48V Star EV carts with the Curtis 1268 non-ITS controller
- Converts the cart to AC: stronger torque, regenerative braking and Bluetooth app control
- Includes 5kW AC motor, TAC2 600A AC controller with Bluetooth, module for Star EV non-ITS and more
- Does not fit: Star EV carts that already run an AC drivetrain
Complete conversion kit$2,209.00
Welcome offer eligible. Add to cart to activate $80 off.
Express checkout options available at checkout
Not sure it fits? Find the kit that fits your cart in the AC Conversion Kit Finder.
- 24 months warranty
- Free ground shipping over $199, lower 48. No sales tax.
- 30 day returns
- Email support
Overview
Star EV carts with a 48V DC drivetrain and the Curtis 1268 non-ITS controller can be converted to AC with this Navitas kit. It replaces the DC motor and the stock controller with a Navitas 5kW AC motor and a 600A TAC2 controller with Bluetooth. This is the standard version of the kit. If your cart uses a CAN data network, order the CAN version instead and contact us if you are not sure which you need.
The kit includes a Navitas module made for the Star EV non-ITS system, so the controller connects to the cart properly instead of through improvised wiring. You also get the On-The-Fly programmer, speed sensor and motor temperature harness, mounting plate and hardware, and the motor phase cable.
After conversion the cart gains stronger torque, regenerative braking and adjustable speed, with Bluetooth diagnostics in the Navitas app.
- Voltage
- 48V
- Controller
- 600A
- AC motor
- 5kW
- Bluetooth app
- Built in
Compatibility
Fits
- Star EV 48V (Classic series)
- Stock controller
- Curtis 1268 non-ITS
- Voltage
- 48V
- Years
- Identify by controller
DC drivetrain carts only
Does not fit
- Star EV carts that already run an AC drivetrain
- Star EV carts with a controller other than the Curtis 1268 non-ITS
- 36V Star EV carts
Not listed here? Contact us to verify fitment before you order. support@golfcartlab.com
How to confirm it fits
Read the controller label. It must be a Curtis 1268 without ITS.
Confirm the cart runs 48V.
Newer Star EV models use different drivetrains, so send us a photo of the controller label if you are not certain.
Buying guide: A Beginner’s Guide to Choosing a Golf Cart Conversion Kit

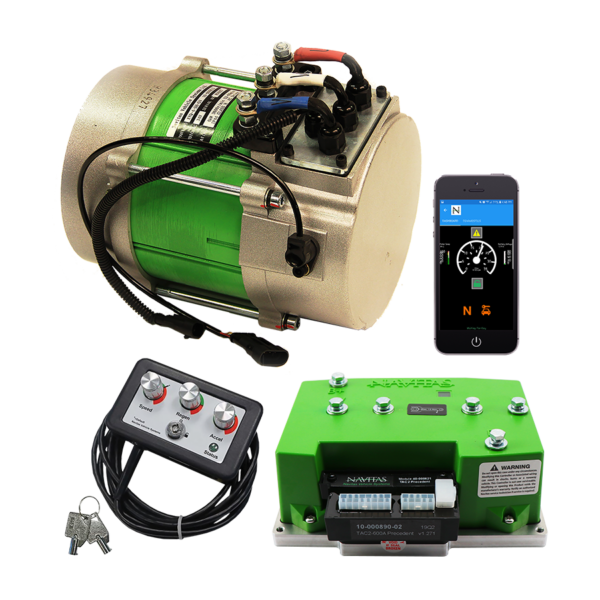

What's in the box
- Navitas 5kW AC motor
- Navitas TAC2 600A AC controller with Bluetooth
- Navitas module for Star EV non-ITS
- On-The-Fly programmer
- Speed sensor and motor temperature harness
- Mounting plate and hardware
- Motor phase cable
Specifications
- Brand
- Navitas
- Manufacturer part number
- 10-000891-43
- Controller
- Navitas TAC2 AC controller
- Rated controller current
- 600A
- System voltage
- 48V
- Replaces stock controller
- Curtis 1268 non-ITS
- AC motor
- Navitas 5kW AC induction motor (included)
- Bluetooth app programming
- Yes, Navitas app
- On-The-Fly programmer
- Included
- Regenerative braking
- Yes
- Controller sealing
- IP65 (Navitas TAC2)
- Condition
- New
- Warranty
- 24 months from ship date
Shipping weight and box dimensions are confirmed before dispatch.
Requirements and install notes
This is a full drivetrain conversion. The DC motor and the stock controller both come out, and the Navitas AC motor and TAC2 controller go in.
Disconnect the battery pack and discharge the controller before you touch any terminal. Follow the Navitas TAC2 installation manual step by step.
Check the main battery cables, terminals and solenoid before installation. Worn wiring limits what any AC system can deliver.
The On-The-Fly programmer lets the driver adjust speed, acceleration and regenerative braking on the move, with a key lock to hold the settings. Deeper settings are adjusted in the Navitas app over Bluetooth.
Plan on a half day or more for a first-time install. If you are not comfortable working on a 48V traction system, have the kit installed by a qualified golf cart technician.
A Navitas module for the Star EV non-ITS system is included.
Other options
Other upgrade paths for the carts this kit fits. Each one names the cart it is listed for.
- Navitas TSX 3.0 Controller Kit for Club Car and Star EV 48V (Replaces Curtis 1268/1520), 440A or 600A
Keeps your DC motor. TSX 3.0 controller (440A or 600A), harness and OTF programmer. For Club Car and Star EV 48V (Replaces Curtis 1268/1520).
From $842.00View - Navitas TAC2 600A 5kW DC to AC Conversion Kit for Star EV (Curtis 1268 non-ITS) with CAN, 48V
DC to AC conversion: TAC2 600A controller and 5kW AC motor, CAN enabled. For Star EV (Curtis 1268 non-ITS) with CAN.
$2,059.00View
Warranty
Navitas TAC2 AC systems carry a 24 month warranty from the ship date, handled by us. Proof of purchase is required. Labour, damage from incorrect installation, wrong voltage, overload and non-OEM part substitution are not covered. See our returns and refunds policy for the full process.
Manufacturer part reference
- Manufacturer part number
- 10-000891-43
- GCL SKU
