Navitas TAC2 600A 5kW DC to AC Conversion Kit for Star EV (Curtis 1268 non-ITS) with CAN, 48V
- Navitas TAC2 600A kit for Star EV 1268 non-ITS, 48V
- Replaces Curtis 1268 non-ITS throttle controls
- Includes the 5kW AC motor, mounting hardware and cabling
- Read the fitment limits below before ordering
- Bluetooth programming and diagnostics through the Navitas app
Welcome offer eligible. Add to cart to activate $80 off.
Express checkout options available at checkout
Not sure it fits? Find the kit that fits your cart in the AC Conversion Kit Finder.
- Free ground shipping over $199, lower 48. No sales tax.
- 30 day returns
- Email support
Overview
This is the Navitas TAC2 600A conversion kit for Star EV 1268 non-ITS carts, supplied with the 5kW AC motor. It replaces Curtis 1268 non-ITS throttle controls.
This is a full DC to AC conversion. The AC system gives noticeably more speed and torque than the DC drive it replaces, and it is more efficient, so the same pack goes further on a charge.
This is the CAN version of the kit. It ships a CAN enabled control, which joins the data network your cart already uses to pass information between the controller, dash and charger. The manufacturer also builds a non-CAN version of this kit for carts without that network.
The two are the same motor and the same amp rating. The only difference is the control. If you are not sure which your cart uses, send us the cart make, model and year and a photo of the existing controller and we will tell you which version to order.
Programming and live diagnostics are done through the Navitas app on a phone or tablet. Dealer level app access is available for qualified customers.
- Voltage
- 48V
- CAN bus
- Built in
Compatibility
Fits
- Star EV 1268 non-ITS
- Voltage
- 48V
Does not fit
- Please note this kit includes a 19 tooth motor and is not compatible with Club Car.
- Any cart outside Star EV 1268 non-ITS at 48V
- Any installation where the factory controller has not been identified
Not sure your cart matches? Contact us to verify fitment before you order. support@golfcartlab.com
How to confirm it fits
Read the label on your existing controller and note the part number.
Confirm your cart make, model and year.
Confirm the pack voltage.
Send us a photo of the controller label if anything is unclear. We would rather check than have you fit the wrong kit.
Buying guide: A Beginner’s Guide to Choosing a Golf Cart Conversion Kit

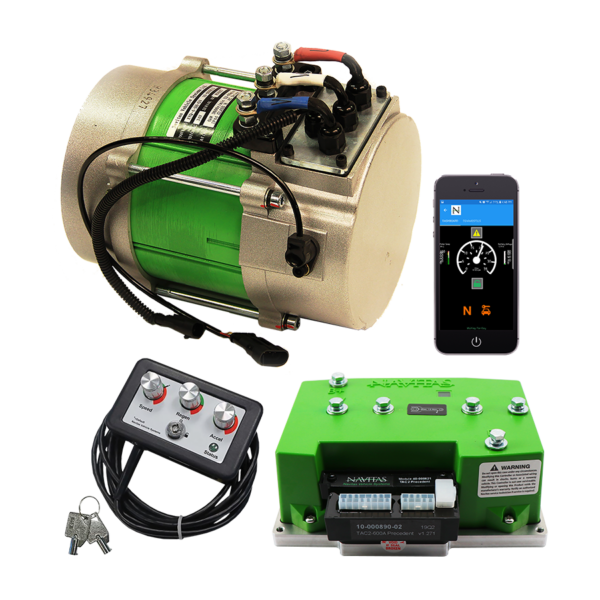

What's in the box
- Increased speed & torque over DC systems
- Longer run times & battery efficiency
- Bluetooth app for programming/diagnostics. Contains a security feature to lock your vehicle. *Dealer level app available for qualified customers
- On-The-Fly Programmer to manually adjust speed, acceleration and regenerative breaking on the go
- All hardware/cabling for easy installation
- CAN Enabled Control
- TAC2 600 A CAN Control with Bluetooth
- TAC2 1268 non-ITS Module
- AC 5 kW motor
- TAC2 Hardware and Mounting Kit
- On-The-Fly Programmer
- AC Motor Phase Cable
- Motor Sensor Cable
Specifications
- Brand
- Navitas
- Manufacturer part number
- 222-48VCANSTAREVTAC2-5
- Controller
- Navitas TAC2
- Rated controller current
- 600A
- System voltage
- 48V
- AC motor
- 5kW
- Drive type
- DC to AC conversion
- CAN enabled
- Yes
- App programming
- Yes, Navitas app over Bluetooth
- On-The-Fly programmer
- Included
- Condition
- New
- Warranty
- 24 months from ship date
Shipping weight and box dimensions: confirmed before dispatch.
Requirements and install notes
The controller must be programmed with the Navitas app before the cart will drive. A smartphone or tablet is required.
Fitting the AC motor means pulling the old DC motor. Budget for a full afternoon and have the cart on jack stands.
Disconnect the battery pack and discharge the old controller before you touch any terminal.
Check the main battery cables, terminals and solenoid before installation. A conversion puts more current through them than the DC system did.
If you are not comfortable working on a traction system at this voltage, have the kit installed by a qualified golf cart technician.
Other options
Other upgrade paths for the carts this kit fits. Each one names the cart it is listed for.
- Navitas TSX 3.0 Controller Kit for Club Car and Star EV 48V (Replaces Curtis 1268/1520), 440A or 600A
Keeps your DC motor. TSX 3.0 controller (440A or 600A), harness and OTF programmer. For Club Car and Star EV 48V (Replaces Curtis 1268/1520).
From $842.00View - Navitas TAC2 600A 5kW DC to AC Conversion Kit for Star EV (Replaces Curtis 1268 Non-ITS)
DC to AC conversion: TAC2 600A controller and 5kW AC motor. For Star EV (Replaces Curtis 1268 Non-ITS).
$2,209.00View
Warranty
Navitas kits carry a 24 month warranty from the ship date, handled through our distribution partner. Proof of purchase is required. Labour, damage from incorrect installation, wrong voltage, overload and non-OEM part substitution are not covered. See our returns and refunds policy for the full process.
Manufacturer part reference
- Manufacturer part number
- 222-48VCANSTAREVTAC2-5
- GCL SKU
- 222-48VCANSTAREVTAC2-5
