Trombetta 684-3681-012-14 Solenoid: Specs and Cross-Reference

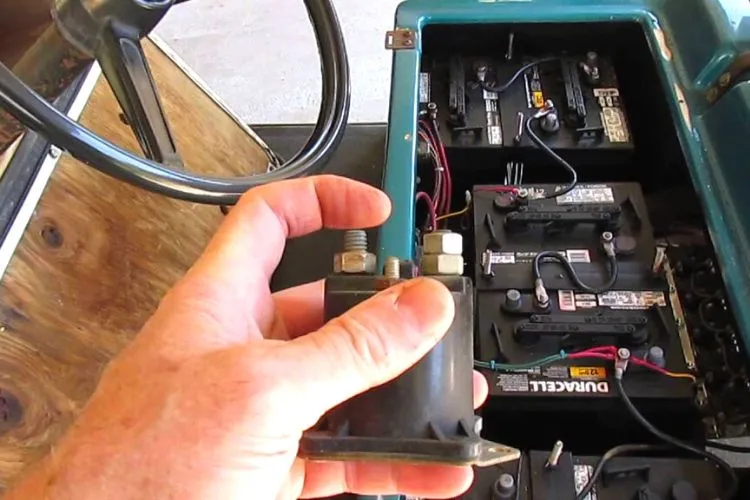

Part-number searches for the Trombetta 684-3681-012-14 usually start with a failed contactor and a photo of a label. The number is awkward to read, it appears in several near-identical variants, and one digit in the middle causes a great deal of confusion about what voltage the part actually is. This page sets out the published specifications, explains which parts of the number matter when you are cross-referencing, and covers how to confirm the replacement is correct before the old one comes off the cart.

What the Part Number Actually Tells You

The complete identifier is 684-3681-012-14, and the exact listing identifies it as a 36VDC contactor. The 012 group should not be treated as a voltage code. No primary exact-SKU numbering key was found that explains each group, so this guide does not assign a meaning to 012 or claim what changes between suffixes -12 and -14.

That uncertainty makes the complete label more important, not less. Neighboring PowerSeal parts can share a case while differing in coil, contacts, suppression, bracket or terminals. Order and document all four groups. If a listing truncates the suffix, uses only a generic image or asks you to select voltage separately, it has not yet established an exact match.

A marketplace phrase such as fits Trombetta is not the same as a Trombetta-labeled part. An aftermarket contactor may be a valid choice when its manufacturer publishes the required ratings, but the original brand’s IP rating and duty claim cannot be transferred to an unverified copy.

Published Specifications

The figures below come from current distributor documentation for this part. Where a value is not published, it is marked as such rather than estimated, because an assumed amperage is exactly the kind of number that causes an undersized part to be fitted with confidence.

The continuous duty rating is the specification that most affects whether a substitute will survive. A continuous-duty contactor is built to be held closed indefinitely, while an intermittent-duty part of similar appearance and price is designed for short energization and will heat up badly if left closed. Signs of that mistake show up as a hot solenoid within a short period of use.

Cross-Referencing and Fitment

Multiple distributors list this contactor as the replacement for E-Z-GO part number 609428. That cross-reference is useful as a starting point, but it should be confirmed against your specific cart rather than treated as universal. E-Z-GO changed componentry across model years and platforms, and a number that supersedes correctly for one build can be wrong for another that looks identical from the seat. Confirm by serial number before ordering, using the year and model identification guide if the cart year is not certain.

Physical fitment deserves the same care. The four-terminal layout with two 5/16-24 main studs and two 10-32 coil studs determines whether your existing cable lugs and coil leads land correctly, and the flat long L-bracket determines whether it bolts to the existing mount without fabrication. Photograph the old part in place, including the bracket and the cable routing, before removing it.

If you are cross-referencing because the original failed early, it is worth establishing why before fitting the same specification again. A contactor that welds shut or burns its contacts is often reporting a problem elsewhere in the circuit rather than a defect in itself, and the welded contacts diagnosis covers what to look for.

Confirming the Contactor Is Actually the Fault

Before ordering any replacement, confirm the contactor is the failure rather than a symptom of one. The classic presentation is an audible click with no movement, which means the coil is working and pulling the plunger while the main contacts are not passing current. That specific pattern is covered in detail in the click with no movement diagnosis.

The opposite presentation, a cart that keeps driving or will not shut down, indicates contacts that have welded closed. This is a safety issue and the cart should not be driven until it is resolved. In both cases the test is the same in principle: with the cart safely supported and the pack isolated for handling, measure across the main terminals to establish whether the contactor passes current when energized and isolates when it is not.

A silent contactor with no click at all usually means the coil is not being energized, which points upstream rather than at the contactor. Check the switching circuit that feeds it, including the key switch, the microswitches and the tow/run switch, before assuming the part in your hand is dead.

What is verified for the exact SKU, and what is only family data

The safest way to use a Trombetta family sheet is to separate identification facts from design-family examples. The exact 684-3681-012-14 listing verifies a 36VDC coil, 100 percent continuous duty, sealed construction, four terminals, copper contacts, a flat long L-bracket and the terminal thread sizes. It also identifies E-Z-GO 609428 as the replacement reference. Those are suitable exact-SKU facts.

Trombetta’s current Full Silver Continuous Duty PowerSeal sheet is broader. It describes 12V, 24V, 36V and 48V coil options and gives electrical tables for named family configurations, including a current graph labeled 684-XXXX-032. Those figures do not automatically become ratings for a part ending in 012-14. A shared case and voltage do not prove identical contact material, coil winding, suppression, bracket, terminal orientation or current rating.

Why the two small studs matter

The exact listing calls the coil non-grounded, and Trombetta’s ungrounded PowerSeal installation guide shows why: one small terminal receives the switched coil feed and the other returns to ground. The metal case is not the electrical return. If a replacement is wired as though it were a one-wire, case-grounded solenoid, it will remain silent even when every high-current cable is correct.

The two large studs are the contact path. Trombetta’s generic guide shows battery positive, protected by the vehicle’s fuse arrangement, on one large stud and the load on the other. Do not use the coil studs for a traction cable and do not add an unfused feed simply because a generic drawing shows a fuse symbol. Preserve the vehicle’s factory circuit protection and cable routing. Disconnect the pack according to the vehicle manual, insulate loose cable ends and use two wrenches so tightening a cable nut does not twist the stationary stud in the sealed case.

Cross-reference without guessing

E-Z-GO 609428 is a useful cross-reference, not proof that the part belongs on every 36V cart or every RXV. Some dealer catalogs further describe 609428 as superseding an earlier number on particular early RXV builds, but model-year and controller breakpoints should be confirmed in the E-Z-GO parts catalog using the vehicle serial number. The label on the removed contactor remains the strongest evidence. Record all four groups in 684-3681-012-14; dropping the last group loses configuration information.

Before ordering, compare coil voltage, continuous-duty designation, isolated-coil layout, main-stud size, small-stud size, bracket orientation, available cable clearance and the complete old part number. A seller’s phrase such as compatible with or replaces does not establish that an aftermarket unit carries Trombetta’s sealing or duty ratings. If the listing uses only a stock photograph and omits the suffix, ask for a label photo.

Bench diagnosis without inventing an amp rating

1. With the battery pack isolated, label and remove the cables. Never test resistance on an energized traction circuit.
2. Check that the two large studs are open with the coil de-energized. A closed reading indicates welded contacts.
3. Check the coil for an open circuit between the two small studs. A finite reading only proves continuity; use the exact drawing before applying a numerical resistance limit.
4. Energize the coil only from the correct protected 36V control source and observe whether the contactor closes cleanly. Keep hands and loose leads clear.
5. On the vehicle, measure voltage drop across the two large studs while the contactor is closed and the drive circuit is loaded. A click with a large drop indicates poor main contacts, even if an unloaded ohmmeter looked acceptable.

Contactors usually fail for a reason. Loose high-current connections create heat, low pack voltage can make the coil chatter, an incorrect suppression circuit can stress control electronics, and repeated high-current interruption can damage the contacts. Correct that cause before installing a second unit. A melted boot, discolored cable lug or rotated stud is evidence to repair the cable as well as the contactor.

When the old label is damaged, send the supplier a clear photo of the mounting bracket, all four studs, any suppression component across the coil and the vehicle serial-number plate. Ask for the exact manufacturer’s drawing before approving a substitute. That small verification step is more useful than comparing case color or searching only for 36V solenoid, because dozens of contactors share those superficial traits while differing where it matters electrically. Keep the supplier’s drawing with the maintenance record so the next replacement can be verified against a document rather than an old listing.
