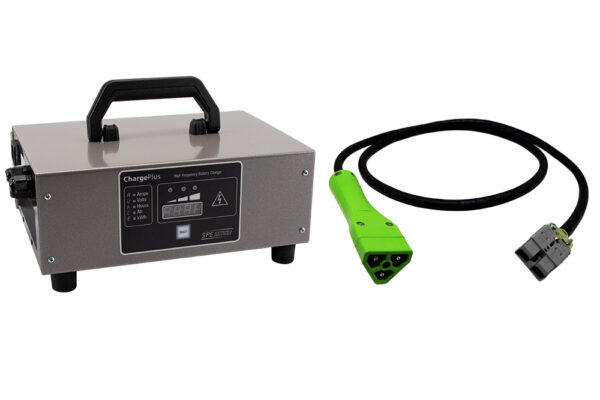

SPE ChargePlus E-Z-GO ELiTE lithium Golf Cart Battery Charger, Lithium
- 48V golf cart charger with the E-Z-GO ELiTE lithium connector fitted
- Factory programmed for lithium batteries
- Float maintenance stage, UL approved
- Part number 24-CBHF2-EZ48ELITE
- Confirm pack voltage, receptacle and chemistry before ordering
Express checkout options available at checkout
Not sure it fits? Send us a photo of your cart and we will check. Buying guide: A Beginner’s Guide to Replacing a Golf Cart Charger
- Free ground shipping over $199, lower 48. No sales tax.
- 30 day returns
- Email support
Overview
This SPE ChargePlus charger is supplied with the E-Z-GO ELiTE factory lithium receptacle, so it plugs directly into a E-Z-GO 48V cart without an adapter. It is programmed at the factory for lithium batteries.
Lithium packs need a charge profile that stops at the correct cell voltage and does not attempt an equalisation stage. Confirm your battery management system accepts an external charger of this rating before ordering.
The unit holds a float maintenance stage for carts left on charge between uses, and is UL approved.
Compatibility
Fits
Does not fit
- Packs of any voltage other than 48V
- Carts with a receptacle other than the E-Z-GO ELiTE factory lithium receptacle
- Packs of any chemistry other than lithium
- Any battery whose management system prohibits an external charger
- Aftermarket lithium packs, and any E-Z-GO without the factory Samsung SDI lithium batteries (the manufacturer states this charger only functions with those factory batteries)
Not listed here? Contact us to verify fitment before you order. support@golfcartlab.com
How to confirm it fits
Measure the resting pack voltage and confirm a 48V system.
Match the charge receptacle on the cart to the E-Z-GO ELiTE factory lithium receptacle.
Read the battery label and confirm lithium.
Order the part number that matches all three.
What is in the box
- One SPE ChargePlus 48V charger programmed for lithium
- E-Z-GO ELiTE lithium connector, fitted
Specifications
- Brand
- SPE ChargePlus
- Manufacturer part number
- 24-CBHF2-EZ48ELITE
- Pack voltage
- 48V
- Connector
- E-Z-GO ELiTE lithium
- Battery chemistry
- Lithium
- Float maintenance
- Yes
- Approval
- UL approved
- Condition
- New
- Warranty
- 24 months
Package weight and dimensions are confirmed before dispatch.
Requirements and install notes
Confirm the pack is 48V. Measure at the pack, not at a single battery.
Confirm the cart receptacle matches the E-Z-GO ELiTE factory lithium receptacle.
Confirm the batteries are lithium. Read the label rather than assuming.
Check the battery management system permits an external charger at this rating.
FAQ
Which carts does this charger fit?
48V E-Z-GO carts with the E-Z-GO ELiTE lithium receptacle. The plug is already fitted, so no adapter is needed. Carts with the E-Z-GO D-shape 36V, E-Z-GO triangle 48V, E-Z-GO TXT or Workhorse 48V receptacle use a different version.
Which batteries does it charge?
48V lithium packs. It is programmed at the factory for lithium, and a profile built for one chemistry will not charge another correctly, so check that your battery management system accepts an external charger of this rating, and choose a lead-acid version for a lead-acid pack.
Can I leave it plugged in?
Yes. It holds a float maintenance stage for carts left on charge between uses, and it is UL approved.
What is in the box?
The SPE ChargePlus 48V charger programmed for lithium, with the E-Z-GO ELiTE lithium plug fitted. It carries a 24-month warranty.
Other options
Chargers with the same plug. The charger must match your battery type, so pick the one set up for the batteries in your cart.
- TORO720 48V 15A Smart Charger for E-Z-GO ELiTE Lithium
Same plug, set up for lithium batteries. TORO720 15A smart charger with a battery temperature sensor.
$709.00View
Warranty
24 months. Contact us before ordering if warranty coverage is material to your purchase.
Manufacturer part reference
- Manufacturer part number
- 24-CBHF2-EZ48ELITE
- GCL SKU
- 24-CBHF2-EZ48ELITE
Reviews
There are no reviews yet.
