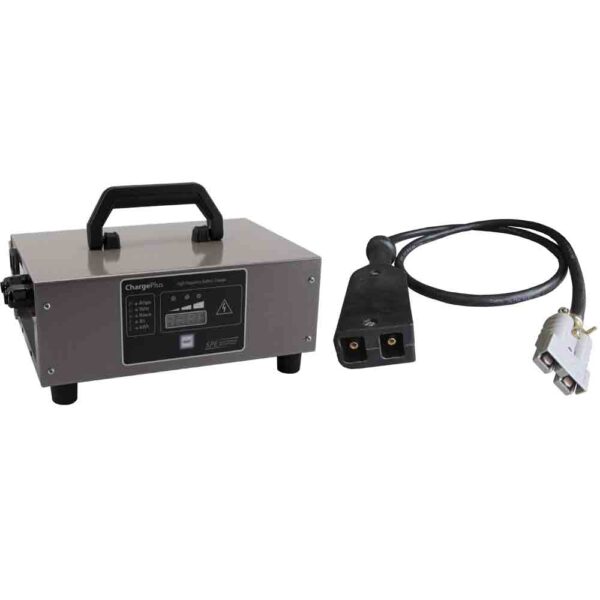

SPE ChargePlus E-Z-GO D-shape 36V Golf Cart Battery Charger, Flooded Lead-Acid
- 36V golf cart charger with the E-Z-GO D-shape 36V connector fitted
- Factory programmed for flooded lead-acid batteries
- Float maintenance stage, UL approved
- Part number 24-CBHF2-EZ36
- Confirm pack voltage, receptacle and chemistry before ordering
Express checkout options available at checkout
Not sure it fits? Send us a photo of your cart and we will check. Buying guide: A Beginner’s Guide to Replacing a Golf Cart Charger
- Free ground shipping over $199, lower 48. No sales tax.
- 30 day returns
- Email support
Overview
This SPE ChargePlus charger is supplied with the round D-shape receptacle used on 36V E-Z-GO carts, so it plugs directly into a E-Z-GO 36V cart without an adapter. It is programmed at the factory for flooded lead-acid batteries.
A flooded lead-acid profile controls the bulk, absorption and float stages for that chemistry. Using a profile built for another chemistry will either undercharge the pack or cook it, so match the profile to the batteries actually fitted.
The unit holds a float maintenance stage for carts left on charge between uses, and is UL approved.
Compatibility
Fits
Does not fit
- Packs of any voltage other than 36V
- Carts with a receptacle other than the round D-shape receptacle used on 36V E-Z-GO carts
- Packs of any chemistry other than flooded lead-acid
Not listed here? Contact us to verify fitment before you order. support@golfcartlab.com
How to confirm it fits
Measure the resting pack voltage and confirm a 36V system.
Match the charge receptacle on the cart to the round D-shape receptacle used on 36V E-Z-GO carts.
Read the battery label and confirm flooded lead-acid.
Order the part number that matches all three.
What is in the box
- One SPE ChargePlus 36V charger programmed for flooded lead-acid
- E-Z-GO D-shape 36V connector, fitted
Specifications
- Brand
- SPE ChargePlus
- Manufacturer part number
- 24-CBHF2-EZ36
- Pack voltage
- 36V
- Connector
- E-Z-GO D-shape 36V
- Battery chemistry
- Flooded lead-acid
- Float maintenance
- Yes
- Approval
- UL approved
- Condition
- New
- Warranty
- 24 months
Package weight and dimensions are confirmed before dispatch.
Requirements and install notes
Confirm the pack is 36V. Measure at the pack, not at a single battery.
Confirm the cart receptacle matches the round D-shape receptacle used on 36V E-Z-GO carts.
Confirm the batteries are flooded lead-acid. Read the label rather than assuming.
Charge in a ventilated area and follow the battery manufacturer instructions.
FAQ
Which carts does this charger fit?
36V E-Z-GO carts with the E-Z-GO D-shape 36V receptacle. The plug is already fitted, so no adapter is needed. Carts with the E-Z-GO triangle 48V, E-Z-GO TXT or Workhorse 48V, E-Z-GO ELiTE lithium receptacle use a different version.
Which batteries does it charge?
36V flooded lead-acid packs. It is programmed at the factory for flooded lead-acid, and a profile built for one chemistry will not charge another correctly, so choose the version programmed for your batteries.
Can I leave it plugged in?
Yes. It holds a float maintenance stage for carts left on charge between uses, and it is UL approved.
What is in the box?
The SPE ChargePlus 36V charger programmed for flooded lead-acid, with the E-Z-GO D-shape 36V plug fitted. It carries a 24-month warranty.
Other options
Chargers with the same plug. The charger must match your battery type, so pick the one set up for the batteries in your cart.
- SPE ChargePlus E-Z-GO D-shape 36V Golf Cart Battery Charger, AGM
Same plug, set up for AGM batteries.
$479.00View
Warranty
24 months. Contact us before ordering if warranty coverage is material to your purchase.
Manufacturer part reference
- Manufacturer part number
- 24-CBHF2-EZ36
- GCL SKU
- 24-CBHF2-EZ36
