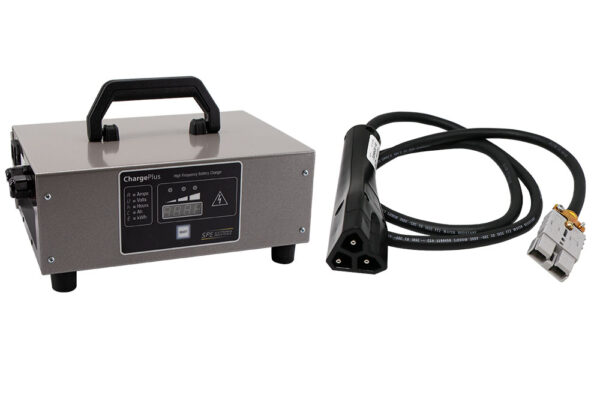

SPE ChargePlus E-Z-GO triangle 48V Golf Cart Battery Charger, AGM
- 48V golf cart charger with the E-Z-GO triangle 48V connector fitted
- Factory programmed for agm batteries
- Float maintenance stage, UL approved
- Part number 24-CBHF2-EZ48AG
- Confirm pack voltage, receptacle and chemistry before ordering
Express checkout options available at checkout
Not sure it fits? Send us a photo of your cart and we will check. Buying guide: A Beginner’s Guide to Replacing a Golf Cart Charger
- Free ground shipping over $199, lower 48. No sales tax.
- 30 day returns
- Email support
Overview
This SPE ChargePlus charger is supplied with the triangular 48V E-Z-GO receptacle, so it plugs directly into a E-Z-GO 48V cart without an adapter. It is programmed at the factory for agm batteries.
A agm profile controls the bulk, absorption and float stages for that chemistry. Using a profile built for another chemistry will either undercharge the pack or cook it, so match the profile to the batteries actually fitted.
The unit holds a float maintenance stage for carts left on charge between uses, and is UL approved.
Compatibility
Fits
Does not fit
- Packs of any voltage other than 48V
- Carts with a receptacle other than the triangular 48V E-Z-GO receptacle
- Packs of any chemistry other than agm
Not listed here? Contact us to verify fitment before you order. support@golfcartlab.com
How to confirm it fits
Measure the resting pack voltage and confirm a 48V system.
Match the charge receptacle on the cart to the triangular 48V E-Z-GO receptacle.
Read the battery label and confirm agm.
Order the part number that matches all three.
What is in the box
- One SPE ChargePlus 48V charger programmed for agm
- E-Z-GO triangle 48V connector, fitted
Specifications
- Brand
- SPE ChargePlus
- Manufacturer part number
- 24-CBHF2-EZ48AG
- Pack voltage
- 48V
- Connector
- E-Z-GO triangle 48V
- Battery chemistry
- AGM
- Float maintenance
- Yes
- Approval
- UL approved
- Condition
- New
- Warranty
- 24 months
Package weight and dimensions are confirmed before dispatch.
Requirements and install notes
Confirm the pack is 48V. Measure at the pack, not at a single battery.
Confirm the cart receptacle matches the triangular 48V E-Z-GO receptacle.
Confirm the batteries are agm. Read the label rather than assuming.
Charge in a ventilated area and follow the battery manufacturer instructions.
FAQ
Which carts does this charger fit?
48V E-Z-GO carts with the E-Z-GO triangle 48V receptacle. The plug is already fitted, so no adapter is needed. Carts with the E-Z-GO D-shape 36V, E-Z-GO TXT or Workhorse 48V, E-Z-GO ELiTE lithium receptacle use a different version.
Which batteries does it charge?
48V AGM packs. It is programmed at the factory for AGM, and a profile built for one chemistry will not charge another correctly, so choose the version programmed for your batteries.
Can I leave it plugged in?
Yes. It holds a float maintenance stage for carts left on charge between uses, and it is UL approved.
What is in the box?
The SPE ChargePlus 48V charger programmed for AGM, with the E-Z-GO triangle 48V plug fitted. It carries a 24-month warranty.
Other options
Chargers with the same plug. The charger must match your battery type, so pick the one set up for the batteries in your cart.
- TORO720 48V 15A Smart Charger for E-Z-GO Triangle 48V
Same plug. Battery profile confirmed with us before it ships. TORO720 15A smart charger with a battery temperature sensor.
$599.00View - TORO720 48V 15A Smart Charger for E-Z-GO Triangle 48V, Lithium
Same plug, set up for lithium batteries. TORO720 15A smart charger with a battery temperature sensor.
$599.00View - SPE ChargePlus E-Z-GO triangle 48V Golf Cart Battery Charger, Flooded Lead-Acid
Same plug, set up for flooded lead-acid batteries.
$479.00View - SPE ChargePlus E-Z-GO triangle 48V Golf Cart Battery Charger, Gel
Same plug, set up for gel batteries.
$479.00View
Show 1 more
- SPE ChargePlus E-Z-GO triangle 48V Golf Cart Battery Charger, Lithium
Same plug, set up for lithium batteries.
$479.00View
Warranty
24 months. Contact us before ordering if warranty coverage is material to your purchase.
Manufacturer part reference
- Manufacturer part number
- 24-CBHF2-EZ48AG
- GCL SKU
- 24-CBHF2-EZ48AG
