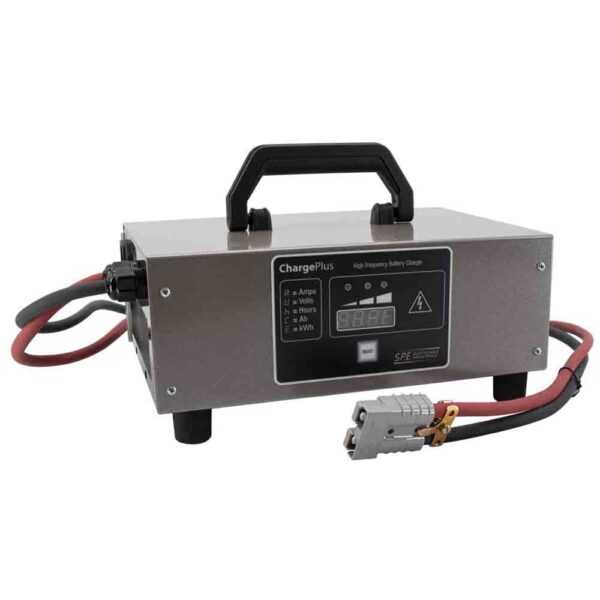

SPE ChargePlus 36V 25A Universal SB175 Battery Charger
- 36V 25A output for 36V battery packs
- Gray SB175 connector, supplied with connector kit and five extra feet of cable
- Factory programmed for one chemistry: Flooded lead-acid
- Float maintenance, UL approved
- Confirm pack voltage and battery chemistry before ordering
Express checkout options available at checkout
Not sure it fits? Send us a photo of your cart and we will check. Buying guide: A Beginner’s Guide to Replacing a Golf Cart Charger
- Free ground shipping over $199, lower 48. No sales tax.
- 30 day returns
- Email support
Overview
The SPE ChargePlus 36V 25A is a universal industrial battery charger that terminates in a gray SB175 connector rather than a cart-specific plug. It is rated 25A for 36V battery packs and is supplied with the connector kit plus five additional feet of cable.
36V is the classic six-battery golf cart pack and also appears on older industrial equipment. At 25A this is the highest-output unit of the three, so it recovers a deeply discharged 36V pack faster than the 20A models.
Each unit is programmed at the factory for one battery chemistry. Select the chemistry that matches your pack, because a charge profile built for one chemistry will not correctly charge another.
Compatibility
Fits
Factory programmed, one chemistry per unit
Does not fit
- Packs of any voltage other than 36V
- Carts still using an OEM plug, unless you also fit an SB175 connector
- Any chemistry other than the one the unit is programmed for
Not listed here? Contact us to verify fitment before you order. support@golfcartlab.com
How to confirm it fits
Measure the resting pack voltage and confirm it is a 36V system.
Read the battery label to identify the chemistry.
Confirm the vehicle has, or can accept, a gray SB175 connector.
Confirm your pack is flooded lead-acid.
Available chemistries
- Flooded lead-acid, part number 24-CBHF2175DC36
This voltage is supplied in one chemistry. If you are unsure which chemistry your pack uses, contact us with the battery label before ordering.
Other voltages in this range
What is in the box
- One SPE ChargePlus 36V 25A charger
- Gray SB175 connector kit
- Five additional feet of cable
Specifications
- Brand
- SPE ChargePlus
- Pack voltage
- 36V
- Rated output
- 25A
- Output connector
- Gray SB175
- Chemistry
- Factory programmed, selected at order
- Float maintenance
- Yes
- Approval
- UL approved
- Extra cable supplied
- Five feet
- Condition
- New
- Warranty
- 24 months
Package weight and dimensions are confirmed before dispatch.
Requirements and install notes
Confirm the pack is 36V before ordering. Measure at the pack, not at a single battery.
Confirm the battery chemistry from the battery label and order the matching unit.
The charger terminates in a gray SB175. Fit a matching SB175 on the vehicle if it does not already have one.
Charge in a ventilated area and follow the battery manufacturer instructions for flooded packs.
FAQ
Which carts does this charger fit?
36V carts and equipment already fitted with a gray SB175 connector. It has no cart-specific plug, so a cart that still uses its factory receptacle needs an SB175 receptacle fitted first, or a version with the cart plug.
Which batteries does it charge?
36V packs. Each unit is programmed at the factory for one battery chemistry, selected when you order, so choose the chemistry that matches your pack.
What is in the box?
The SPE ChargePlus 36V 25A charger, a gray SB175 connector kit and five additional feet of cable.
Can I leave it plugged in?
Yes. It holds a float maintenance stage between uses, it is UL approved, and it carries a 24-month warranty.
Warranty
24 months. Contact us before ordering if warranty coverage is material to your purchase.
Manufacturer part reference
- Manufacturer part number
- 24-CBHF2175DC36
- GCL SKU
- 24-CBHF2175DC36
