Name: SPE ChargePlus 24V 20A SB175 Charger
Brand: SPE ChargePlus
Price: 489.00 USD
Availability: InStock

.gcl-mnav{font-family:'Inter',system-ui,sans-serif;padding:4px 2px 28px;} .gcl-mnav a{text-decoration:none;} .gcl-mnav .sec{font-family:'JetBrains Mono',monospace;font-size:10px;font-weight:700;letter-spacing:1.5px;text-transform:uppercase;color:#16A34A;margin:24px 0 10px;display:flex;align-items:center;justify-content:space-between;} .gcl-mnav .sec .all{font-family:'Inter',system-ui,sans-serif;font-size:11px;font-weight:700;letter-spacing:0;text-transform:none;color:#64748b;} .gcl-mnav .srch{position:relative;margin:4px 0 18px;} .gcl-mnav .srch input{width:100%;box-sizing:border-box;font-family:inherit;font-size:16px;font-weight:500;color:#0f172a;background:#f1f5f9;border:1.5px solid #e2e8f0;border-radius:14px;padding:14px 46px 14px 15px;outline:none;-webkit-appearance:none;} .gcl-mnav .srch input::placeholder{color:#94a3b8;font-weight:500;} .gcl-mnav .srch input:focus{border-color:#16A34A;background:#fff;} .gcl-mnav .srch button{position:absolute;top:50%;right:6px;transform:translateY(-50%);width:36px;height:36px;display:flex;align-items:center;justify-content:center;background:#16A34A;border:0;border-radius:10px;cursor:pointer;padding:0;} .gcl-mnav .srch button svg{width:17px;height:17px;stroke:#fff;stroke-width:2.5;fill:none;stroke-linecap:round;} .gcl-mnav .top a{display:flex;align-items:center;justify-content:space-between;font-size:19px;font-weight:800;color:#0f172a;padding:11px 0;border-bottom:1px solid #eef2f6;} .gcl-mnav .top a:after{content:"›";color:#cbd5e1;font-size:22px;font-weight:400;line-height:1;} .gcl-mnav .top a:active{color:#16A34A;} .gcl-mnav .grid{display:grid;grid-template-columns:1fr 1fr;gap:8px;} .gcl-mnav .chip{display:block;background:#f1f5f9;border:1px solid #e2e8f0;border-radius:12px;padding:11px 12px;font-size:13.5px;font-weight:700;color:#1e293b;line-height:1.3;} .gcl-mnav .chip:active{background:#16A34A;color:#fff;border-color:#16A34A;} .gcl-mnav .chip.hero{grid-column:span 2;background:#ecfdf5;border-color:#a7f3d0;color:#065f46;display:flex;align-items:center;justify-content:space-between;font-size:14.5px;} .gcl-mnav .chip.hero span{font-family:'JetBrains Mono',monospace;font-size:9.5px;font-weight:700;letter-spacing:.5px;color:#16A34A;background:#fff;border:1px solid #a7f3d0;border-radius:6px;padding:3px 6px;} .gcl-mnav .rows{display:grid;gap:6px;} .gcl-mnav .row{display:flex;align-items:center;justify-content:space-between;background:#fff;border:1px solid #eef2f6;border-radius:11px;padding:11px 13px;font-size:14px;font-weight:600;color:#334155;} .gcl-mnav .row b{font-family:'JetBrains Mono',monospace;font-size:10px;font-weight:700;color:#94a3b8;letter-spacing:.5px;} .gcl-mnav .row:active{border-color:#16A34A;color:#16A34A;} .gcl-mnav .cta{display:block;text-align:center;background:#0f172a;color:#fff;font-weight:800;text-transform:uppercase;letter-spacing:1px;font-size:13px;padding:15px;border-radius:14px;margin-top:22px;} .gcl-mnav .cta:active{background:#16A34A;} .gcl-mnav .mini{display:flex;flex-wrap:wrap;gap:14px;margin-top:18px;padding-top:16px;border-top:1px solid #eef2f6;} .gcl-mnav .mini a{font-size:13px;font-weight:600;color:#64748b;}

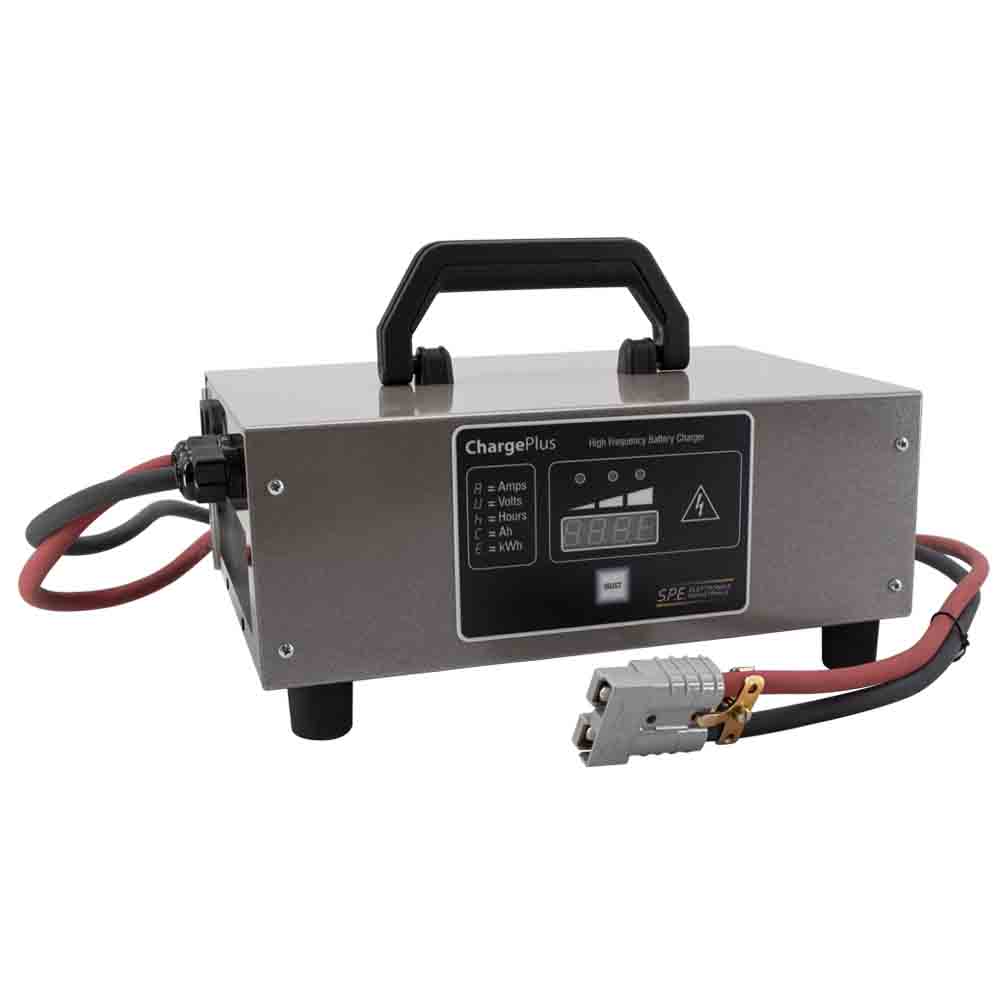

SPE ChargePlus 24V 20A Universal SB175 Battery Charger

24V 20A output for 24V battery packs
Gray SB175 connector, supplied with connector kit and five extra feet of cable
Factory programmed for one chemistry: Flooded lead-acid, AGM, Gel
Float maintenance, UL approved
Confirm pack voltage and battery chemistry before ordering

Battery Chemistry

Clear

Express checkout options available at checkout

Free ground shipping over $199, lower 48. No sales tax.

30 day returns

Email support

Brand SPE ChargePlus SKU Select an option

Overview

The SPE ChargePlus 24V 20A is a universal industrial battery charger that terminates in a gray SB175 connector rather than a cart-specific plug. It is rated 20A for 24V battery packs and is supplied with the connector kit plus five additional feet of cable.

24V packs are common on scissor lifts, floor scrubbers, pallet jacks and small utility vehicles rather than golf carts. Confirm the pack is genuinely 24V before ordering, because a 24V charger will not bring a 36V or 48V pack up to full charge.

Each unit is programmed at the factory for one battery chemistry. Select the chemistry that matches your pack, because a charge profile built for one chemistry will not correctly charge another.

Compatibility

Fits

Factory programmed, one chemistry per unit

Does not fit

Packs of any voltage other than 24V
Carts still using an OEM plug, unless you also fit an SB175 connector
Any chemistry other than the one the unit is programmed for

Not listed here? Contact us to verify fitment before you order. support@golfcartlab.com

How to confirm it fits

Measure the resting pack voltage and confirm it is a 24V system.
Read the battery label to identify the chemistry.
Confirm the vehicle has, or can accept, a gray SB175 connector.
Select the matching chemistry at checkout.

Requirements and install notes

Confirm the pack is 24V before ordering. Measure at the pack, not at a single battery.

Confirm the battery chemistry from the battery label and order the matching unit.

The charger terminates in a gray SB175. Fit a matching SB175 on the vehicle if it does not already have one.

Charge in a ventilated area and follow the battery manufacturer instructions for flooded packs.
