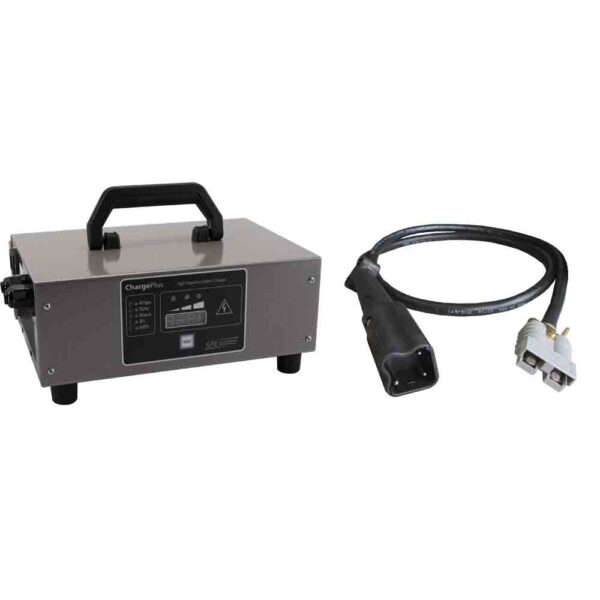

SPE ChargePlus Yamaha Drive / G29 48V Golf Cart Battery Charger, AGM
- 48V golf cart charger with the Yamaha Drive / G29 48V connector fitted
- Factory programmed for agm batteries
- Float maintenance stage, UL approved
- Part number 24-CBHF2-YDREAG
- Confirm pack voltage, receptacle and chemistry before ordering
Express checkout options available at checkout
Not sure it fits? Send us a photo of your cart and we will check. Buying guide: A Beginner’s Guide to Replacing a Golf Cart Charger
- Free ground shipping over $199, lower 48. No sales tax.
- 30 day returns
- Email support
Overview
This SPE ChargePlus charger is supplied with the 3-pin Yamaha Drive and G29 receptacle, so it plugs directly into a Yamaha 48V cart without an adapter. It is programmed at the factory for agm batteries.
A agm profile controls the bulk, absorption and float stages for that chemistry. Using a profile built for another chemistry will either undercharge the pack or cook it, so match the profile to the batteries actually fitted.
The unit holds a float maintenance stage for carts left on charge between uses, and is UL approved.
Compatibility
Fits
Does not fit
- Packs of any voltage other than 48V
- Carts with a receptacle other than the 3-pin Yamaha Drive and G29 receptacle
- Packs of any chemistry other than agm
Not listed here? Contact us to verify fitment before you order. support@golfcartlab.com
How to confirm it fits
Measure the resting pack voltage and confirm a 48V system.
Match the charge receptacle on the cart to the 3-pin Yamaha Drive and G29 receptacle.
Read the battery label and confirm agm.
Order the part number that matches all three.
What is in the box
- One SPE ChargePlus 48V charger programmed for agm
- Yamaha Drive / G29 48V connector, fitted
Specifications
- Brand
- SPE ChargePlus
- Manufacturer part number
- 24-CBHF2-YDREAG
- Pack voltage
- 48V
- Connector
- Yamaha Drive / G29 48V
- Battery chemistry
- AGM
- Float maintenance
- Yes
- Approval
- UL approved
- Condition
- New
- Warranty
- 24 months
Package weight and dimensions are confirmed before dispatch.
Requirements and install notes
Confirm the pack is 48V. Measure at the pack, not at a single battery.
Confirm the cart receptacle matches the 3-pin Yamaha Drive and G29 receptacle.
Confirm the batteries are agm. Read the label rather than assuming.
Charge in a ventilated area and follow the battery manufacturer instructions.
FAQ
Which carts does this charger fit?
48V Yamaha carts with the Yamaha Drive / G29 48V receptacle. The plug is already fitted, so no adapter is needed. Carts with the Yamaha G19 or G22 48V, Club Car or Yamaha 36V receptacle use a different version.
Which batteries does it charge?
48V AGM packs. It is programmed at the factory for AGM, and a profile built for one chemistry will not charge another correctly, so choose the version programmed for your batteries.
Can I leave it plugged in?
Yes. It holds a float maintenance stage for carts left on charge between uses, and it is UL approved.
What is in the box?
The SPE ChargePlus 48V charger programmed for AGM, with the Yamaha Drive / G29 48V plug fitted. It carries a 24-month warranty.
Other options
Chargers with the same plug. The charger must match your battery type, so pick the one set up for the batteries in your cart.
- TORO720 48V 15A Smart Charger for Yamaha Drive and G29 48V
Same plug. Battery profile confirmed with us before it ships. TORO720 15A smart charger with a battery temperature sensor.
$599.00View - TORO720 48V 15A Smart Charger for Yamaha Drive and G29 48V, Lithium
Same plug, set up for lithium batteries. TORO720 15A smart charger with a battery temperature sensor.
$599.00View - SPE ChargePlus Yamaha Drive / G29 48V Golf Cart Battery Charger, Flooded Lead-Acid
Same plug, set up for flooded lead-acid batteries.
$479.00View - SPE ChargePlus Yamaha Drive / G29 48V Golf Cart Battery Charger, Lithium
Same plug, set up for lithium batteries.
$479.00View
Warranty
24 months. Contact us before ordering if warranty coverage is material to your purchase.
Manufacturer part reference
- Manufacturer part number
- 24-CBHF2-YDREAG
- GCL SKU
- 24-CBHF2-YDREAG
