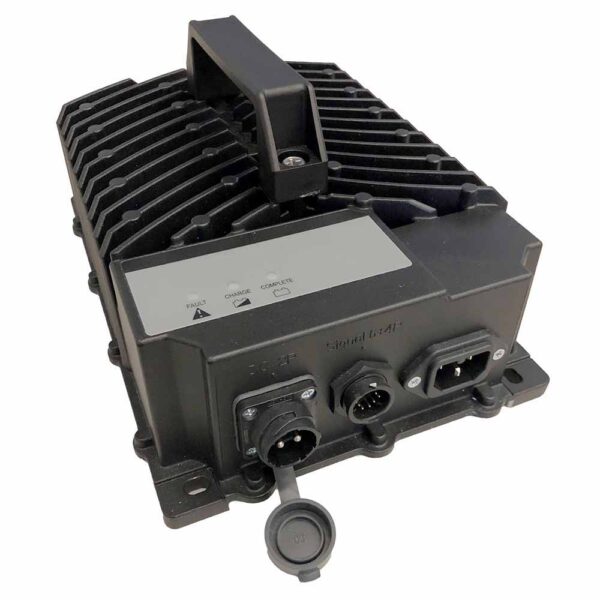

TORO720 48V 15A Smart Charger for Yamaha Drive and G29 48V, Lithium
- 48V 15A off-board smart charger, 360 to 720W
- Supplied with the Yamaha Drive / G29 48V connector, no adapter needed
- Battery profile: Lithium
- Bluetooth monitoring, temperature sensor, IP66 sealed housing
- Confirm the pack is 48V and the receptacle matches before ordering
Express checkout options available at checkout
Not sure it fits? Send us a photo of your cart and we will check. Buying guide: A Beginner’s Guide to Replacing a Golf Cart Charger
- Free ground shipping over $199, lower 48. No sales tax.
- 30 day returns
- Email support
Overview
The TORO720 is a 48V 15A off-board smart charger supplied with the Yamaha Drive / G29 48V pigtail connector, so it plugs straight into a Yamaha receptacle without an adapter. Output is 360 to 720W depending on pack state.
This unit is supplied with the lithium charge profile. Confirm your battery management system accepts an external charger of this rating before ordering.
The charger pairs to a phone over Bluetooth for charge monitoring, carries a battery temperature sensor and a 1.0A interlock signal, and is housed in a sealed IP66 case suitable for a damp garage or an outdoor charging bay.
Compatibility
Fits
Confirmed by the manufacturer
Does not fit
- Packs of any voltage other than 48V
- Carts with a receptacle other than the Yamaha Drive / G29 48V
- Any battery whose management system prohibits an external 15A charger
Not listed here? Contact us to verify fitment before you order. support@golfcartlab.com
How to confirm it fits
Measure the resting pack voltage and confirm a 48V system.
Identify the charge receptacle on the cart and match it to the Yamaha Drive / G29 48V.
Read the battery label to identify the chemistry.
Confirm the lithium profile suits that pack.
What is in the box
- One TORO720 48V 15A off-board charger
- Yamaha Drive / G29 48V pigtail connector, fitted
- Battery temperature sensor
Specifications
- Brand
- TORO720
- Manufacturer part number
- 24-TORO720-4815YDRELI
- Pack voltage
- 48V
- Rated current
- 15A
- Output power
- 360 to 720W
- Connector
- Yamaha Drive / G29 48V
- Battery profile
- Lithium
- Bluetooth monitoring
- Yes
- Temperature sensor
- Yes
- Interlock signal
- 1.0A
- Ingress protection
- IP66
- Protections
- Reverse polarity, over-temperature, over-current, over-voltage, charge timeout
- Condition
- New
- Warranty
- Manufacturer terms
Package weight and dimensions are confirmed before dispatch.
Requirements and install notes
Confirm the pack is 48V. Measure at the pack, not at a single battery.
Confirm the vehicle receptacle is the Yamaha Drive / G29 48V.
Confirm your pack chemistry matches the lithium profile.
Charge in a ventilated area and follow the battery manufacturer instructions.
Keep the charger housing clear of standing water despite the IP66 rating.
FAQ
Which carts does this charger fit?
48V Yamaha carts with the Yamaha Drive / G29 48V receptacle. The plug is already fitted, so no adapter is needed. Carts with the Yamaha G19 or G22 48V, Club Car or Yamaha 36V receptacle use a different version.
Will it charge my batteries?
It carries the lithium charge profile for 48V lithium packs. Check that your battery management system accepts an external 15A charger. For a lead-acid pack, choose a lead-acid version.
How fast does it charge?
It is rated at 15A, with 360 to 720W output depending on the state of the pack, and a battery temperature sensor adjusts charging to the conditions.
What is in the box?
The TORO720 charger with the Yamaha Drive / G29 48V plug fitted and a battery temperature sensor. It pairs to a phone over Bluetooth so you can watch the charge, and the case is sealed to IP66.
Other options
Chargers with the same plug. The charger must match your battery type, so pick the one set up for the batteries in your cart.
- TORO720 48V 15A Smart Charger for Yamaha Drive and G29 48V
Same plug. Battery profile confirmed with us before it ships. TORO720 15A smart charger with a battery temperature sensor.
$599.00View - SPE ChargePlus Yamaha Drive / G29 48V Golf Cart Battery Charger, Flooded Lead-Acid
Same plug, set up for flooded lead-acid batteries.
$479.00View - SPE ChargePlus Yamaha Drive / G29 48V Golf Cart Battery Charger, AGM
Same plug, set up for AGM batteries.
$479.00View - SPE ChargePlus Yamaha Drive / G29 48V Golf Cart Battery Charger, Lithium
Same plug, set up for lithium batteries.
$479.00View
Warranty
Manufacturer terms apply. Contact us before ordering if warranty coverage is material to your purchase.
Manufacturer part reference
- Manufacturer part number
- 24-TORO720-4815YDRELI
- GCL SKU
- 24-TORO720-4815YDRELI
