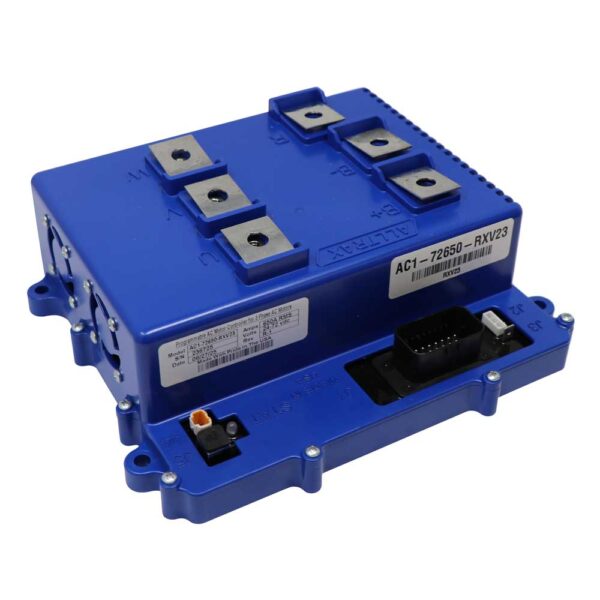

Alltrax AC1 650A Controller for E-Z-GO RXV 23-Pin
- Alltrax AC1 650A controller-only SKU for E-Z-GO RXV with Danaher 23-pin control
- E-Z-GO RXV model years 2008-2011 with the Danaher factory AC controller and 23-pin connector.
- USB programmable; cart-specific connector/application
- Fitment verification available before ordering
Controller only$1,110.00
Express checkout options available at checkout
Not sure it fits? Find the controller that fits your cart in the Replacement Controller Finder.
- Free ground shipping over $199, lower 48. No sales tax.
- 30 day returns
- Email support
Overview
This Alltrax AC1 controller is the 650A application for E-Z-GO RXV with Danaher 23-pin control. It is a cart-specific AC drive component, so identify the existing controller and connector before ordering.
This is the controller-only SKU. It is not a complete motor conversion kit.
- Voltage
- 24-72V controller family
- Controller
- 650A
Compatibility
Fits
- E-Z-GO
- Voltage
- 24-72V controller family
Does not fit
- RXV carts with the Curtis 35-pin controller
- E-Z-GO RXV ELiTE carts with the factory Samsung lithium system
- Carts that still run a factory DC drive system
Not certain? Send us the cart model, pack voltage, and a clear photo of the controller label and main connector. We will verify the application before you order. support@golfcartlab.com
How to confirm it fits
Confirm the cart make, model and year.
Confirm pack voltage and whether the existing drive is AC or DC.
Read the controller label and count the main connector pins where the application calls for 23 or 35 pins.
Send us label and connector photos if any item is unclear.
Buying guide: A Beginner’s Guide to Replacing a Failed Golf Cart Controller
What's in the box
- One Alltrax AC1 650A controller with the 23-pin RXV connector
Completes the install
Optional
Specifications
- Alltrax
- 88-AC1-72650-RXV23
- AC1
- 650A for 30 seconds
- 24-72V models; application limits above still apply
- USB from a Windows computer; mobile app availability depends on controller build and current Alltrax support
- ABS thermal-plastic enclosure
- New
- 2-year Alltrax AC controller warranty
Shipping weight and box dimensions: not published. We confirm them before dispatch.
Requirements and install notes
Match the existing controller label and connector before installation.
Disconnect the battery pack and follow the Alltrax application manual.
Use correctly rated cables, fuse, contactor and mounting hardware for the application.
Have a qualified golf cart technician install and program the controller if you are not comfortable working on the traction system.
FAQ
Which carts does this controller fit?
The E-Z-GO RXV from 2008 to 2011 with the Danaher factory AC controller and its 23 pin connector. RXV carts from 2012 on use the Curtis 35 pin controller and need the 35 pin version. It does not fit an RXV ELiTE with the Samsung lithium system.
Is this a complete kit?
No. It is the controller only, with the 23 pin RXV connector. The mounting bracket, wiring kit and FN-KS are not included. For the full package, choose the AC1 kit for RXV Danaher 23 pin.
How do I tell 23 pin from 35 pin?
Count the pins on the main controller connector. 23 pins means the Danaher controller on 2008 to 2011 carts, which this part fits. 35 pins means the Curtis controller, which needs the 35 pin version.
How is it programmed?
Programming is over USB from a Windows computer. Whether the phone app works depends on the controller build and current Alltrax support.
Warranty
Alltrax publishes a 2-year warranty for AC motor controllers. Proof of purchase is required. Incorrect application, wiring, voltage or installation can void coverage.
Manufacturer part reference
- Manufacturer part number
- 88-AC1-72650-RXV23
- GCL SKU
- 88-AC1-72650-RXV23
