Alltrax AC1 650A Kit for E-Z-GO RXV Danaher 23-Pin
- Alltrax AC1 650A AC-to-AC upgrade kit for E-Z-GO RXV with Danaher 23-pin control
- E-Z-GO RXV model years 2008-2011 with the Danaher factory AC controller and 23-pin connector.
- USB programmable; cart-specific connector/application
- Fitment verification available before ordering
Complete kit$1,250.00
Welcome offer eligible. Add to cart to activate $40 off.
Express checkout options available at checkout
Not sure it fits? Find the kit that fits your cart in the AC Conversion Kit Finder.
- Free ground shipping over $199, lower 48. No sales tax.
- 30 day returns
- Email support
Overview
This Alltrax AC1 kit is the 650A application for E-Z-GO RXV with Danaher 23-pin control. It is a cart-specific AC drive component, so identify the existing controller and connector before ordering.
This is an AC-to-AC controller upgrade kit. It retains the cart's existing AC motor.
- Voltage
- 24-72V controller family
- Controller
- 650A
Compatibility
Fits
- E-Z-GO
- Voltage
- 24-72V controller family
Does not fit
- RXV carts with the Curtis 35-pin controller
- E-Z-GO RXV ELiTE carts with the factory Samsung lithium system
- Carts that still run a factory DC drive system
Not certain? Send us the cart model, pack voltage, and a clear photo of the controller label and main connector. We will verify the application before you order. support@golfcartlab.com
How to confirm it fits
Confirm the cart make, model and year.
Confirm pack voltage and whether the existing drive is AC or DC.
Read the controller label and count the main connector pins where the application calls for 23 or 35 pins.
Send us label and connector photos if any item is unclear.
Buying guide: A Beginner’s Guide to Choosing a Golf Cart Conversion Kit

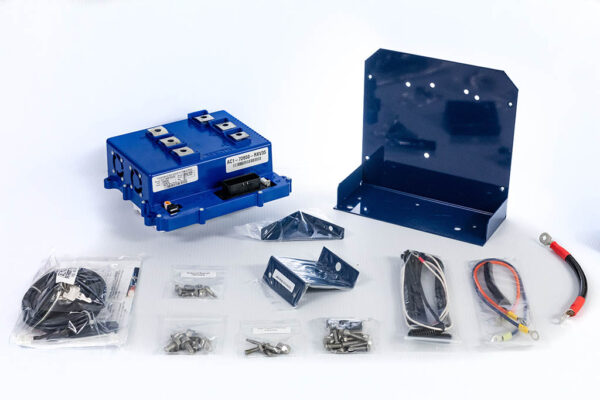

What's in the box
- Alltrax AC1 RXV controller with 23-pin Danaher connector
- FN-KS function control box
- Mounting kit
- Wiring kit
Completes the install
Optional
Specifications
- Alltrax
- 64-AC1-RXV23-KIT
- AC1
- 650A for 30 seconds
- 24-72V models; application limits above still apply
- USB from a Windows computer; mobile app availability depends on controller build and current Alltrax support
- ABS thermal-plastic enclosure
- New
- 2-year Alltrax AC controller warranty
Shipping weight and box dimensions: not published. We confirm them before dispatch.
Requirements and install notes
Match the existing controller label and connector before installation.
Disconnect the battery pack and follow the Alltrax application manual.
Use correctly rated cables, fuse, contactor and mounting hardware for the application.
Have a qualified golf cart technician install and program the controller if you are not comfortable working on the traction system.
FAQ
Which E-Z-GO carts does this kit fit?
The RXV from 2008 to 2011 with the Danaher factory AC controller and its 23 pin connector. RXV carts from 2012 on use the Curtis 35 pin controller, and the RXV ELiTE with the Samsung lithium system is not covered.
Does the kit include a motor?
No. It is an AC to AC controller upgrade and the RXV keeps its factory AC motor. The kit has the AC1 controller with the 23 pin Danaher connector, the FN-KS function control box, a mounting kit and a wiring kit.
How do I check my connector?
Count the pins on the main controller connector. 23 pins means this kit. 35 pins means the Curtis controller on 2012 and newer carts.
How is it programmed?
Programming is over USB from a Windows computer. Whether the phone app works depends on the controller build and current Alltrax support.
Warranty
Alltrax publishes a 2-year warranty for AC motor controllers. Proof of purchase is required. Incorrect application, wiring, voltage or installation can void coverage.
Manufacturer part reference
- Manufacturer part number
- 64-AC1-RXV23-KIT
- GCL SKU
- 64-AC1-RXV23-KIT
