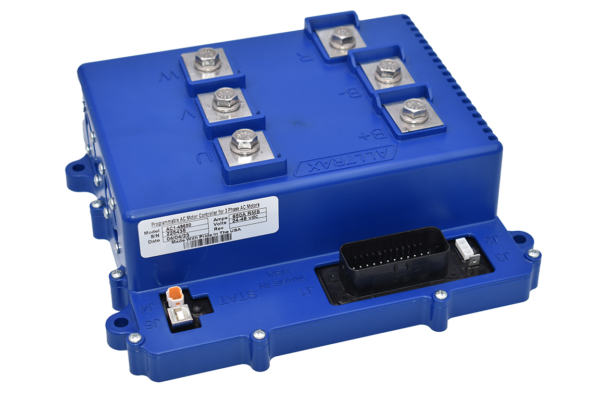

Alltrax AC1 650A Controller for Yamaha G19/G22
- Alltrax AC1 650A controller-only SKU for Yamaha G19/G22 AC1 application
- A Yamaha G19 or G22 already converted to an Alltrax AC1 drive with the MORIC 23-pin application. The exact source does not publish a year range.
- USB programmable; cart-specific connector/application
- Fitment verification available before ordering
Express checkout options available at checkout
Not sure it fits? Find the controller that fits your cart in the Replacement Controller Finder.
- Free ground shipping over $199, lower 48. No sales tax.
- 30 day returns
- Email support
Overview
This Alltrax AC1 controller is the 650A application for Yamaha G19/G22 AC1 application. It is a cart-specific AC drive component, so identify the existing controller and connector before ordering.
This is the controller-only SKU. It is not a complete motor conversion kit.
- Voltage
- 24-72V controller family
- Controller
- 650A
Compatibility
Fits
- Yamaha
- Voltage
- 24-72V controller family
Does not fit
- Stock Yamaha G19/G22 carts that still use a DC motor and factory DC drive system
- Installations whose existing controller and 23-pin application have not been identified
Not certain? Send us the cart model, pack voltage, and a clear photo of the controller label and main connector. We will verify the application before you order. support@golfcartlab.com
How to confirm it fits
Confirm the cart make, model and year.
Confirm pack voltage and whether the existing drive is AC or DC.
Read the controller label and count the main connector pins where the application calls for 23 or 35 pins.
Send us label and connector photos if any item is unclear.
Buying guide: A Beginner’s Guide to Replacing a Failed Golf Cart Controller
What's in the box
- One Alltrax AC1 650A controller for the Yamaha G19/G22 MORIC 23-pin application
Completes the install
Optional
Specifications
- Alltrax
- 88-AC1-72650-G19
- AC1
- 650A for 30 seconds
- 24-72V models; application limits above still apply
- USB from a Windows computer; mobile app availability depends on controller build and current Alltrax support
- ABS thermal-plastic enclosure
- New
- 2-year Alltrax AC controller warranty
Shipping weight and box dimensions: not published. We confirm them before dispatch.
Requirements and install notes
Match the existing controller label and connector before installation.
Disconnect the battery pack and follow the Alltrax application manual.
Use correctly rated cables, fuse, contactor and mounting hardware for the application.
Have a qualified golf cart technician install and program the controller if you are not comfortable working on the traction system.
FAQ
Which carts does this controller fit?
A Yamaha G19 or G22 that has already been converted to an Alltrax AC1 drive using the Moric 23 pin application. It does not fit a stock G19 or G22 that still runs its DC motor and factory DC controller.
Is this a complete kit?
No. It is a bare replacement controller for the G19 and G22 Moric 23 pin application. No motor or conversion hardware comes with it.
Can I use it to convert my DC G19 or G22?
No. This part replaces the controller in a G19 or G22 that already runs an AC1 drive. Check for the 23 pin application on your current controller label.
How is it programmed?
Programming is over USB from a Windows computer. Whether the phone app works depends on the controller build and current Alltrax support.
Warranty
Alltrax publishes a 2-year warranty for AC motor controllers. Proof of purchase is required. Incorrect application, wiring, voltage or installation can void coverage.
Manufacturer part reference
- Manufacturer part number
- 88-AC1-72650-G19
- GCL SKU
- 88-AC1-72650-G19
