Lithium Rhino 76V 170Ah Godzilla LiFePO4 Golf Cart Battery Bundle
- Fits 72V vehicles with sufficient battery-tray space and compatible controller demand
- 76.8V 170Ah LiFePO4; 20.7 x 17.9 x 12.6 in; approximately 209 lb
- Lithium Rhino 76.8V 170Ah LiFePO4 battery, Lithium-rated fast charger, DC-DC converter, State-of-charge display, Mounting hardware and battery cables
- Ground freight is charged separately; voltage, tray fit and controller demand must be confirmed
Welcome offer eligible. Add to cart to activate $100 off.
Express checkout options available at checkout
Not sure it fits? Find the pack that fits your cart in the Lithium Battery Bundle Finder.
- 8 years warranty
- Battery LTL freight calculated at checkout. No sales tax.
- 30 day returns
- Email support
Overview

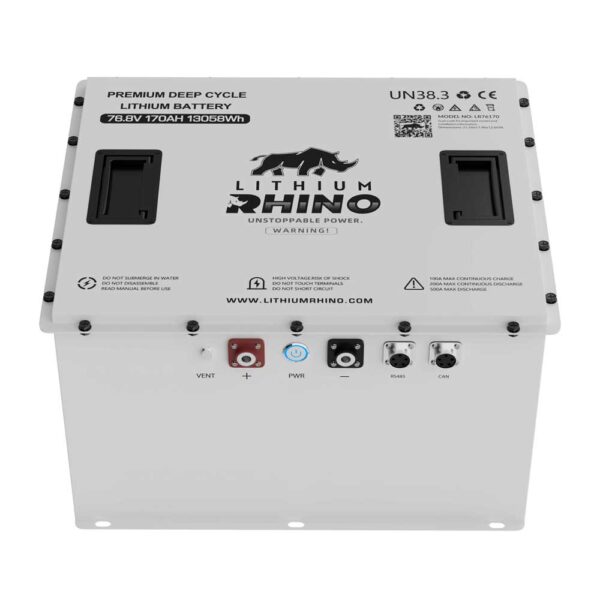

This Lithium Rhino 76.8V 170Ah LiFePO4 conversion bundle provides 13,056Wh in a 20.7 x 17.9 x 12.6 in enclosure weighing approximately 209 lb.
This model includes battery heating for cold-weather charging. Fitment depends on voltage, physical clearance, cable routing and controller demand, not the cart badge alone.
- Voltage
- 76.8V
- Bluetooth app
- Built in
Compatibility
Fits
- Golf cart / LSV 72V system with adequate tray clearance
- Stock controller
- Controller demand must remain within battery limits
- Voltage
- 76.8V
- Years
- Verify by measurement
Measure for 20.7 x 17.9 x 12.6 in; 209 lb battery
Does not fit
- Any system not designed for 72V nominal voltage
- Battery trays smaller than the published enclosure
- Existing lead-acid chargers or any charger not approved for this LiFePO4 pack
Not listed here? Contact us to verify fitment before you order. support@golfcartlab.com
How to confirm it fits
Confirm the vehicle is a 72V system.
Measure the available tray and cable clearance against 20.7 x 17.9 x 12.6 in.
Confirm the controller current demand, terminal layout and approved charger before ordering.
Buying guide: A Beginner’s Guide to Replacing a Golf Cart Battery Pack
What's in the box
- Lithium Rhino 76.8V 170Ah LiFePO4 battery
- Lithium-rated fast charger
- DC-DC converter
- State-of-charge display
- Mounting hardware and battery cables
Specifications
- Brand
- Lithium Rhino
- Chemistry
- Lithium iron phosphate (LiFePO4)
- Nominal voltage
- 76.8V
- Capacity
- 170Ah
- Energy
- 13,056Wh
- Enclosure rating
- IP65
- Maximum continuous discharge
- 300A
- Peak discharge
- 500A
- Built-in heating
- Yes
- Dimensions
- 20.7 x 17.9 x 12.6 in
- Approximate weight
- 209 lb
- Bluetooth app
- Yes
- Condition
- New
- Warranty
- 8 years
Published battery dimensions: 20.7 x 17.9 x 12.6 in. Approximate battery weight: 209 lb. Ground battery freight is charged separately and confirmed before dispatch.
Requirements and install notes
Disconnect and isolate the traction pack before removing the old batteries.
Use the supplied lithium charger for bundle SKUs; never reuse an unapproved lead-acid charger.
Secure the battery and route cables so terminals cannot short. Installation should be completed by a qualified golf-cart technician.
Confirm 72V vehicle system, tray clearance of at least 20.7 x 17.9 x 12.6 in, terminal/cable routing and controller current demand before ordering.
Other options
Other Lithium Rhino 76V packs. Measure your tray before you choose a size.
- Lithium Rhino 76V 105Ah LiFePO4 Golf Cart Battery Bundle
105Ah at the same 76V: less range, lower price.
$3,449.00View
Warranty
Lithium Rhino batteries carry an 8-year manufacturer warranty: six years complete coverage followed by two prorated years with a $500 deductible. Registration, proof of purchase and the manufacturer terms apply. Labour and damage from incorrect installation, charging or wiring are not covered.
Manufacturer part reference
- Manufacturer part number
- 113-LR76V170AH
- GCL SKU
- 113-LR76V170AH
