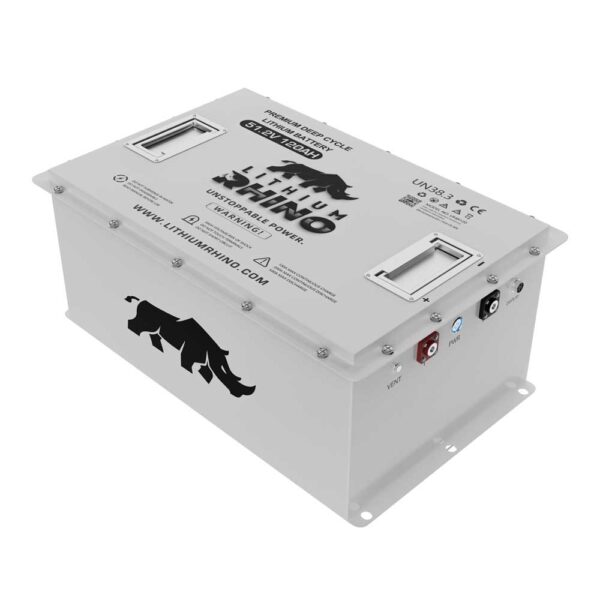

Lithium Rhino 48V 120Ah Heated LiFePO4 Golf Cart Battery Bundle
- Fits 48V vehicles with sufficient battery-tray space and compatible controller demand
- 51.2V 120Ah LiFePO4; 22.1 x 14.6 x 9.3 in; approximately 120 lb
- Lithium Rhino 51.2V 120Ah LiFePO4 battery, Lithium-rated fast charger, DC-DC converter, State-of-charge display, Mounting hardware and battery cables
- Ground freight is charged separately; voltage, tray fit and controller demand must be confirmed
Welcome offer eligible. Add to cart to activate $80 off.
Express checkout options available at checkout
Not sure it fits? Find the pack that fits your cart in the Lithium Battery Bundle Finder.
- 8 years warranty
- Battery LTL freight calculated at checkout. No sales tax.
- 30 day returns
- Email support
Overview
This Lithium Rhino 51.2V 120Ah LiFePO4 conversion bundle provides 6,144Wh in a 22.1 x 14.6 x 9.3 in enclosure weighing approximately 120 lb.
This model includes battery heating for cold-weather charging. Fitment depends on voltage, physical clearance, cable routing and controller demand, not the cart badge alone.
- Voltage
- 51.2V
- Bluetooth app
- Built in
Compatibility
Fits
- Golf cart / LSV 48V system with adequate tray clearance
- Stock controller
- Controller demand must remain within battery limits
- Voltage
- 51.2V
- Years
- Verify by measurement
Measure for 22.1 x 14.6 x 9.3 in; 120 lb battery
Does not fit
- Any system not designed for 48V nominal voltage
- Battery trays smaller than the published enclosure
- Existing lead-acid chargers or any charger not approved for this LiFePO4 pack
Not listed here? Contact us to verify fitment before you order. support@golfcartlab.com
How to confirm it fits
Confirm the vehicle is a 48V system.
Measure the available tray and cable clearance against 22.1 x 14.6 x 9.3 in.
Confirm the controller current demand, terminal layout and approved charger before ordering.
Buying guide: A Beginner’s Guide to Replacing a Golf Cart Battery Pack
What's in the box
- Lithium Rhino 51.2V 120Ah LiFePO4 battery
- Lithium-rated fast charger
- DC-DC converter
- State-of-charge display
- Mounting hardware and battery cables
Specifications
- Brand
- Lithium Rhino
- Chemistry
- Lithium iron phosphate (LiFePO4)
- Nominal voltage
- 51.2V
- Capacity
- 120Ah
- Energy
- 6,144Wh
- Enclosure rating
- IP65
- Maximum continuous discharge
- 200A
- Peak discharge
- 500A
- Built-in heating
- Yes
- Dimensions
- 22.1 x 14.6 x 9.3 in
- Approximate weight
- 120 lb
- Bluetooth app
- Yes
- Condition
- New
- Warranty
- 8 years
Published battery dimensions: 22.1 x 14.6 x 9.3 in. Approximate battery weight: 120 lb. Ground battery freight is charged separately and confirmed before dispatch.
Requirements and install notes
Disconnect and isolate the traction pack before removing the old batteries.
Use the supplied lithium charger for bundle SKUs; never reuse an unapproved lead-acid charger.
Secure the battery and route cables so terminals cannot short. Installation should be completed by a qualified golf-cart technician.
Confirm 48V vehicle system, tray clearance of at least 22.1 x 14.6 x 9.3 in, terminal/cable routing and controller current demand before ordering.
FAQ
Which carts does this battery fit?
Any 48V golf cart or LSV with tray room for a battery of 22.1 x 14.6 x 9.3 in, about 120 lb. It replaces a 48V lead-acid pack, such as six 8V or four 12V batteries, as one unit. A 36V or 72V cart needs a different pack.
Will it handle my controller?
It delivers 200A continuous and 500A peak. Compare those figures with your controller's rating, especially if the cart runs a high-amp upgrade controller.
What comes in the bundle?
The 51.2V 120Ah battery, a lithium-rated fast charger, a DC-DC converter for 12V accessories, a state-of-charge display, and the mounting hardware and battery cables. Your old lead-acid charger is not suitable for this pack.
Does it charge in freezing weather?
Yes. This model has built-in battery heating, so it can charge in cold weather, which suits a cart stored in an unheated garage over winter.
Other options
Other Lithium Rhino 48V packs. Measure your tray before you choose a size.
- Lithium Rhino 48V 120Ah LiFePO4 Golf Cart Battery Bundle
The same 120Ah 48V capacity.
$2,749.00View - Lithium Rhino 48V 105Ah CUBE LiFePO4 Golf Cart Battery Bundle
105Ah at the same 48V: less range, lower price.
$2,499.00View - Lithium Rhino 48V 170Ah Goliath LiFePO4 Golf Cart Battery Bundle
170Ah at the same 48V: more range.
$3,699.00View - Lithium Rhino 48V 170Ah Battery Only LiFePO4 Golf Cart Battery
170Ah at the same 48V: more range. Battery only: no charger, DC-DC converter or display in the box.
$3,099.00View
Warranty
Lithium Rhino batteries carry an 8-year manufacturer warranty: six years complete coverage followed by two prorated years with a $500 deductible. Registration, proof of purchase and the manufacturer terms apply. Labour and damage from incorrect installation, charging or wiring are not covered.
Manufacturer part reference
- Manufacturer part number
- 113-LR51V120AH-H
- GCL SKU
- 113-LR51V120AH-H
