Curtis 1204M-4201 Programmable Series Controller, 24/36V 275A
- Replaces a controller whose label reads Curtis 1204M-4201
- New Curtis programmable controller for series wound motors, 24 to 36V and 275A
- Universal logic board supports ten throttle types, from 0-5k pot boxes to ITS
- Does not fit: carts running a 48V pack
Express checkout options available at checkout
Not sure it fits? Find the controller that fits your cart in the Replacement Controller Finder.
- Free ground shipping over $199, lower 48. No sales tax.
- 30 day returns
- Email support
Overview
The Curtis 1204M-4201 is a new 24 to 36V, 275A programmable controller for series wound motors. The M models carry a universal logic board that supports ten throttle types and high pedal disable options, set with a Curtis programmer.
We list it by exact label match. It replaces a controller whose label reads Curtis 1204M-4201. Curtis lists this exact model in its manual at 24 to 36V and 275A for 2 minutes, 200A for 5 minutes and 125A for 1 hour.

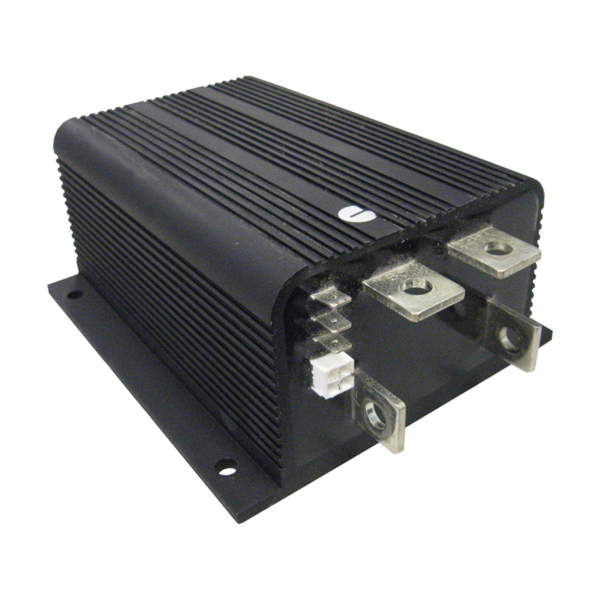

Curtis names golf cars, industrial vehicles and light on-road vehicles as uses for the M series. The case is sealed to IP54, the plug braking diode is inside the controller, and a status LED or a programmer connects to the 4-pin J4 connector.
Curtis programmable controllers are set up for the vehicle they go into. After you order we email you to confirm your vehicle and pack voltage, so it arrives set up for it.
- Voltage
- 24V or 36V
- Controller
- 275A
Manuals and documents
Compatibility
Fits
- Universal by controller Vehicles whose controller label reads Curtis 1204M-4201
- Stock controller
- Curtis 1204M-4201
- Voltage
- 24V or 36V
- Years
- Identify by controller
Series wound motor; throttle type set by programming
Does not fit
- Carts whose controller label reads something other than Curtis 1204M-4201
- Carts running a 48V pack, because this is a 24 to 36V controller
- Separately excited (regen) motors, which take a SepEx controller
- AC drive carts
- Gas carts
Have a 1204M with a different number on the label? Send us a photo and we will tell you what matches. support@golfcartlab.com
How to confirm it fits
Read the label on your existing controller. This part replaces a Curtis 1204M-4201.
Check the pack voltage. This controller is for 24V and 36V packs.
Compare the mounting space with the drawing: 173 x 146 mm, with four holes 133.3 x 130.3 mm apart.
Send us a photo of the label if it is hard to read and we will match it for you.
Buying guide: A Beginner’s Guide to Replacing a Failed Golf Cart Controller
What's in the box
- One Curtis 1204M-4201 controller, new
Specifications
- Brand
- Curtis
- Manufacturer part number
- 1204M-4201
- Type
- Programmable controller for series wound motors
- Nominal battery voltage
- 24V or 36V
- Current ratings
- 275A for 2 minutes, 200A for 5 minutes, 125A for 1 hour
- Throttle types
- 2-wire 0-5k, 5k-0, 1k-0, 4.6k-0 and 5.5k-0; 0-5V, 6.3-10.6V and 6-12V; ITS; 3-wire 0-5k potentiometer
- PWM operating frequency
- 15.6 kHz
- Power terminals
- B+, B-, A2 and M- tin-plated copper bus bars, M8 bolts
- Control terminals
- Four 6.35 mm push-on terminals (J1, J2, J3 and J5) and the 4-pin J4 connector
- Programmer and status LED connector
- J4, 4-pin Molex Mini-Fit Jr.
- Diagnostics
- Status LED output flashes two digit fault codes
- Recommended cable
- 25 mm2 (4 AWG) or heavier for the battery and motor cables
- Operating ambient temperature
- -40 to 50 C
- Environmental rating
- Electronics sealed to IP54
- Weight
- 2.3 kg (5.1 lb)
- Dimensions (L x W x H)
- 173 x 146 x 77 mm (6.8 x 5.75 x 3.0 in.)
- Mounting
- Four 7.2 mm holes for M6 bolts, 133.3 x 130.3 mm apart
- Condition
- New
Requirements and install notes
Disconnect the battery pack and lift the drive wheels off the ground before you touch any terminal.
Label the four heavy cables (B+, B-, A2 and M-) before you take them off the old controller, so every one goes back on the same bus bar.
Use two wrenches on each bus bar bolt. Curtis warns that tightening with a single wrench can strain the internal connections and crack the seals around the bus bars.
The motor armature connects directly to B+ and A2, because the plug diode inside the controller sits between those two terminals. Reversing is done on the field.
Throttle wires go on J2 and J3. Which throttle the controller expects is a programmed setting, so a replacement has to carry the same throttle type as the controller it replaces.
J5 is either the main contactor driver or the reverse input, depending on a programmed setting. Wire it the way the old controller was wired.
Fasten the controller to a clean, flat metal surface with four M6 bolts. The surface is part of the heat sinking.
With a status LED on J4, a steady flash means no fault. A fault shows as a two digit code, and the code table is in the manual above.
FAQ
What does the M in 1204M mean?
The M models have a universal logic board. One controller supports ten throttle types and high pedal disable options, chosen by programming, where the older 1204 was built for one throttle.
Which throttles can it work with?
Two wire pot boxes (0-5k, 5k-0 and others), 3-wire 0-5k potentiometers, voltage throttles and the ITS sensor. The throttle type is a programmed setting, so tell us what your vehicle uses when we email you after the order.
Can I use it in place of a different 1204M part number?
We list it only as a replacement for a controller labelled 1204M-4201. Other 1204M models are built for other voltages. Send us your label and we will tell you what matches.
Will it run on a 48V pack?
No. The 1204M-4201 is a 24 to 36V controller.
Warranty
This part is new and covered by our returns and refunds policy. We handle any claim for a defective part directly with you. A controller damaged by a shorted motor, a failed solenoid or incorrect wiring is not covered, which is why the checks above come first.
Manufacturer part reference
- Manufacturer part number
- 1204M-4201
- GCL SKU
- 76-1204M-4201
