TORO720 48V 15A Smart Charger with 3/8 in Ring Terminals
- 48V 15A off-board smart charger, 360 to 720W
- Supplied with the Ring terminal 3/8 in connector, no adapter needed
- Battery profile: tell us your battery and we match the charger to your pack
- Bluetooth monitoring, temperature sensor, IP66 sealed housing
- Confirm the pack is 48V and the receptacle matches before ordering
Express checkout options available at checkout
Not sure it fits? Send us a photo of your cart and we will check. Buying guide: A Beginner’s Guide to Replacing a Golf Cart Charger
- Free ground shipping over $199, lower 48. No sales tax.
- 30 day returns
- Email support
Overview

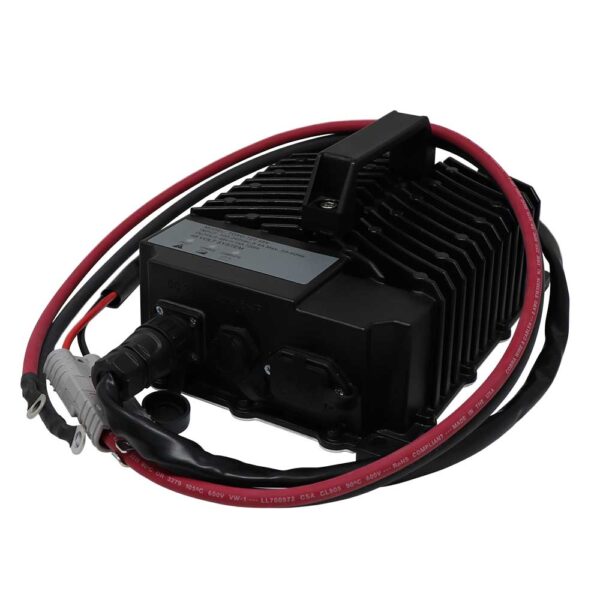

The TORO720 is a 48V 15A off-board smart charger supplied with the Ring terminal 3/8 in pigtail connector, so it plugs straight into a Universal receptacle without an adapter. Output is 360 to 720W depending on pack state.
The manufacturer does not publish a specific battery profile for this connector option. We will not guess one. Send us your battery make, model and chemistry and we will match the correct unit to your pack.
The charger pairs to a phone over Bluetooth for charge monitoring, carries a battery temperature sensor and a 1.0A interlock signal, and is housed in a sealed IP66 case suitable for a damp garage or an outdoor charging bay.
Compatibility
Fits
Contact us to confirm before ordering
Does not fit
- Packs of any voltage other than 48V
- Carts with a receptacle other than the Ring terminal 3/8 in
- Any battery whose management system prohibits an external 15A charger
Not listed here? Contact us to verify fitment before you order. support@golfcartlab.com
How to confirm it fits
Measure the resting pack voltage and confirm a 48V system.
Identify the charge receptacle on the cart and match it to the Ring terminal 3/8 in.
Read the battery label to identify the chemistry.
Contact us with those details to confirm the right unit.
What is in the box
- One TORO720 48V 15A off-board charger
- Ring terminal 3/8 in pigtail connector, fitted
- Battery temperature sensor
Specifications
- Brand
- TORO720
- Manufacturer part number
- 24-TORO720-4815ONBD
- Pack voltage
- 48V
- Rated current
- 15A
- Output power
- 360 to 720W
- Connector
- Ring terminal 3/8 in
- Battery profile
- Contact us to verify
- Bluetooth monitoring
- Yes
- Temperature sensor
- Yes
- Interlock signal
- 1.0A
- Ingress protection
- IP66
- Protections
- Reverse polarity, over-temperature, over-current, over-voltage, charge timeout
- Condition
- New
- Warranty
- Manufacturer terms
Package weight and dimensions are confirmed before dispatch.
Requirements and install notes
Confirm the pack is 48V. Measure at the pack, not at a single battery.
Confirm the vehicle receptacle is the Ring terminal 3/8 in.
Contact us to confirm the correct battery profile for your pack before ordering.
Charge in a ventilated area and follow the battery manufacturer instructions.
Keep the charger housing clear of standing water despite the IP66 rating.
FAQ
Which carts does this charger fit?
48V packs wired for 3/8 in ring terminals, with no cart-specific plug. A cart with a factory receptacle is better served by the version with that plug fitted.
Will it charge my batteries?
It charges 48V packs, with the charge profile matched to your batteries. Send us the battery make, model and chemistry with your order and we will match the unit to your pack.
How fast does it charge?
It is rated at 15A, with 360 to 720W output depending on the state of the pack, and a battery temperature sensor adjusts charging to the conditions.
What is in the box?
The TORO720 charger with the 3/8 in ring terminal leads fitted and a battery temperature sensor. It pairs to a phone over Bluetooth so you can watch the charge, and the case is sealed to IP66.
Warranty
Manufacturer terms apply. Contact us before ordering if warranty coverage is material to your purchase.
Manufacturer part reference
- Manufacturer part number
- 24-TORO720-4815ONBD
- GCL SKU
- 24-TORO720-4815ONBD
