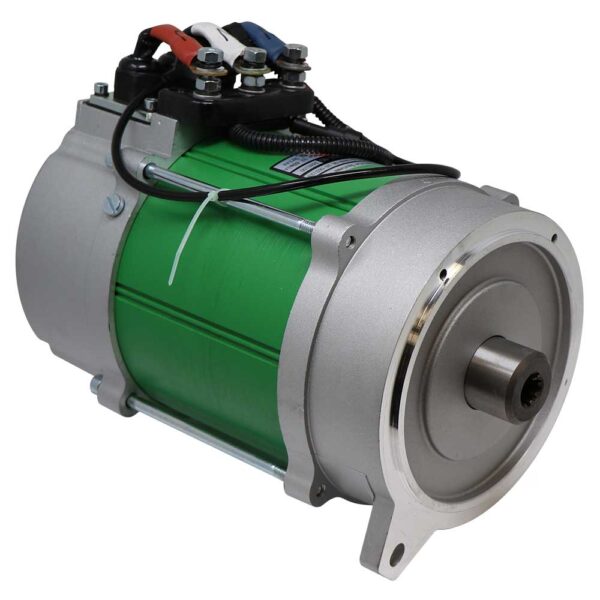

Navitas 5kW AC Motor, 10-tooth Spline for Club Car
- Fits Club Car carts with a 10-tooth spline gearbox and no motor brake; verify the 10-tooth spline and no motor-brake requirement
- 5kW AC induction motor with 10-tooth spline
- Navitas TAC2 required
- Non-returnable except for approved warranty claims; confirm fitment before ordering
Welcome offer eligible. Add to cart to activate $40 off.
Express checkout options available at checkout
Not sure it fits? Send us a photo of your cart and we will check. Buying guide: A Beginner’s Guide to Replacing a Failed Golf Cart Motor
- 12 months warranty
- Free ground shipping over $199, lower 48. No sales tax.
- 30 day returns
- Email support
Overview
This 5kW Navitas AC induction motor is a replacement for carts already converted to a compatible Navitas TAC2. It uses a 10-tooth gearbox spline and is for applications that do not use a motor brake.
Fitment is determined by controller family, spline count and parking-brake configuration, not by cart badge alone. Confirm all three before ordering because the motor is non-returnable except for an approved warranty claim.
- Voltage
- Controller-defined
- AC motor
- 5kW
Compatibility
Fits
- Club Car 10-tooth spline gearbox applications without a motor brake
- Stock controller
- Navitas TAC2
- Voltage
- Controller-defined
- Years
- Identify by drivetrain
Cart must already have a compatible Navitas conversion
Does not fit
- Any application with a motor brake
- Factory controller or any controller other than compatible Navitas TAC2
Not listed here? Contact us to verify fitment before you order. support@golfcartlab.com
How to confirm it fits
Identify the installed controller and confirm it is the required Navitas model.
Count the input-shaft splines and confirm 10-tooth.
Confirm that the application does not use an electronic motor brake.
What's in the box
- Navitas 5kW AC induction motor
Specifications
- Brand
- Navitas
- Manufacturer part number
- 10-000823
- Motor type
- AC induction
- Rated power
- 5kW
- Motor spline
- 10-tooth
- Electronic parking brake
- No
- Required controller
- Navitas TAC2
- Condition
- New
- Warranty
- 12 months
Shipping weight and box dimensions are confirmed before dispatch.
Requirements and install notes
Match the gearbox spline and parking-brake requirement before ordering. These motors are non-returnable except for approved warranty claims.
A compatible Navitas controller is required. The 4kW and 5kW motors use TAC2; the 7.5kW motors use TAC3 and require a TAC motor adapter sold separately.
Disconnect the traction pack and discharge the controller before installation. Motor work should be completed by a qualified golf cart technician.
Navitas TAC2 required; confirm 10-tooth spline and no motor brake.
Other options
Other power ratings with the same spline.
- Navitas 4kW AC Motor, 10-tooth Spline for Club Car
Same spline, rated 4kW. Check your Navitas controller supports the motor you choose.
$1,169.00View - Navitas 7.5kW AC Motor, 10-tooth Spline for Club Car
Same spline, rated 7.5kW. Check your Navitas controller supports the motor you choose.
$1,299.00View
Warranty
This Navitas motor carries a 12 month warranty from the ship date, handled by us. The motor is non-returnable except for an approved warranty claim, so confirm the spline, parking-brake requirement and controller before ordering. Proof of purchase is required. Labour and damage from incorrect installation are not covered.
Manufacturer part reference
- Manufacturer part number
- 10-000823
- GCL SKU
- 221-10000823
