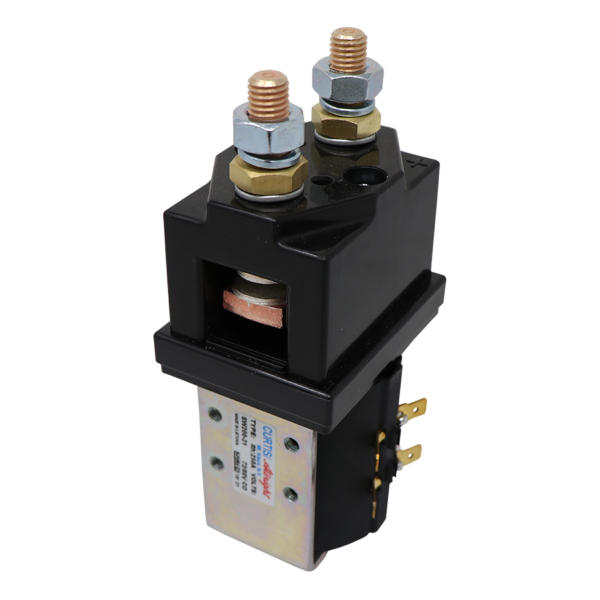

Albright SW200-21 72/80V Heavy-Duty Golf Cart Contactor, 250A
- Main contactor for 72V carts: 72/80V DC, continuous duty coil, 6.3 mm spade coil terminals and M10 studs
- Contacts rated up to 96V DC with magnetic blowouts, polarity sensitive; 250A interrupted, 400A uninterrupted
- Mounts on M5 tapped holes in the frame
- Does not fit: 48V control circuits (use the 48V Albright SW180B-1125)
Express checkout options available at checkout
Not sure it fits? Send us your cart setup and a photo of your solenoid, and we will check.
- Free ground shipping over $199, lower 48. No sales tax.
- 30 day returns
- Email support
Overview
The Albright SW200 is a bigger main contactor than the SW180 most golf carts use: M10 studs and a 250A interrupted, 400A uninterrupted thermal rating, against 150A and 200A for the SW180.
The SW200-21 has a 72/80V continuous duty coil, and its contacts are rated up to 96V DC with magnetic blowouts as standard. That makes it a main contactor for a 72V cart whose contactor coil is fed from the 72V pack.
The blowouts pull the arc off the silver alloy tips when the contacts open. They also make it polarity sensitive: the stud marked + goes to battery positive.
- Voltage
- 72V
Manuals and documents
Compatibility
Fits
- Universal by coil voltage Electric carts upgrading the main solenoid or contactor
- Voltage
- 72V
- Years
- Any
72/80V coil; 6.3 mm spade coil terminals
Does not fit
- 48V control circuits (use the 48V Albright SW180B-1125)
- Installs that cannot keep battery positive on the + marked stud, because the blowout magnets are polarity sensitive
- Gas carts
Not sure which one you have? Send us a photo of your old solenoid and its label and we will match it. support@golfcartlab.com
How to confirm it fits
Check the voltage that feeds the contactor coil: this is the 72/80V coil version.
Measure the mounting space: 153 x 61 x 72 mm.
Make sure your battery cable lugs fit M10 studs.
Tell us your controller and its amp rating if you want us to check the choice between this and the smaller SW180B.
What's in the box
- One Albright SW200-21 72/80V contactor
Specifications
- Albright
- SW200-21
- Albright SW200: single pole, single throw, normally open, double breaking main contacts
- 72/80V DC, continuous duty (label "72/80V CO")
- About 360 ohms (continuously rated 72V and 80V coil)
- About 13 to 21 W (continuously rated types)
- Pulls in at about 66% of rated coil voltage, drops out at 10 to 20%
- 96V DC
- Yes, standard. Polarity sensitive: the + marked stud goes to battery positive.
- 250A interrupted, 400A uninterrupted
- 455A interrupted, 730A uninterrupted
- 355A interrupted, 565A uninterrupted
- 300A interrupted, 480A uninterrupted
- 1500A at 96V DC (5 ms time constant); 600A at 96V DC resistive
- 40 mV at 250A
- Silver alloy tips, weld resistant
- M10, tighten to 13.4 to 14.6 Nm
- 6.3 mm (0.25 in.) spade terminals
- Four M5 tapped holes per side. Horizontal or vertical; if vertical, the main studs must point up.
- More than 5 million operations
- -40°C to 60°C (-40°F to 140°F)
- 153 x 61 x 72 mm (6.02 x 2.41 x 2.83 in.), studs included
- About 1400 g (1350 g contactor plus 50 g blowouts)
- New
Requirements and install notes
Disconnect the battery pack before you start. The SW200 is larger than a round stock solenoid, so plan the mounting spot and cable runs first.
Mount it with M5 screws in the tapped holes in the frame, four per side. If you mount it vertically, the main studs must point up.
Observe polarity: the + marked main stud goes to battery positive, the other to the controller B+.
The coil uses 6.3 mm (0.25 in.) spade terminals. Crimp insulated female spade connectors onto the two coil wires.
Measure the voltage that feeds the coil with the key on. Albright labels this coil for 72 to 80V. A full 72V lithium pack can sit above 80V, so if your reading is well above that, send it to us and we will check it.
Tighten the M10 main stud nuts to 13.4 to 14.6 Nm. Keep or refit a pre-charge resistor across the main studs if your controller uses one, and follow your controller maker on the coil diode.
FAQ
What does 72/80V mean on this contactor?
It is the coil voltage. The coil is wound for 72 to 80V and is continuously rated (the label reads 72/80V CO). The contacts themselves are rated up to 96V DC.
How does it compare with the SW180B?
The SW200 is the larger contactor: 250A interrupted and 400A uninterrupted thermal ratings against 150A and 200A, M10 studs against M8, and 1500A against 1000A fault breaking at 96V.
Will the coil handle a fully charged 72V lithium pack?
Albright labels the coil 72/80V continuous. A full 72V lithium pack can read above 80V, so measure the coil voltage with the key on and send it to us if it reads well above 80V.
Does it come with a bracket?
No bracket is listed with this part. The SW200 frame has M5 tapped holes on each side for direct mounting.
Warranty
This part is new and covered by our returns and refunds policy. We handle any claim for a defective part directly with you. Albright does not publish a separate warranty term for this part. Damage from wrong coil voltage, reversed polarity or over-tightened terminals is not covered.
Manufacturer part reference
- Manufacturer part number
- SW200-21
- GCL SKU
- 102-SW200-21
