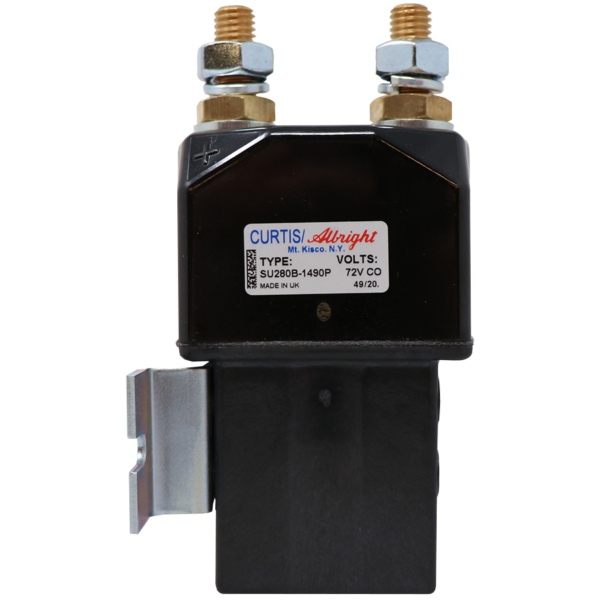

Albright SU280B-1490P 72V Sealed Golf Cart Contactor With Bracket
- Main contactor for 72V carts: 72V DC, continuous duty coil, 6.3 mm spade coil terminals and M10 studs
- Contacts rated up to 96V DC with magnetic blowouts, polarity sensitive; 250A interrupted, 350A uninterrupted
- Sealed to IP66, mounting bracket fitted
- Does not fit: 48V control circuits (use the 48V Albright SW180B-1125)
Express checkout options available at checkout
Not sure it fits? Send us your cart setup and a photo of your solenoid, and we will check.
- Free ground shipping over $199, lower 48. No sales tax.
- 30 day returns
- Email support
Overview
The Albright SU280BP is a sealed main contactor: the P means it is built to IP66, the B means magnetic blowouts. Together they give contacts rated up to 96V DC in a housing that keeps out water and dust.
The SU280B-1490P has a 72V continuous duty coil and comes with its mounting bracket fitted. Albright rates it 250A interrupted and 350A uninterrupted, with 635A uninterrupted at 30% duty.
It suits a 72V cart where the main contactor sits low or in the open and gets wet. The blowouts make it polarity sensitive: the stud marked + goes to battery positive.
- Voltage
- 72V
Manuals and documents
Compatibility
Fits
- Universal by coil voltage Electric carts upgrading the main solenoid or contactor
- Voltage
- 72V
- Years
- Any
72V coil, sealed IP66; 6.3 mm spade coil terminals
Does not fit
- 48V control circuits (use the 48V Albright SW180B-1125)
- Installs that cannot keep battery positive on the + marked stud, because the blowout magnets are polarity sensitive
- Gas carts
Not sure which one you have? Send us a photo of your old solenoid and its label and we will match it. support@golfcartlab.com
How to confirm it fits
Check the voltage that feeds the contactor coil: this is the 72V coil version.
Measure the mounting space: about 133 x 54 x 73 mm plus the bracket.
Make sure your battery cable lugs fit M10 studs.
Tell us your controller and its amp rating if you want us to check the choice between this and the SW200-21.
What's in the box
- One Albright SU280B-1490P 72V contactor
- Mounting bracket, fitted
Specifications
- Albright
- SU280B-1490P
- Albright SU280BP: single pole, single throw, normally open, sealed to IP66, double breaking main contacts
- 72V DC, continuous duty (label "72V CO")
- About 10 to 15 W (continuously rated types)
- Pulls in at about 66% of rated coil voltage, drops out at 10 to 25%
- 96V DC (SU280BP)
- Yes (the B in the part number). Polarity sensitive: the + marked stud goes to battery positive.
- IP66 (the P in the part number)
- 250A interrupted, 350A uninterrupted
- 450A interrupted, 635A uninterrupted
- 360A interrupted, 495A uninterrupted
- 300A interrupted, 415A uninterrupted
- 1500A at 80V DC (5 ms time constant); 525A at 96V DC resistive
- 40 mV at 250A
- Silver alloy tips, weld resistant
- M10, tighten to 13.4 to 14.6 Nm
- 6.3 mm (0.25 in.) spade terminals
- Bracket fitted on the right-hand side. Horizontal or vertical; if vertical, the main studs must point up.
- More than 3 million operations
- -40°C to 60°C (-40°F to 140°F)
- About 133 x 54 x 73 mm (5.20 x 2.13 x 2.87 in.)
- About 805 g (755 g contactor plus 50 g blowouts)
- New
Requirements and install notes
Disconnect the battery pack before you start. The housing is sealed, so the contactor mounts only by its bracket; the frame holes are not accessible.
Observe polarity: the + marked main stud goes to battery positive, the other to the controller B+.
The coil uses 6.3 mm (0.25 in.) spade terminals. Before you connect them, look for + and - marks: Albright offers built-in coil suppression on this series, which makes the coil polarity sensitive. If the terminals are marked, wire them to match.
Measure the voltage that feeds the coil with the key on. Albright labels this coil for 72 to 80V. A full 72V lithium pack can sit above 80V, so if your reading is well above that, send it to us and we will check it.
Tighten the M10 main stud nuts to 13.4 to 14.6 Nm. If you mount it vertically, the main studs must point up.
FAQ
What do the B and P in SU280B-1490P mean?
B is magnetic blowouts, which raise the maximum contact voltage to 96V DC and make the contactor polarity sensitive. P is IP66 environmental protection.
How does it compare with the SW200-21?
Both have 96V DC contacts and continuous 72V-class coils. The SU280BP is sealed to IP66, smaller and lighter (about 805 g against 1400 g). The SW200 has the higher uninterrupted rating (400A against 350A).
Is the coil continuous duty?
Yes. The label reads 72V CO, Albright's mark for a continuously rated coil.
Will it handle a fully charged 72V lithium pack?
The contacts are rated to 96V DC. For the coil, measure its supply with the key on and send us the reading if it is well above 72V nominal, and we will check it.
Warranty
This part is new and covered by our returns and refunds policy. We handle any claim for a defective part directly with you. Albright does not publish a separate warranty term for this part. Damage from wrong coil voltage, reversed polarity or over-tightened terminals is not covered.
Manufacturer part reference
- Manufacturer part number
- SU280B-1490P
- GCL SKU
- 102-SU280B-1490P
