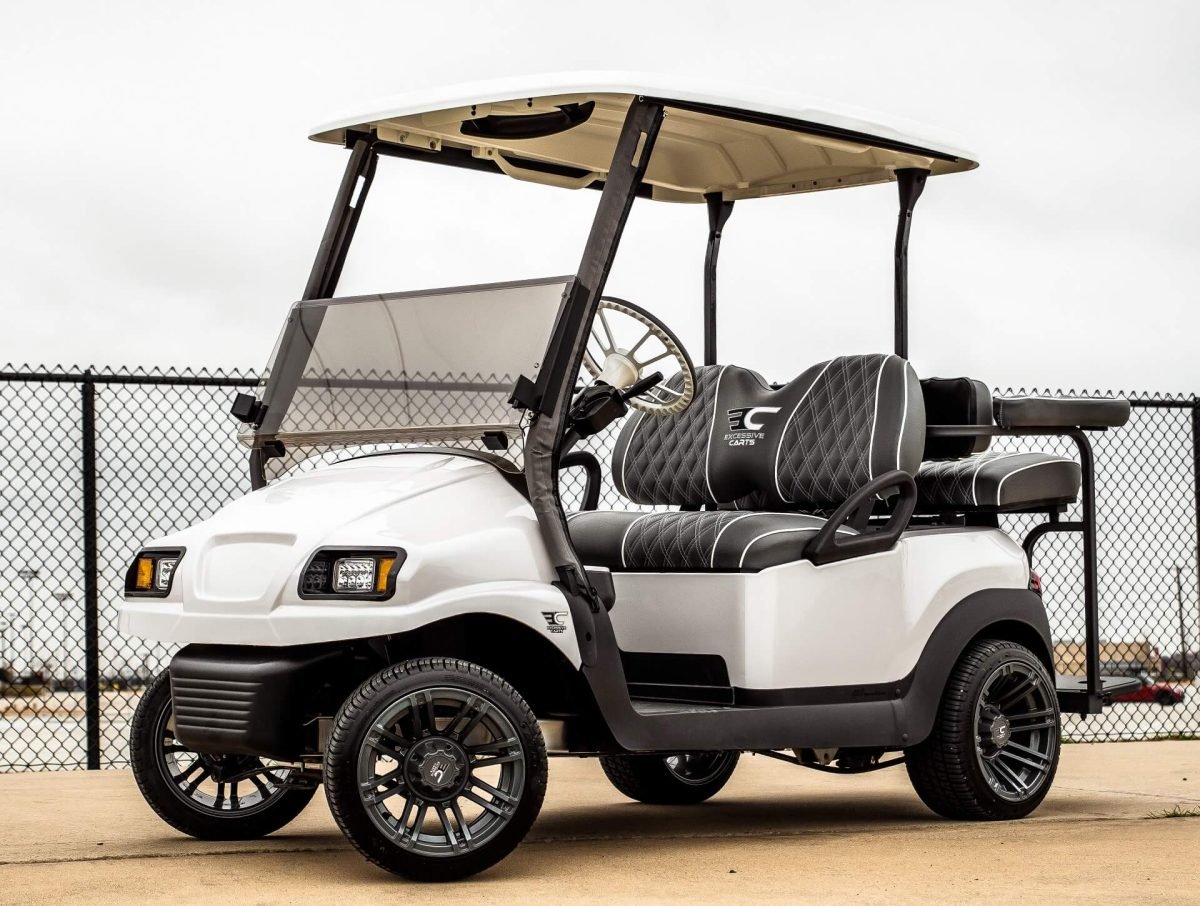

How to Wire Golf Cart Lights to Battery

Adding lights is one of the most popular golf cart upgrades, but it is also where many DIYers fry their accessories by tapping the wrong voltage. Learning how to wire golf cart lights to battery power correctly means delivering a clean 12V through a reducer, protected by a fuse and controlled by a switch.

Wire And Fuse Sizing Before Installation

Direct answer: power 12V lights from a regulated converter or dedicated 12V battery, then use a source-side fuse, correctly sized copper wire, a switch, and a relay when the switch is not rated for full lamp current. Do not use the traction controller or motor terminals as an accessory source, and do not use a partial-pack tap.

The table is a conservative planning reference for copper at 12V with about 3 percent maximum voltage drop and the return path included. Blue Sea’s sizing guide also requires checks for insulation temperature, bundling, ambient heat, and termination limits, so the exact installation can require larger wire. Use the light maker’s published current when available. If only watts are listed, divide watts by operating volts to estimate current.

1. Disconnect charging and isolate traction power using the cart manual.
2. Mount the DC converter in a dry, ventilated location and connect its input exactly as documented.
3. Place the output fuse close to the 12V source. Choose the smallest standard value that carries normal load without exceeding any wire, connector, switch, relay, or lamp rating.
4. Run positive and negative conductors together to a distribution point. Do not assume the frame is an approved return path.
5. Use the dash switch for lamp current only when its rating permits; otherwise use it to energize a relay coil.
6. Crimp, seal, support, and chafe-protect every connection, then test voltage at the lamp under load.

LED lamps usually draw less current than incandescent lamps for comparable output, but their drivers are polarity-sensitive and can produce an inrush. Size from the actual product label, not a generic LED assumption.

Step 1: Install a Voltage Reducer

A voltage reducer (DC-DC converter) takes your 36V/48V pack voltage and outputs a steady 12V for accessories. Mount it in a dry, ventilated spot and connect its input to the pack (or to a tap that sees full pack voltage). This single device is what makes safe lighting possible. Learn how reducers work in the universal voltage reducer guide.

Step 2: Add a Fuse and Switch to Wire Golf Cart Lights to Battery

From the reducer’s 12V positive output, run through an inline fuse (sized to your lights, often 5-15A) and a switch before reaching the lights. The fuse protects the circuit from shorts; the switch gives you control. Never skip the fuse, it is your protection against a wiring fault starting a fire.

Step 3: Connect the Lights and Set the Ground

Wire the lights’ positive leads to the switched, fused 12V line, and their negative leads to a solid ground, either the chassis (if metal and bonded) or the pack negative. LED lights draw less current and are the popular choice. Keep connections weatherproof with heat-shrink and proper connectors.

Wiring Tips and Safety Rules

1. Size the reducer for your total light wattage plus any other 12V accessories.
2. Use a relay if adding many high-draw lights.
3. Protect all connections from moisture.
4. Avoid an uneven pack drain, tap the full pack via the reducer, not a single battery, as explained in the auxiliary drain guide.

Why the Reducer Is Non-Negotiable

The single mistake that fries more lights than any other is tapping voltage from just one or two batteries in the pack to get 12V. It seems clever because a single 12V battery, or a pair of 6V batteries, does read about 12 volts, but it drains those batteries unevenly. In a series pack every battery must discharge equally, so pulling accessory current from only part of the string leaves those batteries chronically low, throws the whole pack out of balance, and shortens the life of the entire set. A voltage reducer solves this by drawing a small, even load across the full 36V or 48V pack and converting it down to a clean 12V. That is why it is not an optional upgrade but the core of a proper lighting job.

Sizing the Reducer and Fuse Correctly

Reducers are rated in amps or watts, and picking the right one keeps everything cool. Add up the draw of everything on the 12V circuit, headlights, tail lights, a horn, a radio, and any USB ports, then choose a reducer rated comfortably above that total so it is not running at its limit. A common streetworthy LED light kit draws only a few amps, so a 10 to 15 amp reducer is plenty, but if you add a light bar or a stereo, step up. Size the inline fuse to protect the wire, not just the light: a 5 to 15 amp fuse suits most LED setups, while heavier loads need a matched fuse and thicker wire. An oversized fuse defeats the purpose because it lets too much current flow before it blows.

Where to Tap on Common Carts

The cleanest input point for a reducer is the main pack positive and negative, and where those live depends on your cart. On an E-Z-GO TXT or RXV the main leads sit at the ends of the battery bank under the seat, easy to reach for a fused tap. A Club Car Precedent routes its main through the solenoid and, on OBC-equipped models, through the onboard computer, so take your reducer feed from the main pack terminals rather than downstream of the OBC to avoid confusing the charge sensing. Yamaha Drive and Drive2 carts also present their mains under the seat. Whatever the cart, always fuse the reducer input right at the pack so a chafed wire cannot short the full battery to the frame.

When to Add a Relay

A simple switch can handle a small LED kit, but once you add higher-draw lighting, a light bar, driving lights, or several accessories, wiring them all through a dash switch overloads that switch and causes it to overheat or arc. The fix is a relay: the dash switch carries only a tiny signal current to trigger the relay, while the relay itself carries the heavy load on short, thick wires straight from the fused 12V source to the lights. This keeps the switch cool, reduces voltage drop so your lights burn brighter, and lets you control a lot of wattage from a small, convenient button. For anything beyond basic marker lights, a relay is well worth the couple extra connections.

Troubleshooting Common Lighting Problems

If your new lights are dim, flickering, or dead, the diagnosis is usually straightforward. Dead lights with a good reducer output almost always point to a blown fuse or a bad ground, so check the fuse first and confirm your ground bolts to clean bare metal or the pack negative rather than a painted surface. Flickering under acceleration is a classic sign of a marginal ground or an undersized wire dropping voltage. Lights that were bright and then dimmed over weeks suggest you tapped part of the pack instead of using the reducer and are now draining those batteries unevenly. And if the reducer itself gets hot or shuts off, it is undersized for the load. Working through fuse, ground, wire gauge, and reducer capacity in that order will find nearly every lighting fault quickly.

For federal vehicle and equipment guidance, see the U.S. Department of Transportation.
