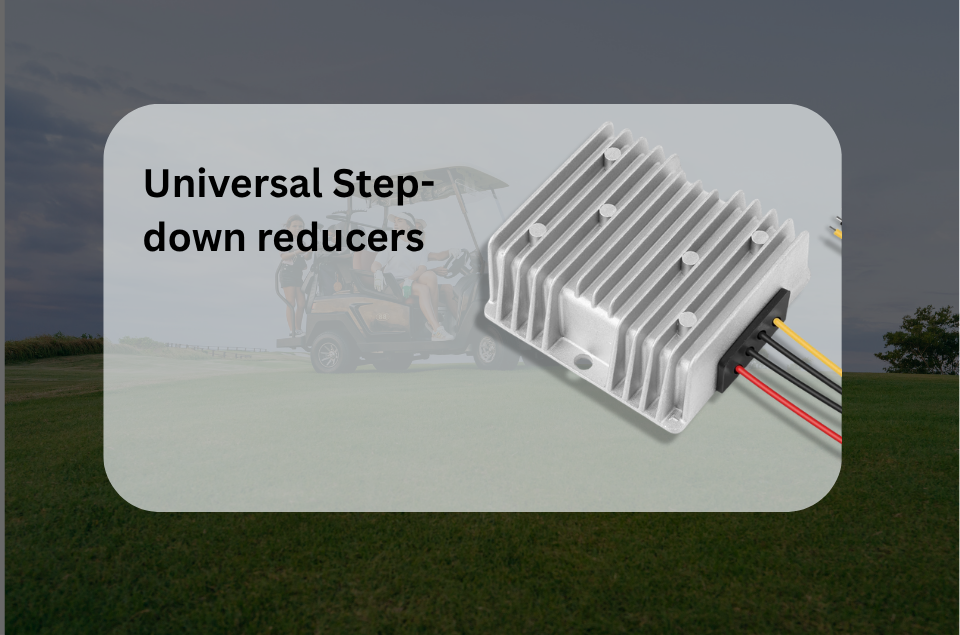

Proven Universal Voltage Reducers for Electric Golf Carts

01 : How DC-to-DC Step-Down Conversion Actually Works

Standard lead-acid and lithium battery packs operate at voltages that far exceed the requirements of common accessories like headlights, horns, and GPS units. In the past, hobbyists would simply “tap” two 6V batteries to grab a 12V signal. This is a fatal error for battery longevity. Because those two batteries are working harder than the rest of the string, they reach a lower state of charge faster, causing the charger to either overcharge the rest of the pack or undercharge the tapped cells.

Modern universal voltage reducers utilize high-frequency switching technology to step down voltage with over 90% efficiency. Unlike old linear regulators that dissipated excess energy as heat, these units use Pulse Width Modulation (PWM) to transform high-voltage DC into a clean, regulated 12V or 13.5V output. This ensures that every battery in your series string is discharged at the exact same rate, preserving the chemical balance of the pack.

One quirk worth knowing before you buy: a large share of the cheap import reducers sold as “30 amp” units are badly overrated. Bench testing repeatedly shows generic buck converters throttling or shutting down well below their printed rating, often around 12 to 15 amps of continuous draw, because the internal MOSFETs and toroid cannot shed the heat. Reputable names in the golf cart space, the Alltrax and Pollak style converters and the well-regarded DC-DC units used by lithium conversion shops, hold their rating far more honestly. If a listing shows a 30 amp figure but the housing is smaller than a deck of cards with no heat sink fins, treat the real number as roughly half. A related quirk on 72V builds is that many “48V” reducers are only rated to a 60V input ceiling, so a fully charged 72V lithium pack sitting near 87 volts will pop them on the first key-on.

02 : Choosing Between 5-Wire and 4-Wire Wiring

Selecting the right wiring protocol is a critical part of your technical build. A 4-wire unit is always active, meaning it creates a “parasitic drain” even when the cart is parked. For high-performance builds, we always recommend a 5-wire setup. The fifth wire acts as a trigger, connecting to the “cold” side of your key switch. This ensures the universal voltage reducers only pull current when the key is turned to the ‘ON’ position.

The trigger wire detail matters more than most builders expect. On EZGO TXT models from roughly 2010 onward, and on Club Car Precedent carts of the same era, the key switch and the accessory circuit are wired differently, so the correct trigger tap point is not always obvious. On a Precedent you generally want to trigger off the OBC or a key-hot lead rather than the pack itself, while a TXT gives you an easy switched terminal at the key. Get this wrong on a 4-wire unit and the reducer sits there pulling a small standing current all week, which is exactly how owners come back after a two-week vacation to a stone-dead pack. A quick check with a clamp meter on the reducer input, key off, should read essentially zero milliamps on a properly triggered 5-wire install. If you see any steady draw, the trigger wire is either mis-tapped or you accidentally bought a 4-wire converter.

03 : Sizing Amperage Load So Nothing Overheats

Before purchasing hardware, you must perform a power audit. Most standard LED light kits pull less than 10 Amps, but modern soundbars and high-output underglow can push that requirement much higher. If you are planning an extensive build, a 30-amp unit is a mandatory safety requirement. Operating a reducer at 90% capacity for extended periods will cause thermal runaway, leading to internal component failure. By using universal voltage reducers with a 20% to 30% overhead, you significantly reduce the thermal stress on the internal capacitors.

If you are still mapping out your component list, check out our technical guide database for deeper dives into accessory power draws and wire gauge selection.

A practical way to run the audit is to add up the continuous draws, not the peak surge numbers on the box. A pair of LED light bars might list 8 amps but actually settle around 3 to 4 amps once warm; a modest soundbar at moderate volume rarely pulls more than 5 amps, but a subwoofer amp at full tilt can spike past 20. Size the reducer for the worst-case sum of everything that can run at once, then add the 20 to 30 percent overhead on top. For a lights-and-horn build a genuine 10 to 15 amp unit is plenty; for lights, sound, a windshield wiper, and a 12V fridge you are firmly into 30 amp territory and should consider splitting the load across two reducers so no single unit runs hot. Wire the feed with at least 10 AWG for a 30 amp circuit and fuse it at the reducer output, never rely on the converter’s internal protection alone.

04 : Heat Dissipation and Where to Mount the Unit

Even high-efficiency converters generate heat. To prevent the unit from throttling its output, always mount your universal voltage reducers directly to a metal portion of the golf cart’s chassis. The aluminum frame acts as a massive heat sink, drawing heat away from the transformer’s core. Avoid mounting units in enclosed plastic battery buckets where airflow is non-existent. For further technical discussions on mounting locations, the community at BuggiesGoneWild offers excellent real-world mounting feedback for specific EZGO and Club Car models.

There is one more model-specific quirk that trips people up. On carts with a sealed lithium conversion, the flat aluminum battery tray looks like an ideal mounting plate, but that tray often sits directly above the pack and traps heat during a long charge cycle. A better location on most EZGO and Club Car chassis is the frame rail near the front bumper or the flat plate behind the seat, where moving air actually reaches the housing. Another common failure is the audible whine: cheaper reducers emit a high-pitched coil whine around 15 to 20 kHz that some owners can hear at idle, and mounting the unit hard against a body panel turns that panel into a sounding board. A thin rubber isolation pad between the reducer and the metal, while still bolting the metal base to the frame for heat transfer, kills the buzz without hurting cooling.

05 : What a Clean Reducer Install Does for Resale

From a resale perspective, a clean electrical cabinet is a high-trust indicator. When prospective buyers inspect a used cart, they look for hardware like fuse blocks and reducers to verify that it hasn’t been “hacked” together. A properly installed reducer signals that the owner understands battery maintenance. To compare current market values for carts with professional electrical upgrades, consult high-authority sources like the J.D. Power NADA Guides.
