ADVANCED EV GOLF CART WON'T CHARGE
Advanced EV charging faults usually involve the charger handshake, charge port, pack disconnect, or a BMS that is asleep or refusing charge.

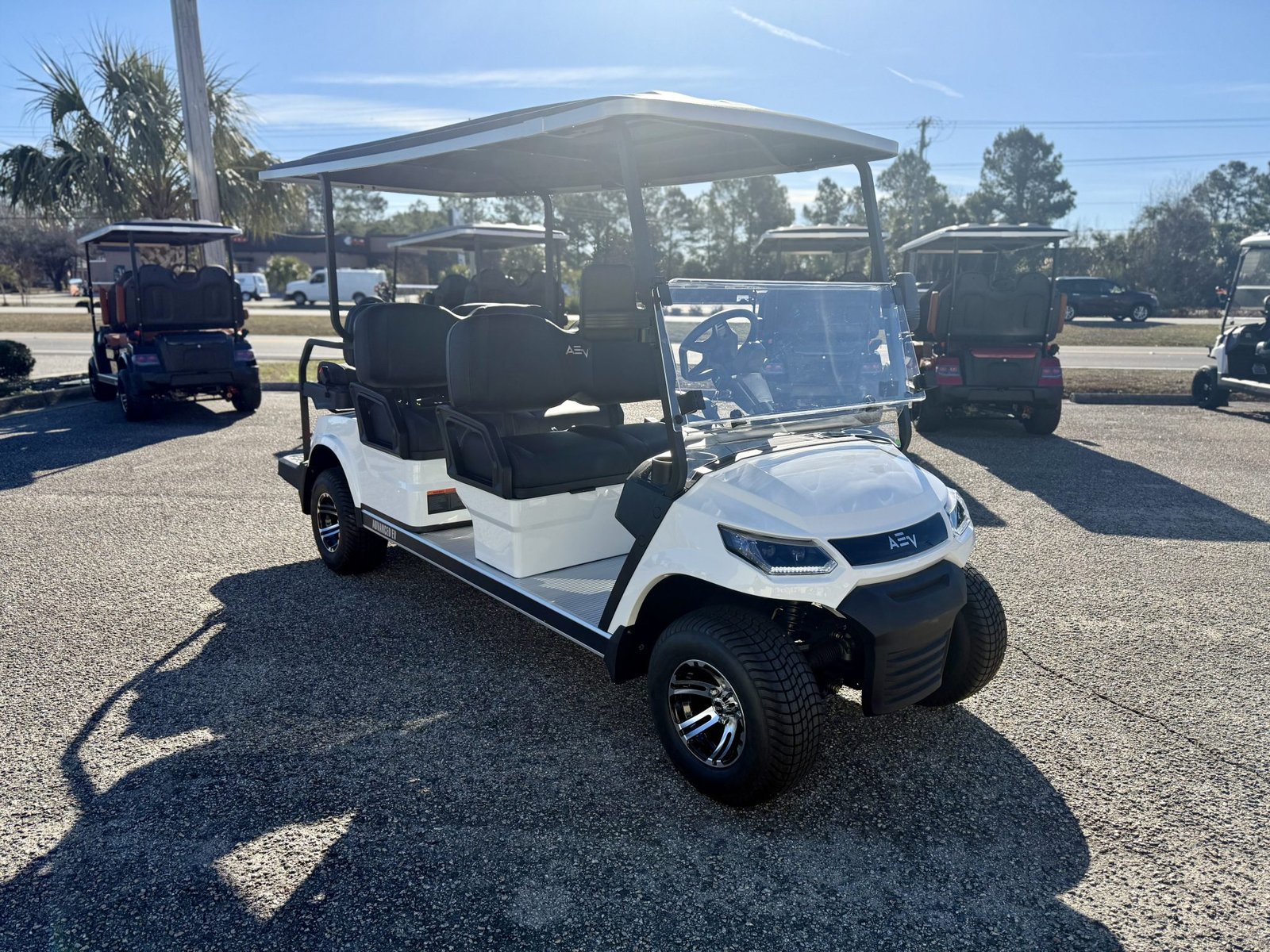

Advanced EV moved to its lithium Advent 4 platform across the 2021 and newer model years, replacing the lead-acid carts that came before, and that change rewrote how charging troubleshooting works. The 48-volt lithium pack ships with an integrated battery management system that controls every charge cycle. The charger does not simply dump current into the pack the way an old Lester or Delta-Q lead-acid unit did. It waits for the BMS to confirm cell voltages are balanced and within the safe window, then opens the charge contactor. If the BMS does not give the green light, the charger sits there looking dead even though it is perfectly healthy.
That handshake is the single most important brand-specific fact on these carts. The number one false replacement we see owners make is buying a new charger when the real problem is a BMS that went to sleep or tripped a protection flag. On the Advanced EV pack, a deep over-discharge, a low-temperature lockout in cold weather, or a single weak cell can all cause the BMS to refuse charge, and none of those are fixed by a new charger.
Advanced EV moved to its lithium Advent 4 platform across the 2021 and newer model years, replacing the lead-acid carts that came before, and that change rewrote how charging troubleshooting works. The 48-volt lithium pack ships with an integrated battery management system that controls every charge cycle. The charger does not simply dump current into the pack the way an old Lester or Delta-Q lead-acid unit did. It waits for the BMS to confirm cell voltages are balanced and within the safe window, then opens the charge contactor. If the BMS does not give the green light, the charger sits there looking dead even though it is perfectly healthy.
That handshake is the single most important brand-specific fact on these carts. The number one false replacement we see owners make is buying a new charger when the real problem is a BMS that went to sleep or tripped a protection flag. On the Advanced EV pack, a deep over-discharge, a low-temperature lockout in cold weather, or a single weak cell can all cause the BMS to refuse charge, and none of those are fixed by a new charger.
01 : Confirm the charger actually starts
Test the outlet first, then plug into the cart and watch the charger lights. Note whether the charger stays off, flashes, starts then stops, or turns green too soon.
- Outlet: Confirm AC power with another device.
- Correct charger: Match voltage, chemistry, and connector.
- Timing: Some lithium chargers need a short handshake delay.
02 : Check the receptacle and pins
The charge receptacle can collect water and dirt. Bent pins, corrosion, loose mounting, or heat marks can block the handshake.
Advanced EV carts use a standard SAE-style charge connector mounted low on the body, which means it is directly in the line of fire for puddles, sprinklers, and car-wash spray. Because the lithium handshake relies on clean low-current signal pins as well as the heavy charge pins, even light green corrosion on a signal contact can stop charging entirely while the cart otherwise runs fine. This is different from a lead-acid cart, where a dirty port usually just slows the charge rather than blocking it outright.
| Finding | Meaning | Action |
|---|---|---|
| Bent pin | Poor charger contact | Repair or replace port |
| Green corrosion | Moisture exposure | Clean and protect contacts |
| Hot smell | Loose high current contact | Stop charging and replace damaged parts |
03 : Wake a sleeping lithium pack
If the cart sat unused, turn the disconnect off, wait, turn it on, and plug in the correct charger. If the pack will not wake and the cart is also dead, use the no power guide.
The main disconnect on these carts is your most useful tool for a sleeping pack. Cycling it forces the BMS to re-evaluate the cells from a clean state, and on a pack that simply went dormant after weeks of storage, that single off-on cycle is often all it takes to restore charging. Give it a full thirty seconds in the off position so the internal capacitors bleed down before you flip it back on. If the cart has been sitting all winter, expect to repeat the cycle once or twice while the BMS works through its wake routine.
If cycling the disconnect does nothing and the pack voltage reads far below the roughly 48 to 54 volt operating band, the BMS may have latched into a hard protection state to guard the cells. That is a deliberate lithium safety feature, not a glitch. A pack that has been drained flat and left that way can need a dealer-level reset or, in the worst case, individual cell recovery, which is why catching a no-charge fault early matters so much on this platform.
04 : Take readings before buying anything
- Pack output: Check battery voltage with the disconnect on.
- Port wiring: Inspect the receptacle harness and ground path.
- Charger behavior: Many lithium chargers show no output until connected to a valid pack.
- BMS fault: Battery warnings belong with the battery-problem guide.
05 : What it usually comes down to
Most Advanced EV no-charge faults are charger handshake, port, disconnect, or BMS wake problems. Prove the outlet, port, and pack state before buying a charger.
The practical order that saves the most money on an Advanced EV is simple. Confirm the wall outlet, confirm the charge port is clean and tight, then cycle the disconnect to rule out a sleeping BMS, and only then start questioning the charger itself. Nine times out of ten the fix lives in the first three steps, and the charger that looked dead turns out to have been waiting on a handshake the whole time. Replacing the charger first is the most expensive way to learn that lesson on a lithium cart.
Related Diagnostics
Stay inside the same brand cluster so model assumptions remain consistent. Use the Advanced EV Hub for model context, or run the golf cart troubleshooter if you want a symptom-first path.
FAQ
Why won't my Advanced EV golf cart charge?
Common causes are a dead outlet, wrong charger, damaged charge port, open disconnect, sleeping BMS, low pack voltage, or battery fault.
Why does my Advanced EV charger turn green right away?
The charger may not be seeing the pack correctly, the battery may be full, or the BMS may be refusing charge. Check the charge port and pack voltage.
Can I use any lithium charger on a Advanced EV?
No. Use a charger matched to the pack voltage, chemistry, connector, and BMS requirements.
