ADVANCED EV GOLF CART SLOW ON HILLS
Hills reveal current limits. If a Advanced EV slows or cuts back on climbs, diagnose battery sag, heat, tire setup, brake drag, and load.
01 : Start with full charge and tires
Do hill testing on a full pack with normal tire pressure. Low tires and low state of charge can mimic a failing drivetrain.
- Full charge: Makes voltage sag easier to interpret.
- Tire pressure: Low pressure adds load and heat.
- Load: Extra passengers can trigger current limits.
02 : Hill symptom table
| Symptom | Likely Cause | First Fix |
|---|---|---|
| Slows gradually | Load, tires, low charge | Charge and inflate |
| Cuts suddenly | BMS or heat limit | Cool down and check warnings |
| Hot smell | Cable, brake, motor, controller | Inspect heat source |
| Worse after tires | Effective gearing too tall | Review tire size |
03 : Brake drag and tire size
A dragging brake can hide on flat ground and become obvious on hills. Compare wheel heat after a short drive. If hill power dropped after taller tires, the drivetrain may be over-geared for the load.
04 : Voltage sag and heat
- Voltage sag: A big drop under load points to battery or connection resistance.
- Heat: If power returns after cooling, the cart was protecting itself.
- Warnings: Match battery or temperature icons in the error code guide.
- Limp mode: If it stays slow afterward, use the reduced speed guide.
05 : Bottom line
A Advanced EV that loses hill power is usually hitting a current, heat, or load limit. Charge, remove drag, verify tires, then test for voltage sag before condemning the motor.
06 : Why Advanced EV hill loss is a current story
The Advent and Advent 4 platforms from roughly 2020 forward run a 48V or 72V lithium pack driving an AC motor, and a climb is the one demand that asks that system for everything it has. On flat pavement the cart never approaches its discharge ceiling, so a tired pack, a resistive lug, or a warm controller stays invisible. Send that same cart up a grade with passengers and every weak point surfaces together. That is exactly why hills are the best place to catch voltage sag on these carts. A large voltage drop the instant the grade steepens is the pack or a high-current joint giving up, not the motor quitting on you.
Because Advanced EV builds so many street-legal LSVs, these carts often carry the extra weight of DOT bumpers, real lighting, and sometimes an enclosure, all of which raise the load the drivetrain fights on a hill. That added curb weight is easy to forget. A cart that climbed fine as a bare course model can genuinely struggle once it is built out as a neighborhood vehicle, and no part has failed. Factor the real loaded weight into your expectations before you start swapping components.
07 : Tires, lifts, and dragging brakes

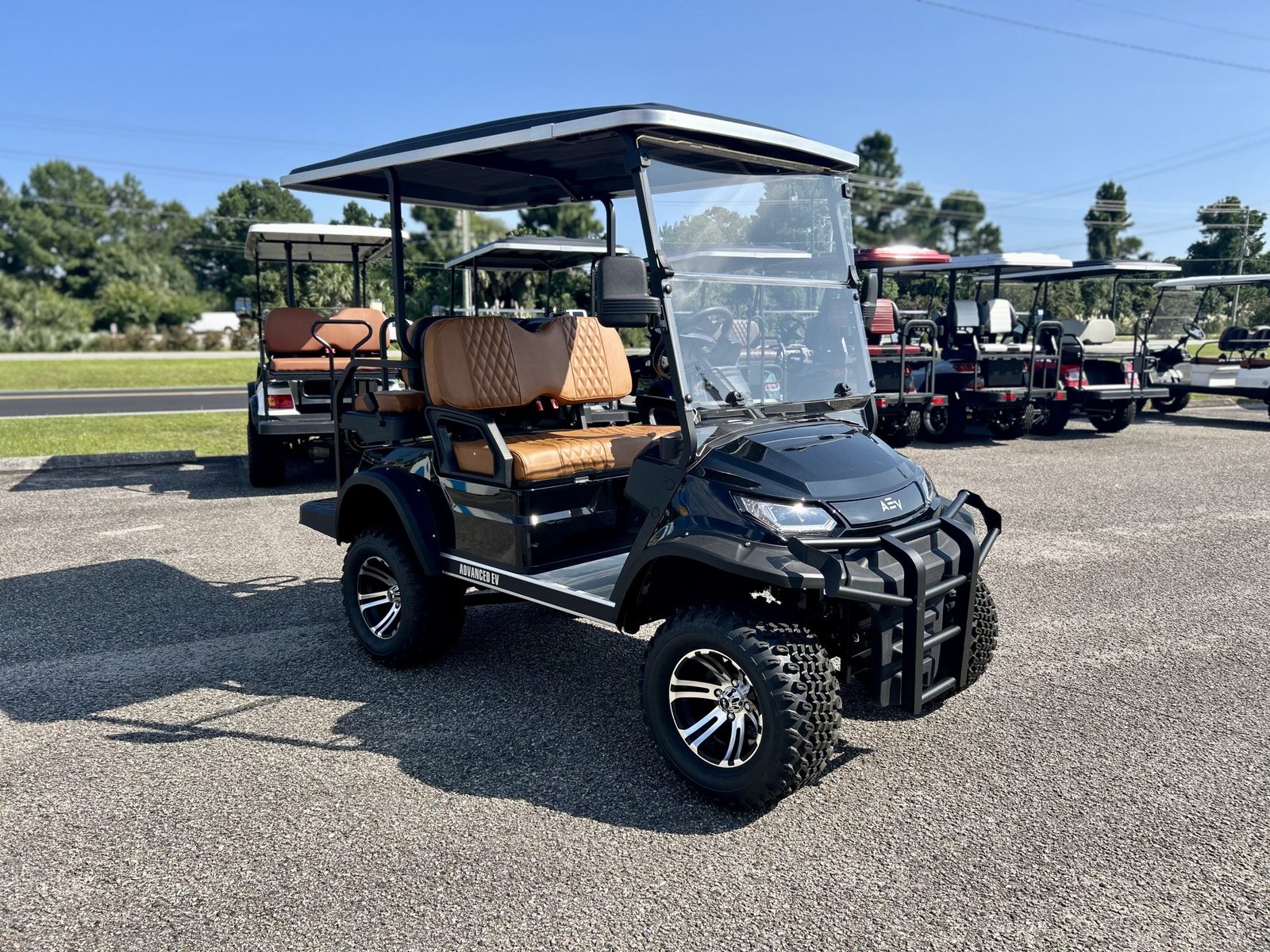

Lifted, big-tire Advanced EV builds are common, and this is where a lot of hill complaints begin. A taller tire raises effective gearing, trading climbing torque for a bit of flat-ground speed. If the cart pulled hills fine and then went weak right after a lift and oversized tires, it is over-geared for the load, not broken. Add a couple of passengers to an already over-geared cart and the controller will start hitting current limits on grades it used to climb without a thought.
Brake drag hides well on these carts. A rear shoe set a touch tight or a parking brake that does not fully release drags quietly on the flat and becomes a real thief on a climb. After a short drive, compare hub temperature at each wheel. One hub noticeably hotter than the rest points straight at a dragging brake eating the torque you need for the grade. Fixing that one adjustment often restores hill power that owners were about to blame on the motor or controller.
08 : Reading protection events
If your Advanced EV cuts power abruptly on a hill instead of fading, that is usually a protection event rather than a slow drain. The BMS watches pack current and temperature, and when a climb pushes either past its limit it drops the discharge ceiling hard, which the controller feels as a sharp cutback. Let the cart cool, check the dash for battery or temperature icons, and match them against the error code guide. If the cart stays slow after cooling, the issue has crossed from a momentary hill limit into full reduced-speed territory and belongs in the limp mode guide instead.
Run one repeatable baseline before you spend a dollar on parts. Full pack, correct tire pressure, one driver, the same hill every time, and note where the cart begins to fade and whether it fades gradually or cuts hard. That single controlled test is worth more than a week of random drives, because it gives you a clean before-and-after to prove whether any fix you make actually changed the cart or not.
Related Diagnostics
Stay inside the same brand cluster so model assumptions remain consistent. Use the Advanced EV Hub for model context, or run the golf cart troubleshooter if you want a symptom-first path.
FAQ
Why does my Advanced EV lose power on hills?
Common causes are low charge, voltage sag, BMS current limit, controller heat, tire pressure, big tires, heavy load, or brake drag.
Can oversized tires make a Advanced EV slow uphill?
Yes. Taller tires raise effective gearing and reduce climbing torque, especially with passengers or a lift.
Why does my Advanced EV cut out on hills?
A sudden cutout usually points to BMS current protection, voltage sag, heat protection, or a loose high current connection.
