What Is an Alltrax Controller?
An Alltrax controller is a popular aftermarket motor controller upgrade for electric golf carts. Here is exactly what it does, which carts it fits, and the supporting parts you need so the extra current is safe.

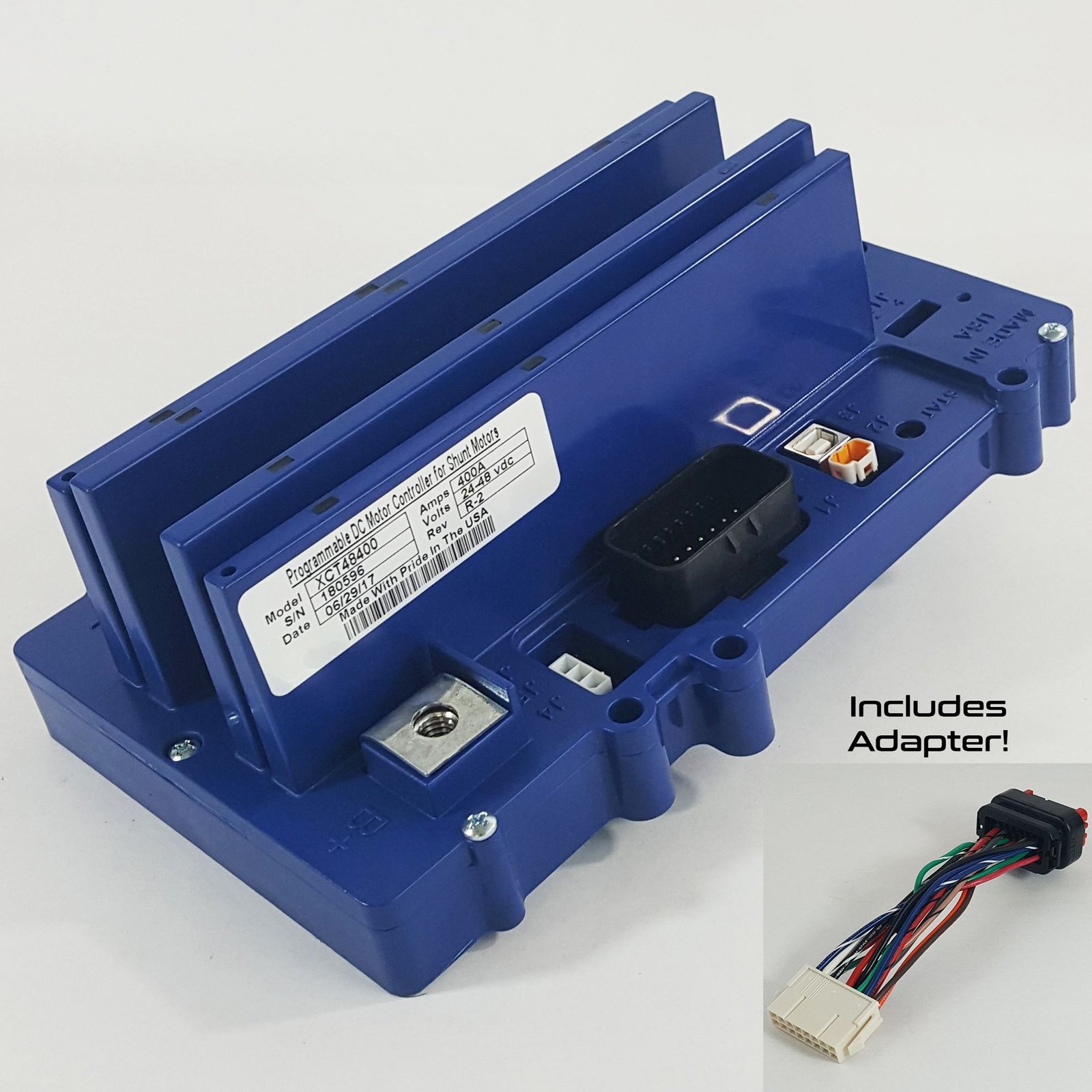

An Alltrax controller is an aftermarket electronic speed controller (ESC) that replaces your golf cart’s factory motor controller. It regulates how much current flows from the batteries to the motor, and because Alltrax units allow higher current and are programmable, they deliver more torque, faster acceleration, and often a higher top speed than the stock controller. They are a popular bolt-on upgrade for EZGO, Club Car, and Yamaha electric carts.
01 : How the Controller Runs Your Drive Motor
The controller is the power valve between the battery pack and drive motor. Pedal input asks for torque; the controller switches battery current into the armature and, on a separately excited system, manages the field circuit too. Voltage, motor type, throttle signal, and current rating all have to match. A controller with a higher current limit can improve launch and hill torque only when the battery, cables, contactor, motor, and cooling path can support that load.
There is no safe universal “stock controller amperage” for every TXT, DS, or Yamaha. Read the controller label and the vehicle service manual. The model number identifies the electrical family; a larger current number is not permission to exceed the motor vendor’s thermal limit.
02 : Why Owners Pick Alltrax Over the Stock Unit
Alltrax supplies programmable replacements for several series and shunt DC platforms. Programming is useful for setting current limits, throttle response, speed behavior, and protection values that the selected family exposes. It does not make unlike drive systems interchangeable. A series motor needs a series controller, a shunt motor needs a compatible shunt controller and vehicle map, and an AC motor needs an inverter built for that motor and feedback system.
Diagnostics are another advantage. Status LEDs and the correct software can distinguish throttle, voltage, temperature, and wiring faults before a controller is condemned. Use the family-specific program below: the older DCX uses Controller Pro through an RS-232 connection, while SR, SPM, and XCT use the newer toolkit path. Bluetooth is documented for XCT through the optional module, not as a blanket feature on every Alltrax controller.
03 : Which Carts the SR and DCX Models Fit
Decode the complete part number before buying. Family, maximum voltage, current limit, throttle type, vehicle map, and connector arrangement matter more than the logo.
| Alltrax family | Supported system voltage | Published peak current limit | Programming method | Drive-system fit |
|---|---|---|---|---|
| SR | 12-48V SR48 or 12-72V SR72 | 300A, 400A, 500A, or 600A model | USB with Alltrax Toolkit | Series-wound DC motor systems; exact vehicle adapter and throttle map must match. |
| SPM | 24-48V or 24-72V model groups | SPM48: 200A to 800A. SPM72: 200A to 650A, by model. | USB with Alltrax Toolkit | Series and permanent-magnet applications listed by Alltrax; confirm exact suffix and application. |
| DCX | 24-48V nominal, 60V maximum | 300A, 400A, 500A, or 600A model | Controller Pro via RS-232; a serial-to-USB adapter may be used. | Legacy shunt or separately excited DC applications. Vehicle map and throttle type are required. |
| XCT | 36V or 48V | 300A, 400A, or 500A model | USB with Toolkit; optional Bluetooth module is documented for XCT. | Direct-connect shunt families including listed Club Car, E-Z-GO, and Yamaha applications. Confirm by serial. |
SR and SPM are the series-drive choices in this comparison. DCX and XCT are shunt-controller families, with XCT offering the more direct vehicle-specific connector options. None is a drop-in controller for an RXV AC motor.
04 : Supporting Parts You Upgrade Alongside It
A higher-current controller raises the demand on the entire power path. Alltrax’s system-components guidance calls for checking the contactor, forward/reverse hardware where fitted, precharge parts, battery cables, and connections. Its controller application note also warns that a non-stock 400A system can require upgrades beyond the controller. This is why overheated lugs or a welded contactor are system-sizing failures, not proof that the new controller is defective. Related failure isolation is collected in the golf cart repair guides.
Do not choose a cable gauge or contactor from controller peak amps alone. Use the Alltrax installation drawing, cable length, duty cycle, motor vendor limit, and the contactor maker’s continuous and interrupt ratings. Do not assume a throttle or speed sensor is compatible either. Select the exact vehicle map and verify the signal type before power-up.
After installation, begin with conservative motor and battery limits, verify direction and throttle range with the wheels safely supported, and log temperatures under the real hill or load. That measured commissioning step is safer than copying another cart’s tune.
Frequently Asked Questions
What is an Alltrax controller?
An Alltrax controller is an aftermarket programmable DC motor controller that replaces your golf cart factory unit, allowing higher current for more torque, faster acceleration, and often a higher top speed.
Does an Alltrax controller make a golf cart faster?
Yes. By raising the current ceiling and letting you tune the throttle and speed settings, an Alltrax unit delivers stronger acceleration and usually a higher top speed than a conservative stock controller.
What else do I need to install with an Alltrax controller?
Plan for heavy-duty battery cables, a solenoid rated above the new amp draw, fresh lugs, and the correct throttle type, because pushing more current through stock wiring risks overheating.
Does Alltrax fit AC motors?
Most Alltrax units are built for series-wound DC motor systems. AC-drive carts such as the E-Z-GO RXV need a different controller solution, so match the unit to your motor type.
Lab Verdict: An Alltrax controller is an aftermarket, often programmable motor controller that replaces the factory unit to deliver more torque, faster acceleration, and higher top speed on series-DC EZGO, Club Car, and Yamaha carts. Match it to your voltage and motor type, and upgrade cables and the solenoid to handle the added current safely.
Updated July 2026: added a verified Alltrax model-lineup table (SR, SPM, DCX, XCT families) with voltage and peak-amp ranges.
