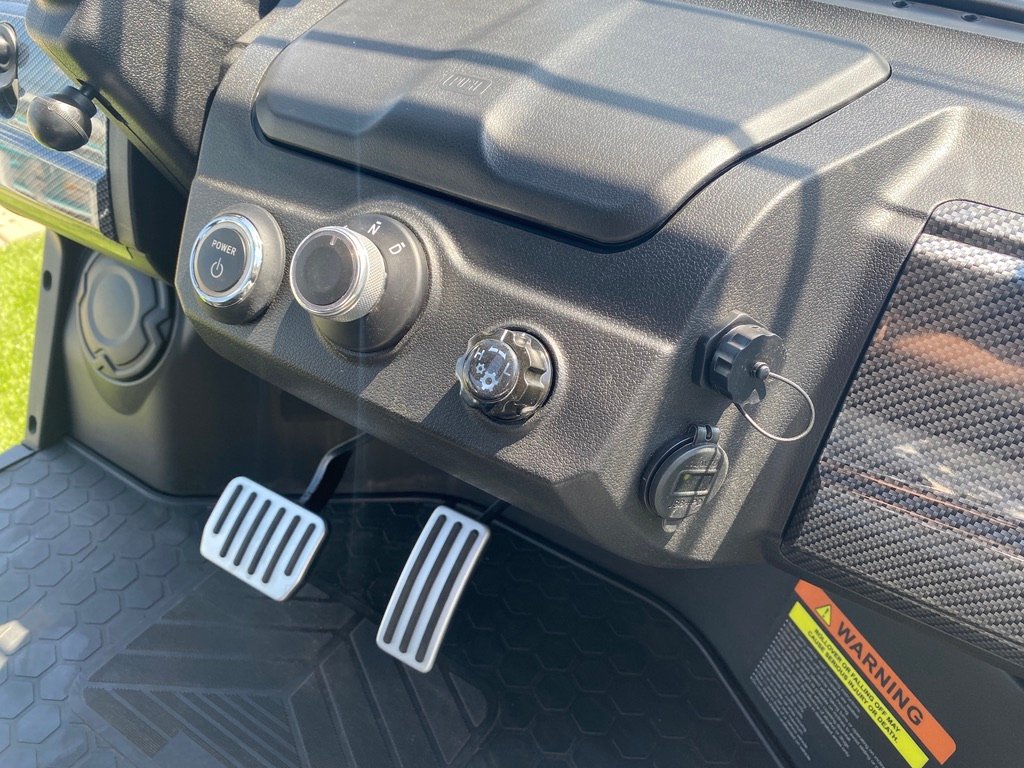

EVOLUTION GOLF CART WON'T TURN ON
A totally dead Evolution usually has a sleeping lithium pack, open main disconnect, failed fuse, bad key feed, or a low voltage accessory fault.
01 : Start At The Main Battery Switch
A completely dead Evolution (Classic 4 Plus, Forester, D5, EV2.5, model years roughly 2021 onward) almost always comes down to one thing: the pack is not connected to the cart. These lithium carts have a main battery disconnect switch, and the LiFePO4 BMS can also open the pack internally if it has gone into low-voltage protection. Start at the disconnect switch and confirm it is fully ON. Then remember that unlike a lead-acid cart, an Evolution can read “no power” simply because the BMS has put the pack to sleep after a deep discharge, and no amount of key-turning will wake it until the pack is charged or the BMS is re-woken.
Evolution carts normally have a battery disconnect or service switch near the lithium pack. Make sure it is fully on. A half-seated switch can run accessories one moment and go dark the next after a bump.
- Main disconnect: Turn it off, wait ten seconds, then turn it fully on.
- Pack display: If the battery has its own indicator, verify it wakes before testing downstream circuits.
- Main lugs: Look for loose, hot, or corroded battery cable connections.
02 : Measure Pack Voltage And Charger Response
Set the meter to DC volts and measure at the pack output. If you see no pack voltage, the BMS may be asleep or the internal protection is open. Connect the correct charger and confirm whether charging begins. If the charger never starts, move to the charging diagnosis before opening the dash.
| Reading | Meaning | Next Step |
|---|---|---|
| Normal pack voltage | Battery is awake | Test fuse, converter, key feed |
| Very low voltage | Deep discharge possible | Charge and let BMS wake |
| Zero at output | BMS open or disconnect open | Reset disconnect and charger wake |
03 : Main Fuse And The 12V Converter
Everything on the dash (the display, the key circuit, the horn, the lights) runs off 12V, not the full 48V pack. Evolution carts use a 48V-to-12V converter to feed that accessory bus, and if it fails the pack can be perfectly healthy while the whole cart looks dead. Check the main pack fuse or breaker first (a blown maxi-fuse between pack and controller kills everything), then measure the converter output: you should read about 12 to 14V on the 12V bus with the disconnect on. No 12V output there means a failed converter or a blown converter fuse, which is a common and inexpensive dead-cart cause that people mistake for a bad controller or battery.
Street legal Evolution carts feed lights, horn, dash, and accessories through a converter and fuse block. If pack voltage is good but the dash is dark, check the main fuse and converter feed. A blown accessory fuse can make the cart look worse than it is.
Probe for pack voltage into the converter, then 12 to 13 volts out. If voltage enters but does not leave, the converter or its ground is suspect. If nothing enters, work backward to the fuse and main harness connection.
04 : Key Switch And Dash Power Feed
If the pack is connected and 12V is present but the cart still will not wake, trace the key switch and its feed. Turn the key and listen for the main contactor to click; no click means either the key circuit is open or the controller is not getting its enable signal. Back-probe the key switch output for 12V when turned on. A corroded key switch, a chafed harness wire, or a loose ground under the seat can all leave the dash dark. The Evolution-specific quirk here is water intrusion: these carts sit low and the under-seat wiring and connectors are exposed to wash-downs and rain, so green corrosion on a connector or a ground lug is a frequent no-power cause. Unplug, clean, and dielectric-grease suspect connectors before condemning the controller.
Work the chain in order (disconnect switch, main fuse, 12V converter, key switch, contactor) and you will find the dead spot without throwing parts at it. The vast majority of “my Evolution is completely dead” cases end at a sleeping BMS, a blown converter fuse, or a corroded ground, none of which need a dealer.
- Key input: With the disconnect on, one side of the key switch should have voltage.
- Key output: Turn the key on. The output side should now show voltage.
- Dash connector: If key output exists but the dash is dark, inspect the dash plug and ground.
- Controller wake: Only after key and dash power are proven should you suspect controller wake wiring.
If the cart wakes but still will not drive, continue with the Evolution no movement guide.
05 : Bottom Line
A dead Evolution should be diagnosed from battery outward: disconnect, BMS, pack voltage, charger wake, main fuse, converter, key switch, then dash feed. Most no power faults live before the controller, especially after storage, rain exposure, or an accessory wiring change.
Related Evolution Diagnostics
Keep the diagnosis in the Evolution cluster so model assumptions stay consistent. The Evolution brand hub tracks the model lineup, and the golf cart troubleshooter can walk you symptom by symptom.
Evolution FAQ
Why is my Evolution golf cart completely dead?
The usual causes are the main disconnect, a sleeping lithium BMS, low pack voltage, blown main fuse, failed converter, or a bad key switch feed.
How do I wake an Evolution lithium battery?
Use the correct charger, make sure the main disconnect is on, and let the charger sit long enough for the BMS to wake. If it will not start charging, diagnose the charger and receptacle.
Can a bad key switch make an Evolution look dead?
Yes. If pack and converter voltage are present but no voltage leaves the key switch with the key on, the dash and controller may stay off.
