EVOLUTION GOLF CART ERROR CODES
Evolution fault icons and controller warnings are clues. Read the state of charge, dash message, beeps, and behavior together before clearing anything.
01 : Record The Code Before Cycling Power

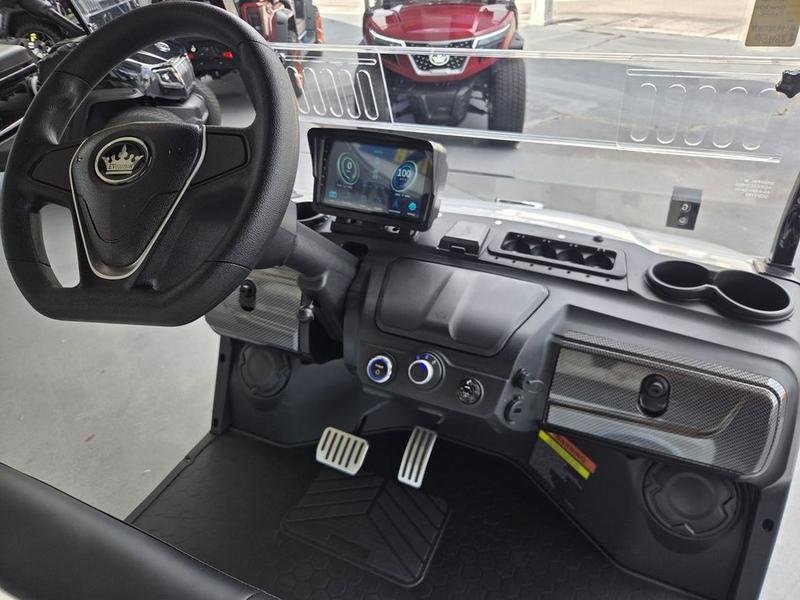

Evolution carts (Classic 4 Plus, Forester, D5 Ranger, EV2.5, built roughly 2021 onward) surface faults a few different ways depending on the model and dash. Newer units with the color touchscreen dash show a written alert or a numbered code; base models flash a warning light or beep. Whatever your cart does, write down the exact code, the flash pattern, and what the cart was doing when it appeared BEFORE you cycle the key, because many faults clear themselves on a power cycle and you lose the evidence. Note whether the cart still drives, still charges, and whether the code is steady or intermittent.
Take a photo of the dash and write down the conditions: key on, driving, charging, climbing a hill, or after rain. A code that appears only during charging should not be diagnosed like a code that appears under throttle.
- Photo first: Capture the exact icon, number, or wording before it disappears.
- Timing matters: Codes at startup often differ from codes under load.
- One key cycle: Cycle the key once after recording. If the code returns, treat it as active.
02 : Map The Warning To A Subsystem
Evolution dashboards vary by year and trim, but most warnings fall into the same buckets. Use the symptom with the warning rather than relying on the icon alone.
| Warning Type | Common Meaning | Start Here |
|---|---|---|
| Battery or SOC | Low pack, BMS limit, imbalance | Charge fully and check pack voltage |
| Charger | Port or charger handshake fault | Inspect charger and receptacle |
| Throttle or brake | Input out of range or stuck switch | Check pedal and brake switches |
| Temperature | Controller, motor, or battery heat | Cool down and inspect load conditions |
03 : Reading Battery And Charger Faults
Because Evolution runs a LiFePO4 pack with an integrated BMS, a large share of codes originate there rather than in the motor. Common battery-side faults include cell over-voltage or under-voltage (one cell group drifting outside about 2.5 to 3.65V per cell), over-temperature during charge or heavy discharge, and communication loss between the BMS and the dash or charger. On the charge side, an Evolution will flag a fault if the charger handshake fails or the charge port pins are corroded. The practical move: if a code appears only while charging, suspect the charger, port, or a BMS charge limit; if it appears only while driving under load, suspect the throttle, motor sensor, or a sagging cell group.
Battery warnings are common after storage, deep discharge, charger mismatch, or a long climb that makes voltage sag. Charge the pack completely, then retest. If the same battery warning returns on a full pack, inspect the battery connections and continue with the Evolution battery problem guide.
Charger warnings belong with the Evolution charging diagnosis. A dirty charge port or sleeping BMS can trigger a warning without the charger itself being bad.
04 : Drive And Reduced Speed Codes
Drive-side codes on an Evolution usually map to the throttle sensor, the motor speed/encoder sensor, the main contactor, or a controller over-temperature limit. A code paired with a hard speed cap that survives a full charge is almost always the throttle signal (a 0 to 5V Hall sensor) or the encoder connector at the motor corroding. Back-probe and inspect those first, since they are far cheaper than a controller.
- Throttle: Make sure the pedal returns fully and the sensor connector is seated.
- Brake: Verify the parking brake and brake switch are not stuck in the applied state.
- Speed sensor: If the cart drives slowly or surges, inspect the motor speed sensor wiring.
- Heat: Let the cart cool if the fault came after hills, heavy passengers, or low tire pressure.
If the code comes with limp mode, use the Evolution reduced speed guide to work through the likely causes.
05 : Bottom Line
The Evolution quirk to remember: a huge fraction of “error codes” on these carts are BMS communication or balance faults that clear after one full, uninterrupted charge. Leaving the cart on the charger a few extra hours past the full indication lets the BMS top-balance the cells, and codes tied to a single weak group often vanish. If a code returns immediately after a full charge and balance, only then is it worth escalating to Evolution support with the exact code recorded. Keep a photo log of the code and conditions; the dealer network will ask for it, and an intermittent code you cannot reproduce is far harder to warranty.
Evolution error codes are most useful when you capture them with the symptom. Record the warning, identify the system, test that circuit, then clear the code only after the fault is gone. A returning code is a live diagnostic clue, not a nuisance to ignore.
Related Evolution Diagnostics
Keep the diagnosis in the Evolution cluster so model assumptions stay consistent. The Evolution brand hub tracks the model lineup, and the golf cart troubleshooter can walk you symptom by symptom.
Evolution FAQ
How do I read Evolution golf cart error codes?
Record the dash icon, number, or message and note when it appears. Use the warning type to choose the battery, charger, throttle, brake, speed sensor, or temperature circuit to test first.
Will cycling the key clear an Evolution error code?
A key cycle may clear a temporary warning. If the code returns, the fault is still active or stored and should be diagnosed.
Why does my Evolution show an error and slow down?
The controller or BMS may be protecting the cart from low voltage, heat, throttle input error, brake switch error, or speed sensor data loss.
