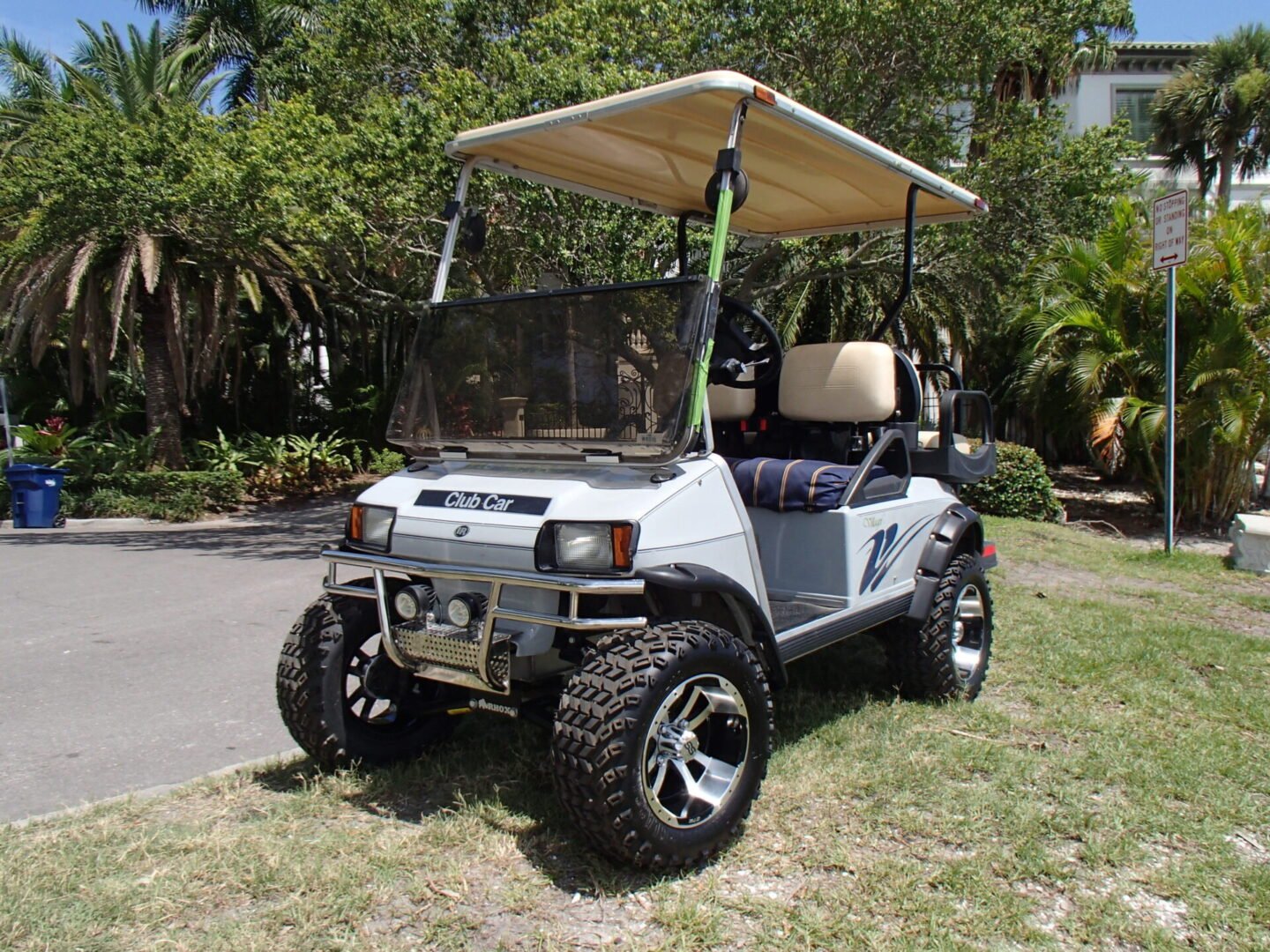

CLUB CAR DS WON’T GO FORWARD OR REVERSE

01 : Start Here: Confirm You Have Power

Before you chase the drive circuit, rule out the simplest causes. A DS that is completely dead, no lights, no key-on tone, has a power problem, not a drive problem. A DS that has accessories but no movement is the classic “power in, nothing out” pattern this guide solves.

• Pack voltage: A 48V DS should read ~50.9V fully charged at the pack; a 36V cart ~38.2V. Anything under 46V (48V) or 34V (36V) means charge or service the batteries first, low voltage mimics drive faults.
• Battery connections: Wiggle every cable lug. A single loose or corroded inter-battery connector can drop enough voltage under load to stop the cart while lights still work.
• Main fuse / breaker: Many DS carts have an inline fuse or a reset breaker. A tripped breaker is a 10-second fix that gets mistaken for a dead controller every day.

02 : Why a Club Car DS Won’t Go Forward or Reverse

The DS drive circuit is a chain: battery → key switch → forward/reverse switch → controller → solenoid → motor. The cart only moves when every link passes current. Break any one link and you get the exact same symptom, a cart that sits still in both directions. That is why “it won’t move” feels mysterious: a dozen different parts produce one identical result.

The good news is that the chain is also the diagnostic map. By testing for voltage at each junction in order, you find the precise point where power stops. Whatever sits just past that point is your faulty component. A symptom-first walkthrough like our interactive golf cart troubleshooter follows this same logic if you prefer to be guided question by question.

03 : Step-by-Step Diagnosis (Fastest Order)

Set your multimeter to DC volts. Lift the rear wheels off the ground or jack the cart safely so it can’t lurch. Then work the chain:

1. Key switch output. Probe the small wire leaving the key switch with the key ON. No voltage out (but voltage in) = bad key switch.
2. F/R switch. With voltage reaching the F/R switch, select Forward and check for output on the forward wire, then Reverse. Dead in one direction only is a textbook F/R switch fault.
3. Micro-switch / pedal. On many DS carts the accelerator closes a micro-switch that energizes the solenoid. Press the pedal and listen, you should hear the solenoid click.
4. Solenoid. No click means the coil isn’t being energized (look upstream) or the coil is dead. A click with no movement means burnt contacts, see section 05.
5. Controller. If voltage reaches the controller but never leaves toward the solenoid/motor, and everything upstream tests good, the controller is the prime suspect.

This is the same disciplined, measure-don’t-guess approach we use when deciding whether parts even swap between carts, see whether golf cart motors are interchangeable before you buy a replacement motor you may not need.

04 : The Forward/Reverse Switch: The #1 DS Culprit

On the Club Car DS, the forward/reverse switch (often the rocker or the rotary switch tied to the F/R handle) is the single most common reason the cart moves one way but not the other, or not at all. The internal contacts arc every time you change direction, and over years they pit and burn.

Pull the switch cover and inspect the copper contacts. Black, pitted, or carbon-glazed contacts cause intermittent or no power transfer. Light pitting can be cleaned with fine emery; heavy burning means replace the switch assembly. Always verify with the meter: full pack voltage in, near-zero out on the selected direction confirms the switch is the break in the chain.

05 : Solenoid and Controller: When It Clicks But Won’t Move

If you hear a firm click but the DS still won’t move, you’ve narrowed it to two parts. Test the solenoid first because it’s cheaper and fails more often. With the pedal pressed and the solenoid engaged, measure across the two large solenoid terminals: it should read close to 0V (the contacts are closed and passing current). A reading of several volts across engaged contacts means the contacts are burnt and the solenoid is bad.

If the solenoid passes that test and full voltage reaches the controller but the motor stays dead, the controller is the likely failure, especially if it runs hot or shows no output. Controllers are the most expensive link, which is exactly why you test them last, only after clearing the cheaper suspects. For a deeper look at high-current switching parts, our guide to the 400 amp solenoid upgrade for 36V vs 48V carts explains how contact rating affects reliability.

Club Car’s own charging and computer systems can also gate the drive circuit on certain models; if you’ve been chasing electrical gremlins, our Club Car OBC bypass guide covers a related quirk worth ruling out. For the manufacturer’s wiring references and model identification, Club Car’s official owner manuals and support library lists diagrams by year.

06 : Bottom Line

A Club Car DS that won’t go forward or reverse is a chain-break problem, not a mystery. Confirm pack voltage and the main fuse, then walk the circuit from key switch to F/R switch to solenoid to controller, stopping at the first junction where voltage disappears. Nine times out of ten you’ll land on the forward/reverse switch or the solenoid, both inexpensive, both DIY-replaceable in an afternoon. Test in order, replace only what the meter condemns, and you’ll have the DS rolling again without throwing money at parts it never needed.
